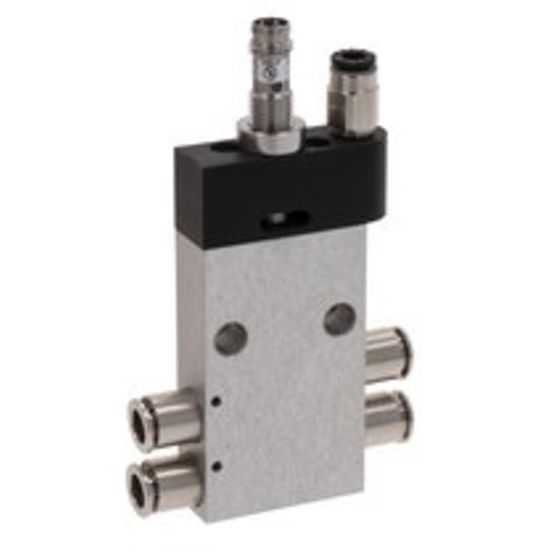

Representative photo. Please check item description for details.
AVENTICS AV Series Shut-Off Module, Electric Spool Valve, Positive Overlapping, 10-30 VDC, Port 2/4 Ø 8
Features
- Activation: Electrically
- Control pressure min.: 3.5 bar
- Control pressure max.: 7 bar
- Operating voltage DC, min.: 10 V DC
- Operating voltage DC, max.: 30 V DC
- Type sensor: PNP
- Sensor connection: M8x1
- Voltage drop U at Imax: ≤ 2,5 V
- Protection class sensor: IP65
- Operational voltage pilot valve: 24 V DC
- Voltage tolerance DC: -10% / +10%
- Power consumption: 1.3 W
- Display: LED: Yellow
- Protection class pilot valve: IP67
- Compressed air connection type input: push-in fitting
- Nominal flow Qn: 400 l/min
- Type: Spool valve, positive overlapping
- Port 2 / 4: Ø 8
- Compressed air connection 12 (Exhaust): Ø 4
- Working pressure min.: 0 bar
- Working pressure max: 10 bar
- Min. ambient temperature: 0 °C
- Max. ambient temperature: 50 °C
- Min. medium temperature: 0 °C
- Max. medium temperature: 50 °C:
