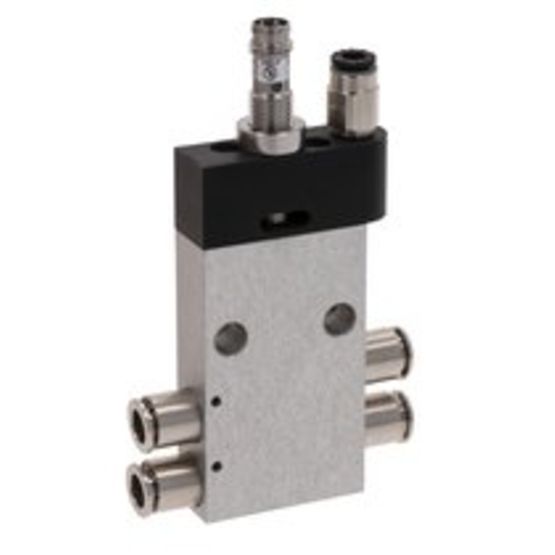

Representative photo. Please check item description for details.
AVENTICS AV Series Shut-Off Module, Pneumatic, 10-30 VDC, Aluminum, Port 2/4 Ø 6
Features
- Activation: Pneumatically
- Operating voltage DC, min.: 10 V DC
- Operating voltage DC, max.: 30 V DC
- Type sensor: PNP
- Sensor current consumption max.: 15 A
- Voltage drop U at Imax: ≤ 2,5 V
- Protection class sensor: IP67
- Compressed air connection type input: push-in fitting
- Nominal flow Qn: 400 l/min
- Port 2 / 4: Ø 6
- Working pressure min.: 0 bar
- Working pressure max: 10 bar
- Min. ambient temperature: 0 °C
- Max. ambient temperature: 60 °C
- Min. medium temperature: 0 °C
- Max. medium temperature: 60 °C
- Medium: Compressed air
- Weight: 0.1 kg
- Housing material: Aluminum
- Seal material: Nitrile butadiene rubber:
Features
- Activation: Pneumatically
- Operating voltage DC, min.: 10 V DC
- Operating voltage DC, max.: 30 V DC
- Type sensor: PNP
- Sensor current consumption max.: 15 A
- Voltage drop U at Imax: ≤ 2,5 V
- Protection class sensor: IP67
- Compressed air connection type input: push-in fitting
- Nominal flow Qn: 400 l/min
- Port 2 / 4: Ø 6
- Working pressure min.: 0 bar
- Working pressure max: 10 bar
- Min. ambient temperature: 0 °C
- Max. ambient temperature: 60 °C
- Min. medium temperature: 0 °C
- Max. medium temperature: 60 °C
- Medium: Compressed air
- Weight: 0.1 kg
- Housing material: Aluminum
- Seal material: Nitrile butadiene rubber:
