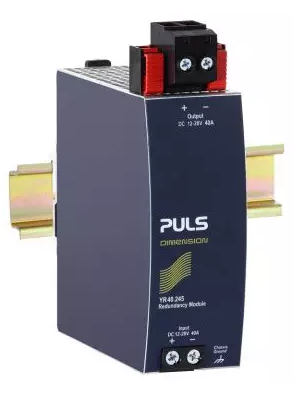

PULS Redundancy Module, MOSFET, 12-28VDC, 40A, Single Input, Output Plug Connector
The Puls YR40.245 is a 40A, 24V MOSFET redundancy module with a single 40A input. It features a plug connector for easy integration and ensures reliable power distribution. Designed to enhance system uptime, this module automatically switches between power sources for continuous operation in critical applications.
Features
- For N+1 and 1+1 redundant systems
- Equipped with plug-connector for “Hot Swapping”
- Suitable for all DIMENSION power supplies
except QT40 series - Only 150 mV voltage drop at 40 A output current
- Only 6.2 W loss at 40 A
- 160 % (65 A) Peak load capability
- Reverse input polarity protection
- Full power between -40 °C and +60 °C
- Width only 46 mm
- Rugged metal housing
- Easy wiring:
Distribution terminal for negative pole included
The Puls YR40.245 is a 40A, 24V MOSFET redundancy module with a single 40A input. It features a plug connector for easy integration and ensures reliable power distribution. Designed to enhance system uptime, this module automatically switches between power sources for continuous operation in critical applications.
Features
- For N+1 and 1+1 redundant systems
- Equipped with plug-connector for “Hot Swapping”
- Suitable for all DIMENSION power supplies
except QT40 series - Only 150 mV voltage drop at 40 A output current
- Only 6.2 W loss at 40 A
- 160 % (65 A) Peak load capability
- Reverse input polarity protection
- Full power between -40 °C and +60 °C
- Width only 46 mm
- Rugged metal housing
- Easy wiring:
Distribution terminal for negative pole included
Specifications
| Measurement Minimum | 0 |
