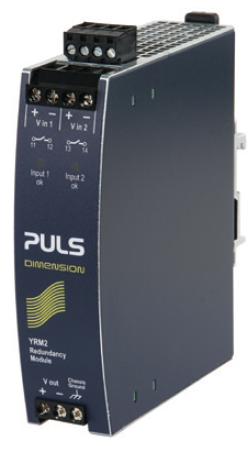

Representative photo. Please check item description for details.
PULS Redundancy Module, Diode, 12-48VDC, 20A, 2 x 10A Dual Input
The Puls YR2.DIODE is a diode module for decoupling redundant power supplies. It prevents reverse current flow and enhances system reliability. This module is designed for DIN rail mounting and easy installation.
Features
- Cost effective solution to build redundant systems
- Dual input with single output
- Two diodes (common cathode)
- DC 12-48 V ±25 % Wide-range input
- Full power between -40 °C and +60 °C
- Width only 32 mm
- Rugged metal housing
- Quick-connect spring-clamp terminals
- Easy wiring: Distribution terminal for negative pole included
The Puls YR2.DIODE is a diode module for decoupling redundant power supplies. It prevents reverse current flow and enhances system reliability. This module is designed for DIN rail mounting and easy installation.
Features
- Cost effective solution to build redundant systems
- Dual input with single output
- Two diodes (common cathode)
- DC 12-48 V ±25 % Wide-range input
- Full power between -40 °C and +60 °C
- Width only 32 mm
- Rugged metal housing
- Quick-connect spring-clamp terminals
- Easy wiring: Distribution terminal for negative pole included
Specifications
| Measurement Maximum | 0 |
| Measurement Minimum | 0 |
