XT800 Float Level Transmitter - XT800-2-SS-BN-.25-21.5-83850-J-H---rings

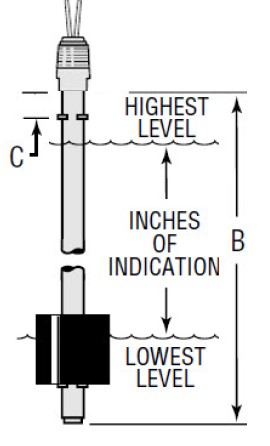

Representative photo. Please check item description for details.

XT800 Float Level Transmitter - XT800-2-SS-BN-.25-21.5-83850-J-H---rings

https://www.branom.com/web/image/product.template/554260/image_1920?unique=c26756c
(0 review)
Model: XT-800
Specific Gravity: 1.09
Max. Pressure: 14psi
Stem Length: Up to 72"
Stem Construction: Tubing (for units < 72")
Operating Temp.: 70F
Stem Material: 316 Stainless Steel
Mounting Type: (2) 1-1/4" NPT
Termination: Nema 4 Junction Box
Output: 4 - 20mA
Float Material: Buna N
Float Type: Buna N (164255)
Media Type: Diesel Exhaust Fluid
Float Stops: Grip Rings
Indicating Length: 21.5"
C Dimension: .25"
Overall Length(B Dimension): 23.75

    This combination does not exist.

    Contact Us
    Product Datasheets

    Share

    Model: XT-800
    Specific Gravity: 1.09
    Max. Pressure: 14psi
    Stem Length: Up to 72"
    Stem Construction: Tubing (for units < 72")
    Operating Temp.: 70F
    Stem Material: 316 Stainless Steel
    Mounting Type: (2) 1-1/4" NPT
    Termination: Nema 4 Junction Box
    Output: 4 - 20mA
    Float Material: Buna N
    Float Type: Buna N (164255)
    Media Type: Diesel Exhaust Fluid
    Float Stops: Grip Rings
    Indicating Length: 21.5"
    C Dimension: .25"
    Overall Length(B Dimension): 23.75
