XT-800 Series XT800-6-SS-SS-1.25-19.5-76050-LW-H---rings
Representative photo. Please check item description for details.

XT-800 Series XT800-6-SS-SS-1.25-19.5-76050-LW-H---rings

https://www.branom.com/web/image/product.template/548505/image_1920?unique=c26756c
(0 review)

Technical Specifications
Model: XT-800
Specific Gravity: 1.0
Max. Pressure: 80
Stem Length: Up to 72"
Stem Construction: Tubing (for units < 72")
Operating Temp.: 230
Stem Material: 316 Stainless Steel
Mounting Type: (6) 2-1/2" Sanitary Flange
Termination: Lead Wire
Output: 4 - 20mA
Float Material: 316 Stainless Steel
Float Type: 316 Stainless Steel (156490)
Media Type: Water
Float Stops: Grip Rings

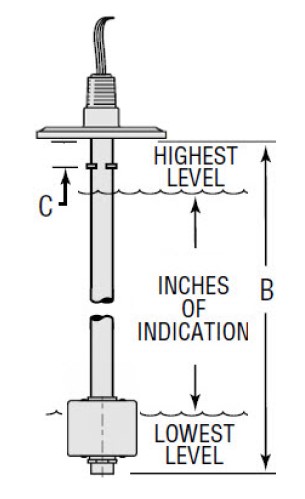

Dimensional Specifications
Indicating Length: 19.5"
C Dimension: 1.25"
Overall Length(B Dimension): 22.812
