LS-300 Series Level Switch, LS-300-22-1-BNA-100-GR2-2-T
Representative photo. Please check item description for details.

LS-300 Series Level Switch, LS-300-22-1-BNA-100-GR2-2-T

https://www.branom.com/web/image/product.template/541582/image_1920?unique=c26756c
(0 review)

Technical Specifications
Specific Gravity: .85
Max. Pressure: 50
Operating Temp.: 72
Mounting Type: (22) 1" NPT
Switch Type: SPST, 100VA
Wiring Group: Group 2 - Independent Return
Number of Levels: 2
Electrical Connection: Leadwire
Float Material: Buna N
Float Type: Buna N (39049)
Media Type: Chevron 46 Bearing Oil
Mounting Direction: Top Mounted

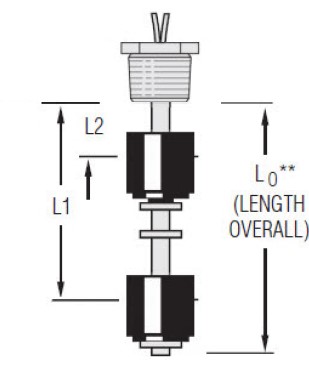

Dimensional Specifications
L2: 2.125" NO
L1: 7" NC
L0: 8.188"
Lead Length: 24"


$ 295.91 295.91 USD $ 295.91

$ 295.91

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share

    Technical Specifications
    Specific Gravity: .85
    Max. Pressure: 50
    Operating Temp.: 72
    Mounting Type: (22) 1" NPT
    Switch Type: SPST, 100VA
    Wiring Group: Group 2 - Independent Return
    Number of Levels: 2
    Electrical Connection: Leadwire
    Float Material: Buna N
    Float Type: Buna N (39049)
    Media Type: Chevron 46 Bearing Oil
    Mounting Direction: Top Mounted

    Dimensional Specifications
    L2: 2.125" NO
    L1: 7" NC
    L0: 8.188"
    Lead Length: 24"
