  2. Single & Multi-Point Level Switches
  3. GEMS LS-800PVC, LS800PVC-1-SPST-20-GR1-3 (5)PC M.O.Q
Public Pricelist (v2)
GEMS LS-800PVC, LS800PVC-1-SPST-20-GR1-3 (5)PC M.O.Q
Representative photo. Please check item description for details.

GEMS LS-800PVC, LS800PVC-1-SPST-20-GR1-3 (5)PC M.O.Q

https://www.branom.com/web/image/product.template/196616/image_1920?unique=c26756c
(0 review)

Technical Specifications

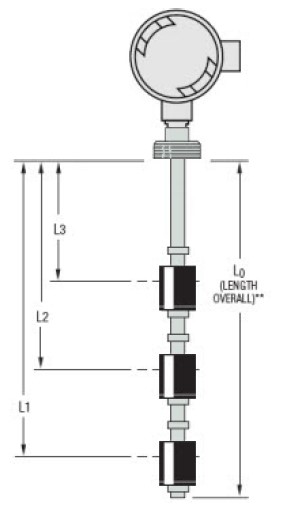

Dimensional Specifications
L3:	25.5" NC
L2:	32.5" NC
L1:	44.5" NC
L0:	46.500"
Lead Length:	24"
Specific Gravity:	 1.0 and greater
Max. Pressure:	 Atmospheric (15 PSI)
Operating Temp.:	 0 to 125
Mounting Type:	 (1) 1/2" NPT
Switch Type:	 SPST, 20VA
Wiring Group:	 Group 1 - Common Return
Number of Levels:	 3
Electrical Connection: Leadwire
Float Material:	 PVC
Float Type:	 PVC (16306)
Ordering Information
Part Number:	W1068135
Lead Time:	 40 Business Days
Min. Order Quantity:	 5
Shipping Weight:	0.63 lbs.
Model Description:	LS800PVC-1-SPST-20-GR1-3



  • Measurement Maximum
  • Measurement Minimum

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Technical Specifications
Dimensional Specifications
L3:	25.5" NC
L2:	32.5" NC
L1:	44.5" NC
L0:	46.500"
Lead Length:	24"
Specific Gravity:	 1.0 and greater
Max. Pressure:	 Atmospheric (15 PSI)
Operating Temp.:	 0 to 125
Mounting Type:	 (1) 1/2" NPT
Switch Type:	 SPST, 20VA
Wiring Group:	 Group 1 - Common Return
Number of Levels:	 3
Electrical Connection: Leadwire
Float Material:	 PVC
Float Type:	 PVC (16306)
Ordering Information
Part Number:	W1068135
Lead Time:	 40 Business Days
Min. Order Quantity:	 5
Shipping Weight:	0.63 lbs.
Model Description:	LS800PVC-1-SPST-20-GR1-3
