GEMS LS-800, 1.25"NPT MOUNT, 17" LENGTH, L1=15", L2=5" (LS800-2-SS-BN-SPST-20-GR2-2)

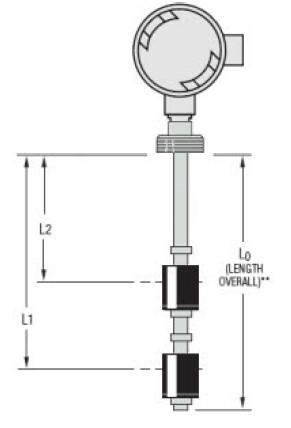

Representative photo. Please check item description for details.

GEMS LS-800, 1.25"NPT MOUNT, 17" LENGTH, L1=15", L2=5" (LS800-2-SS-BN-SPST-20-GR2-2)

https://www.branom.com/web/image/product.template/193896/image_1920?unique=c26756c
(0 review)

Specific Gravity: .86
Max. Pressure: 15
Stem Length: 1.5" - 36"
Stem Construction: Tubing (for units < 72")
Operating Temp.: 200
Stem Material: 316 Stainless Steel
Mounting Type: (2) 1-1/4" NPT
Switch Type: SPST, 20VA
Wiring Group: Group 2 - Independent Return
Number of Levels: 2
L2: 5" NO
L1: 15" NC
L0: 17.000"
Electrical Connection: Nema 4 Junction Box
Float Material: Buna N
Float Type: Buna N (26032)
Media Type: hydrauli coil
Float Stops: Grip Rings


  • Measurement Maximum
  • Measurement Minimum

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Specific Gravity: .86
Max. Pressure: 15
Stem Length: 1.5" - 36"
Stem Construction: Tubing (for units < 72")
Operating Temp.: 200
Stem Material: 316 Stainless Steel
Mounting Type: (2) 1-1/4" NPT
Switch Type: SPST, 20VA
Wiring Group: Group 2 - Independent Return
Number of Levels: 2
L2: 5" NO
L1: 15" NC
L0: 17.000"
Electrical Connection: Nema 4 Junction Box
Float Material: Buna N
Float Type: Buna N (26032)
Media Type: hydrauli coil
Float Stops: Grip Rings

Specifications

Measurement Maximum 0
Measurement Minimum 0
