MODEL LS-800, LS-800-3-SS-SS-SPDT-020-GR4-2

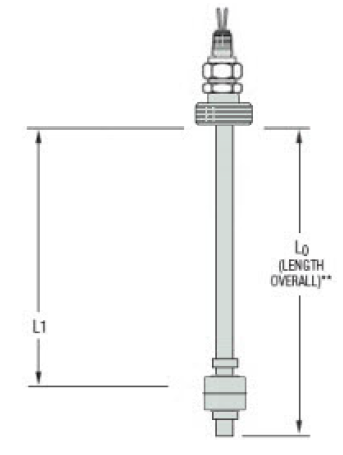

Representative photo. Please check item description for details.

MODEL LS-800, LS-800-3-SS-SS-SPDT-020-GR4-2

https://www.branom.com/web/image/product.template/193710/image_1920?unique=c26756c
(0 review)

L2: 36" NO
L1: 70" NO
L0: 72.000"
Specific Gravity: 1
Max. Pressure: 50
Stem Length: 60" - 72"
Stem Construction: Tubing (for units < 72")
Operating Temp.: 75
Stem Material: 316 Stainless Steel
Mounting Type: (4) 3" 150lb Flange
Switch Type: SPDT, 20VA
Wiring Group: Group 4 - Independent Return
Number of Levels: 2
Electrical Connection: Leadwire
Float Material: 316 Stainless Steel
Float Type: 316 SS (14569)
Media Type: Sodium Hypo
Float Stops: Grip Rings


  • Measurement Maximum
  • Process Connection Type
  • Process Connection Size
  • Measurement Minimum

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

L2: 36" NO
L1: 70" NO
L0: 72.000"
Specific Gravity: 1
Max. Pressure: 50
Stem Length: 60" - 72"
Stem Construction: Tubing (for units < 72")
Operating Temp.: 75
Stem Material: 316 Stainless Steel
Mounting Type: (4) 3" 150lb Flange
Switch Type: SPDT, 20VA
Wiring Group: Group 4 - Independent Return
Number of Levels: 2
Electrical Connection: Leadwire
Float Material: 316 Stainless Steel
Float Type: 316 SS (14569)
Media Type: Sodium Hypo
Float Stops: Grip Rings

Specifications

Measurement Maximum 0
Process Connection Type NPT
Process Connection Size 1-1/2"
Measurement Minimum 0
