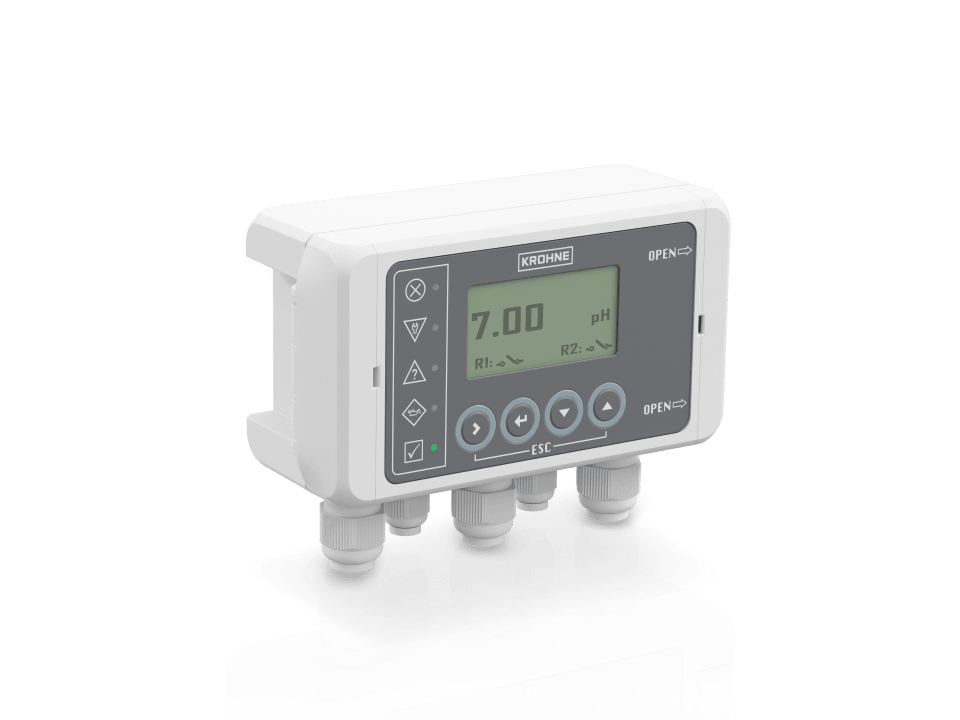

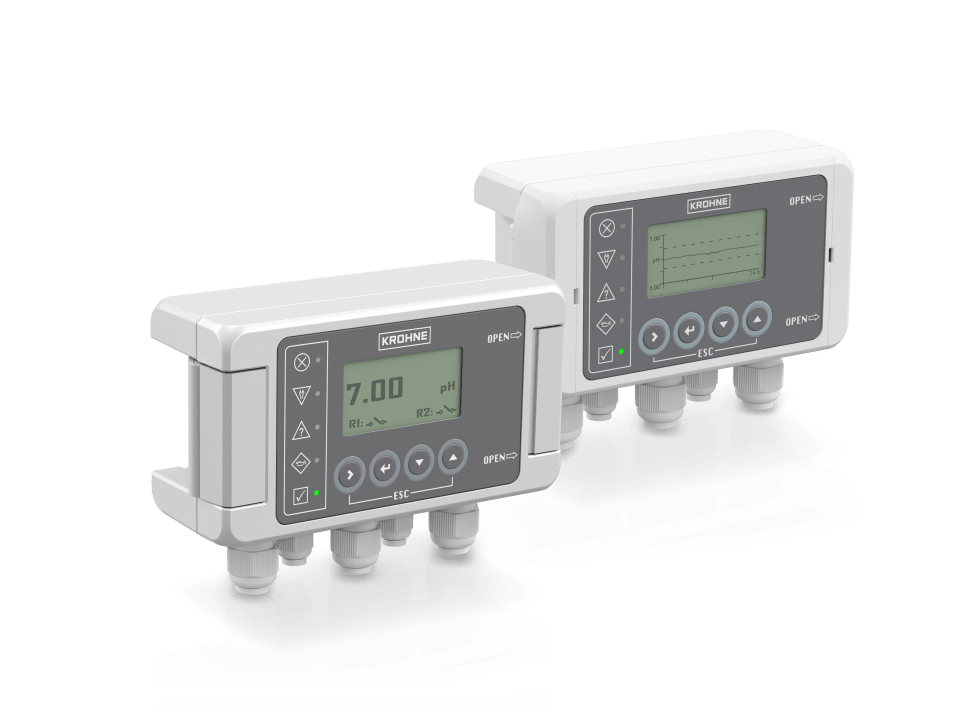

Model SHD 200 Control unit for 4…20 mA/HART® field devices

https://www.branom.com/web/image/product.template/548699/image_1920?unique=c26756c
(0 review)

Features:

  • Second 4…20 mA output for any HART® variable
  • 2 configurable relays for status output, system alarm or limit switch
  • Status signalisation by 5 LEDs according to NAMUR NE 107
  • User-configurable measurement pages for all 4…20 mA and HART® signals incl. trend graph and summary page

Specifications:

LC Display 256 x 128 Pixel, 4 push buttons for operator control.  IP66/IP67, -4...+158F, Altitude 6,561ft AMSL, 20-30VDC Input Powered @ 75mA.

VGSH41 - SHD 200 Control Unit

1 - Field Housing

1 - Polycarbonate Housing

1 - Wall Mounting Set for Plastic Housing

0 - Options = None

0 - Approvals = None

1 - Current Ouputs = 1 x additional current outputs

2 - Relays = 2 x configurable relays

1 - External Hart Adapter

0 - Operation Language = English

0 - Documentation = None



$ 1,410.77 1410.77 USD $ 1,410.77

$ 1,410.77

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Datasheet 2
