380 Series Sub-Miniature Solenoid Valve (8380), 1/8" NPT, 24 VAC, 3 Way-3/2 NC

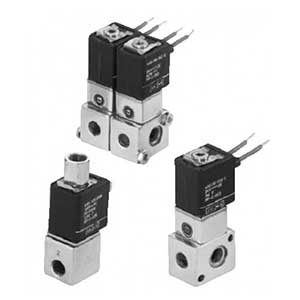

Representative photo. Please check item description for details.

380 Series Sub-Miniature Solenoid Valve (8380), 1/8" NPT, 24 VAC, 3 Way-3/2 NC

https://www.branom.com/web/image/product.template/181812/image_1920?unique=c26756c
(0 review)

  • Body Material: Aluminum
  • Flow (Cv): 0.05
  • Valve Function: 3 way - 3/2 Normally Closed
  • Media: Air, Inert Gas
  • Pipe/Port Type & Size: NPT 1/8
  • Valve Actuation: Solenoid - Direct Acting
  • Voltage: 24 DC
  • Product Weight: 0.33 lbs
  • Order Code: 03054
  • Coil Class: FT
  • Coil Number: 400117-142-D
  • Min to Max Ambient Temperature: 32 - 77 deg;F
  • Orifice Size: 3/64 in
  • Watt Rating: 6.9 W
  • Mounting Brackets: OPTIONAL
  • Item Status: Active
  • Lead Length: 18 inch
  • Seating Elastomer: NBR
  • Mounting Direction: ANY:

    • $ 527.00 527.0 USD $ 527.00

    $ 527.00

    Not Available For Sale

    • Valve: Actuation
    • Valve: Type

    This combination does not exist.

    Contact Us

    Share

  • Body Material: Aluminum
  • Flow (Cv): 0.05
  • Valve Function: 3 way - 3/2 Normally Closed
  • Media: Air, Inert Gas
  • Pipe/Port Type & Size: NPT 1/8
  • Valve Actuation: Solenoid - Direct Acting
  • Voltage: 24 DC
  • Product Weight: 0.33 lbs
  • Order Code: 03054
  • Coil Class: FT
  • Coil Number: 400117-142-D
  • Min to Max Ambient Temperature: 32 - 77 deg;F
  • Orifice Size: 3/64 in
  • Watt Rating: 6.9 W
  • Mounting Brackets: OPTIONAL
  • Item Status: Active
  • Lead Length: 18 inch
  • Seating Elastomer: NBR
  • Mounting Direction: ANY:

    • Specifications

    Valve: Actuation Solenoid
    Valve: Type Automated
