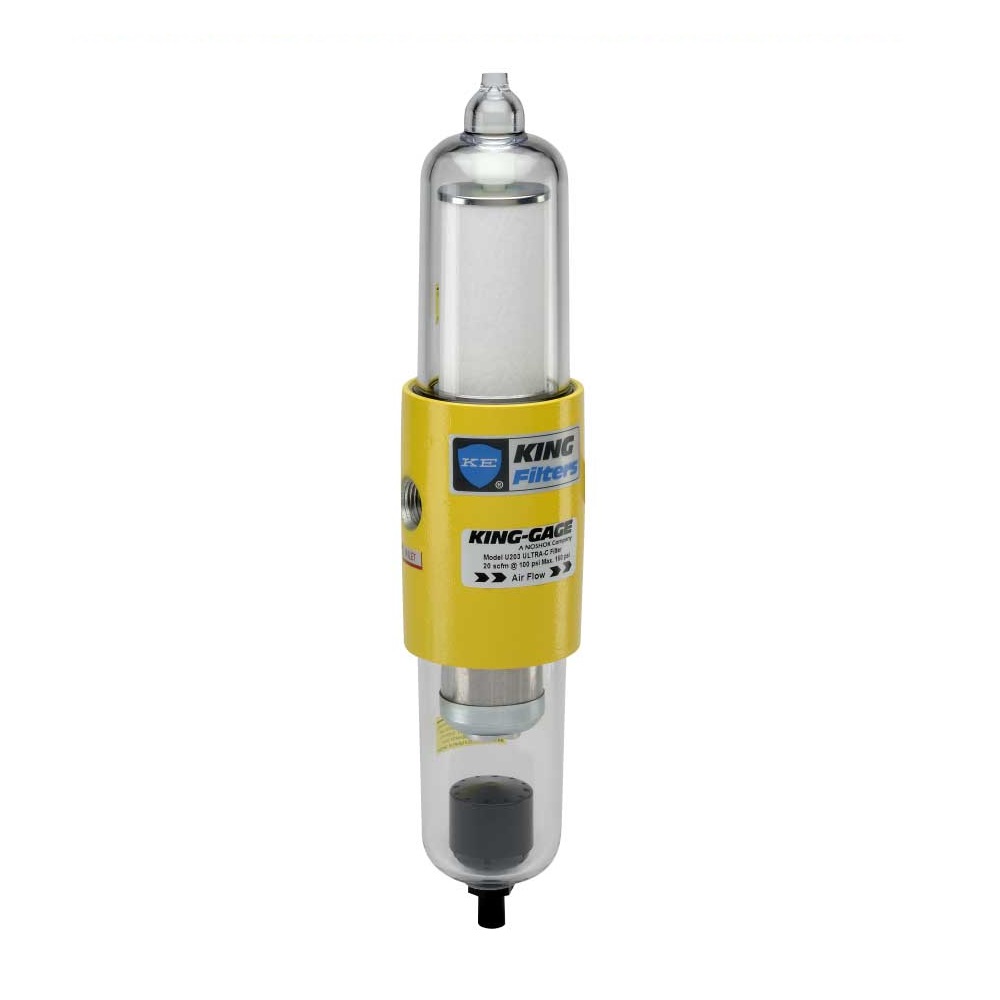

U203 Series Ultra-C 20 SCFM Filter, 99.9% Efficiency, Auto Drain
- Demanding ultra clean compressed air filter for packaging, paint/coating systems, machine tools, and pneumatic instrumentation
- The high efficiency two-stage filter uses a self-draining coalescing element to remove large amounts of solid and liquid contaminants from the airline
Pneumatic Instruments: Installed upstream of the main take off to individual components, the filter provides clean, regulated compressed air. When used with KING-GAGE tank level systems, one (1) filter can service dozens of individual pneumatic tank sensors.
- Instrumentation
- Fluidics
- Packaging
- Laboratory
- Demanding ultra clean compressed air filter for packaging, paint/coating systems, machine tools, and pneumatic instrumentation
- The high efficiency two-stage filter uses a self-draining coalescing element to remove large amounts of solid and liquid contaminants from the airline
Pneumatic Instruments: Installed upstream of the main take off to individual components, the filter provides clean, regulated compressed air. When used with KING-GAGE tank level systems, one (1) filter can service dozens of individual pneumatic tank sensors.
- Instrumentation
- Fluidics
- Packaging
- Laboratory
Specifications
| Process Connection Type | NPT-Female |
| Housing Material_ | Aluminum (Cast) |
| Sump Drain | Auto Drain |
| Sump Material | Polycarbonate |
| Flow @ 100 psig | 20 SCFM |
| Flow @ 7 kg/cm2 | 566 LPM |
| Flow @ 7 bar | 34 CMH |
| Efficiency | 99.9% |
| Max Inlet Pressure | 150 psi |
| Filter Type | Dual Cartridge Coalescing w/Color Change Indicating |
