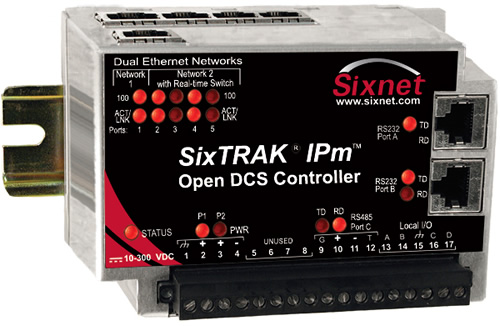

Representative photo. Please check item description for details.
IPM Series Sixnet Industrial RTU 2M NVRAM 64M DRAM
Red Lion's Sixnet® series of RTUs provide powerful control in industrial automation applications. The product line is made up of the IPm®, mIPm, IPm2m®, and uIPm series of industrial RTUs. With a variety of connectivity, I/O, and programmability there is an industrial RTU for the toughest applications.
Features
Performance Specifications
- Industrial PowerPC (32 bit data bus)
- Operating system: embedded LINUX
- Dynamic memory (RAM): 16+ Megabytes - 32bit; 0 wait states
- Program memory (Flash): 16+ Megabytes
- Datalogging memory NVRAM: 2 MB (battery-backed)
- Maximum local I/O: 640
- Datalogging support: Sixnet® Sixlog
- IEC 61131 programming: Sixnet ISaGRAF
- High Level C programming: LINUX open software
Ethernet Ports (All)
- 10/100BaseTx (auto-detecting)
- Connection: RJ45 (auto-crossover)
- Protocols: TCP/IP, ARP, UDP, ICMP, DHCP, Modbus/TCP, Sixnet and more
- Independent networks: 2 w/ unique MAC and IP addresses
- Network port 1: (1) shielded RJ45 connector
- Network port 2: (4) shielded RJ45 connectors (linked via integrated industrial Ethernet switch)
Serial Port
- Up to 115,200 baud
- RS-232 Port A RJ45 (TD, RD, CTS, RTS, CD,TR, DSR, GND)
- RS-232 Port B RJ45 (TD, RD, CTS, RTS, CD, DTR, DSR, GND)
- RS-485 Port C Screws (485+, 485-, GND) (2-wire half-duplex)
- Protocols (master or slave): Sixnet and Modbus RTU/ASCII; many others available in LINUX
- Flow control - hardware, software, half/full-duplex modem
Environmental
- DIN-rail or flat-panel mount
- Input power: 10-30 VDC
- Input current: 150 mA @ 24 VDC (typical)
- Temperature: -40 to 70°C (-40 to 85°C storage)
- Humidity: 5% to 95% RH (non-condensing)
- Flammability: UL 94V-0 materials
- Electrical Safety: UL 508, CSA C22.2/14; EN61010-1 (IEC1010); CE
- EMI emissions: FCC part 15, ICES-003, Class A; EN55022; EN61326-1; CE
- EMC immunity: EN61326-1 (EN61000-4-2,3,4,6); CE
- Vibration: IEC68-2-6
- Hazardous locations: UL 1604, CSA C22.2/213, (Class 1, Div 2, Groups A,B,C,D) Cenelec EN50021 Zone 2
- MTBF ST-IPm-6350: 2,003,287 Hours GB @ 40°C per MIL-HNDBK-217F2
- Marine/offshore tested and/or verified to meet various marine and maritime standards
