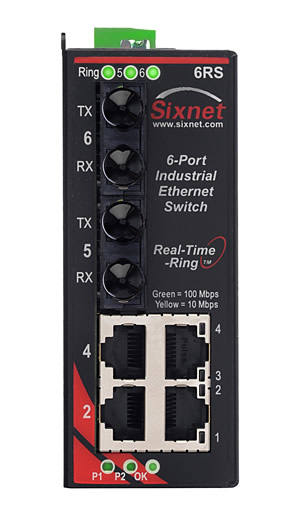

SLX Series, 6-Port, Sixnet SLX-6RS Ethernet Ring Switch with Monitoring, ST 20km
Red Lion's Sixnet® series SLX ring switches provide Real-Time Ring™ and plug-and-play technology. The industrial SLX ring switches are pre-configured for fast, fault-tolerant network deployments and are designed to perform in the most extreme environments including operating temperatures from -40°C to +85°C.
Features
- Real-Time Ring™ Protocol with Zero-Configuration
- Real-Time Modbus over Ethernet monitoring
- 6 Port Industrial Ethernet Switch
- Four 10/100BaseTX RJ-45 Ports
- Two 100BaseFX Singlemode 20km Fiber Ports with ST Connectors
- Compact, Space Saving Package
- IEEE 802.3 Compliance
- Extended Environmental Specifications
- -40° to 85°C Operating Temperature
- >1M+ Hours MTBF
- Supports Full/Half Duplex Operation
- MDIX Auto Sensing Cable
- Auto Sensing Speed and Flow Control
- Surge Protection on Power Inputs
- Redundant Power Inputs (10-30 VDC)
- LED Link/Activity Status Indication
- Hardened Metal DIN-Rail Enclosure
Red Lion's Sixnet® series SLX ring switches provide Real-Time Ring™ and plug-and-play technology. The industrial SLX ring switches are pre-configured for fast, fault-tolerant network deployments and are designed to perform in the most extreme environments including operating temperatures from -40°C to +85°C.
Features
- Real-Time Ring™ Protocol with Zero-Configuration
- Real-Time Modbus over Ethernet monitoring
- 6 Port Industrial Ethernet Switch
- Four 10/100BaseTX RJ-45 Ports
- Two 100BaseFX Singlemode 20km Fiber Ports with ST Connectors
- Compact, Space Saving Package
- IEEE 802.3 Compliance
- Extended Environmental Specifications
- -40° to 85°C Operating Temperature
- >1M+ Hours MTBF
- Supports Full/Half Duplex Operation
- MDIX Auto Sensing Cable
- Auto Sensing Speed and Flow Control
- Surge Protection on Power Inputs
- Redundant Power Inputs (10-30 VDC)
- LED Link/Activity Status Indication
- Hardened Metal DIN-Rail Enclosure
