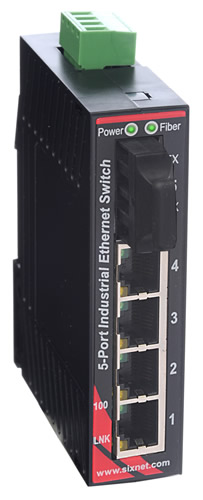

Representative photo. Please check item description for details.
SL Series, 5-Port, Sixnet SL-5ES Unmanaged Ethernet Switch, SC 20km
Red Lion's Sixnet® series SL unmanaged industrial Ethernet switches are ideal for light to moderate industrial applications. Available with Ethernet and fiber options, unmanaged SL Ethernet switches offer protected circuitry and Lexan DIN-rail mountable enclosures.
Features
- Unmanaged Plug and Play Operation
- 5 Port Lite-Industrial Ethernet Switch
- Four 10/100BaseTX RJ-45 Ports
- One 100BaseFX Singlemode 20km Fiber Port with SC Connectors
- Compact, Space Saving Package
- IEEE 802.3 Compliance
- Extended Environmental Specifications
- -40° to 60°C Operating Temperature
- >1M+ Hours MTBF
- Supports Full/Half Duplex Operation
- MDIX Auto Sensing Cable
- Auto Sensing Speed and Flow Control
- Surge Protection on Power Inputs
- Redundant Power Inputs (10-30 VDC)
- LED Link/Activity Status Indication
- Lexan DIN-Rail Enclosure
Red Lion's Sixnet® series SL unmanaged industrial Ethernet switches are ideal for light to moderate industrial applications. Available with Ethernet and fiber options, unmanaged SL Ethernet switches offer protected circuitry and Lexan DIN-rail mountable enclosures.
Features
- Unmanaged Plug and Play Operation
- 5 Port Lite-Industrial Ethernet Switch
- Four 10/100BaseTX RJ-45 Ports
- One 100BaseFX Singlemode 20km Fiber Port with SC Connectors
- Compact, Space Saving Package
- IEEE 802.3 Compliance
- Extended Environmental Specifications
- -40° to 60°C Operating Temperature
- >1M+ Hours MTBF
- Supports Full/Half Duplex Operation
- MDIX Auto Sensing Cable
- Auto Sensing Speed and Flow Control
- Surge Protection on Power Inputs
- Redundant Power Inputs (10-30 VDC)
- LED Link/Activity Status Indication
- Lexan DIN-Rail Enclosure
Specifications
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Mounting Options | DIN Rail |
| Case Material | Lexan |
| Input Voltage | 10-30 VDC |
| Ingress Protection | IP30 |
| Fiber Type | Singlemode |
| Ethernet Connector Type | SC |
| No. Ports | 5 |
| 10/100 Ports | 4 |
| 100 Fiber Ports | 1 |
| Distance Rating | 20 km |
