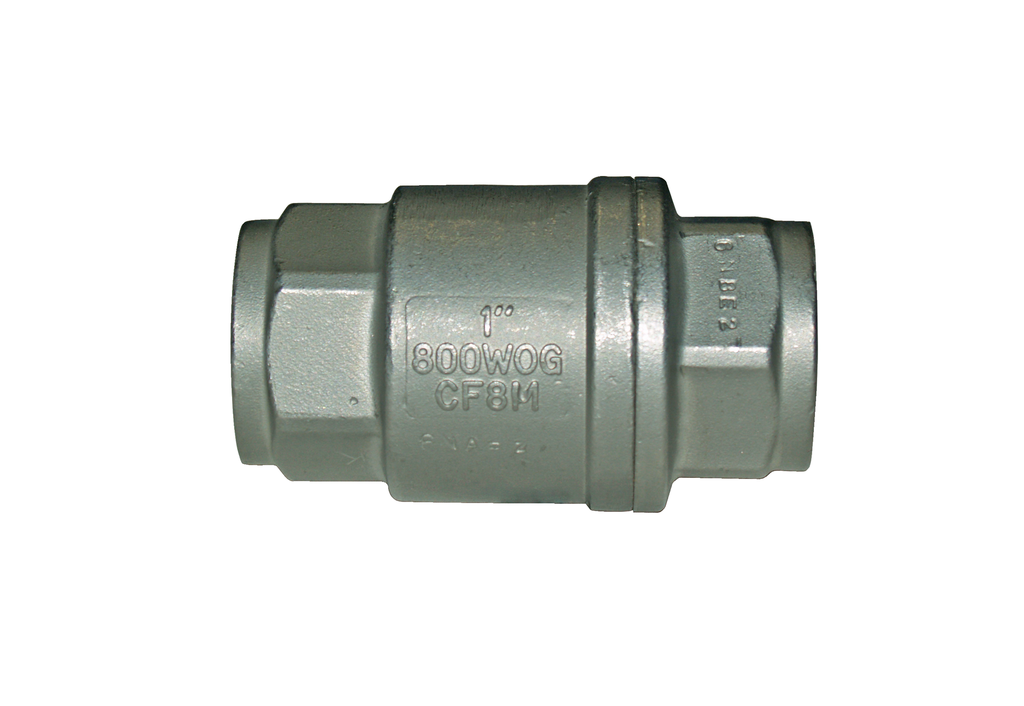

S800 North America Series High Capacity, In-Line Spring Loaded SS Check or Foot Valve, FNPT Threaded.
S800 High capacity, in-line spring loaded stainless steel check valve, FNPT threaded.
Features
Pressure rating: size 1/4” to 2” 800 WOG - 2 1/2” to 3” 600 WOG.
125 WSP saturated steam.
Wide temperature range: -4°F to 210°F.
ANSI B1.20.1 connections.
Soft PTFE seat for bubble tight shutoff, spring loaded for fast seating action.
Low cracking pressure 1/2 psi.
Flow profile designed to minimize head loss.
Perfect sealing both at high and low pressure.
Corrosion resistant-excellent for use on chemicals.
Dual guided stem and disc.
Model Details
S800: size 1/4” to 3”.
S800FV: stainless steel FOOT VALVE - size 1/4” to 3”.
S800 High capacity, in-line spring loaded stainless steel check valve, FNPT threaded.
Features
Pressure rating: size 1/4” to 2” 800 WOG - 2 1/2” to 3” 600 WOG.
125 WSP saturated steam.
Wide temperature range: -4°F to 210°F.
ANSI B1.20.1 connections.
Soft PTFE seat for bubble tight shutoff, spring loaded for fast seating action.
Low cracking pressure 1/2 psi.
Flow profile designed to minimize head loss.
Perfect sealing both at high and low pressure.
Corrosion resistant-excellent for use on chemicals.
Dual guided stem and disc.
Model Details
S800: size 1/4” to 3”.
S800FV: stainless steel FOOT VALVE - size 1/4” to 3”.
Specifications
| Model | [S800] Check Valve, [S800FV] Foot Valve |
| Valve Size | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" |
