Watlow Style RT, 100 OHM 3 Wire RTD

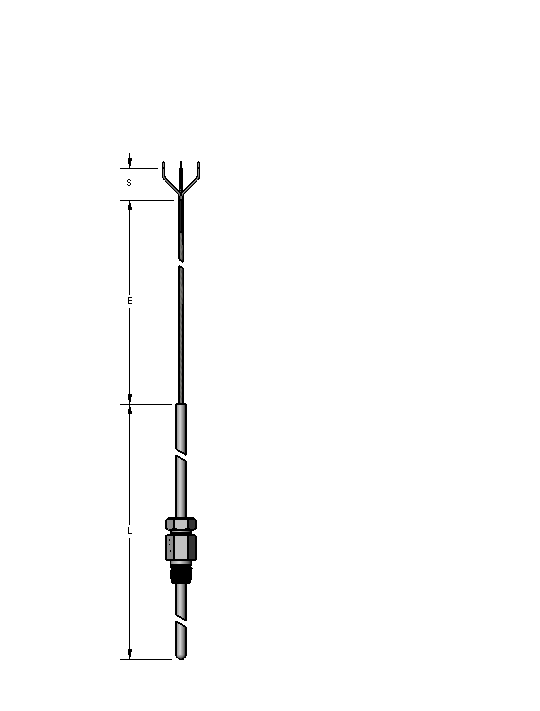

Representative photo. Please check item description for details.

Watlow Style RT, 100 OHM 3 Wire RTD

https://www.branom.com/web/image/product.template/191993/image_1920?unique=c26756c
(0 review)

RTD Sensor Style RT Style 3 RTD with Nipple
Outside Diameter [in] J - .250 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Head Type D - Cast Iron
Conduit Connection A - 3/4 inch NPT
Nipple/Union Material A - Black Steel
"N" Dimension [in] 2.0
Spring Loading Yes
Sheath Length [in] (L) 11.250
Sheath Tolerance [in] ± 0.125
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No


  • Measurement Maximum
  • Process Connection Type
  • Stem Length
  • Measurement Minimum

This combination does not exist.

Contact Us

Share

RTD Sensor Style RT Style 3 RTD with Nipple
Outside Diameter [in] J - .250 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Head Type D - Cast Iron
Conduit Connection A - 3/4 inch NPT
Nipple/Union Material A - Black Steel
"N" Dimension [in] 2.0
Spring Loading Yes
Sheath Length [in] (L) 11.250
Sheath Tolerance [in] ± 0.125
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No

Specifications

Measurement Maximum 0
Process Connection Type NPT
Stem Length 6 in (152.4 mm)
Measurement Minimum 0
