Dynapar RT8 Series (8500) Encoders, RIM Tach

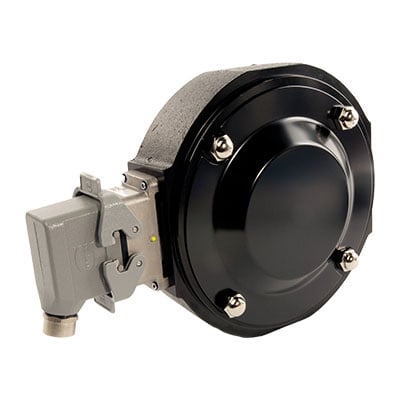

Representative photo. Please check item description for details.

Dynapar RT8 Series (8500) Encoders, RIM Tach

https://www.branom.com/web/image/product.template/543860/image_1920?unique=c26756c
(0 review)

NorthStar™ RIM Tach™ NexGen 8500

The NorthStar™ brand RIM Tach™ NexGen 8500 is specifically designed to provide high performance velocity and position feedback for AC and DC motor and drive control systems. The demands today require more forgiving installation to accommodate for variations in shaft concentricity's, C-face bracket fits, and higher resolutions to meet the demands of today's high performance drives.

Features

  • Feedback Type: Incremental
  • Technology Sensing Type: Magnetic - Bearingless
  • Mounting Configuration: NEMA 8.5" 180 C-Face
  • Connection Location: Radial (Dual Isolated)
  • Connection Type: Connector
  • Housing Material: Cast Iron
  • Maximum Operating Speed (RPM): 7000
  • Shaft / Bore Material: Aluminum & Stainless Steel
  • Shaft / Bore Size (mm): 34.925
  • Shaft Type: Hollow Shaft
  • Termination: Latching Industrial Connector w/ 1/2" NPT
  • Duty Cycle: 35-65%
  • Incremental Signals: A, A', B, B', Z, Z'
  • Input Voltage: 5-26 VDC
  • Line Driver Type: IC-WE
  • Maximum Frequency Response (KHz): 180
  • Output Signal: 5-26 VDC
  • Resolution (PPR): 1024
  • Reverse Polarity Protection: Yes
  • Short Circuit Protection: Yes
  • Humidity Non-Condensing (%): 98
  • Maximum Operating Temperature (°C): 100
  • Maximum Storage Temperature (°C): 125
  • Minimum Operating Temperature (°C): -40
  • Minimum Storage Temperature (°C): -40
  • Noise Immunity Testing Specification: EN61326-1
  • Shock Resistance: 200G min.
  • Vibration Resistance: 18G, 5-2000Hz

$ 5,161.01 5161.01 USD $ 5,161.01

$ 5,161.01

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
