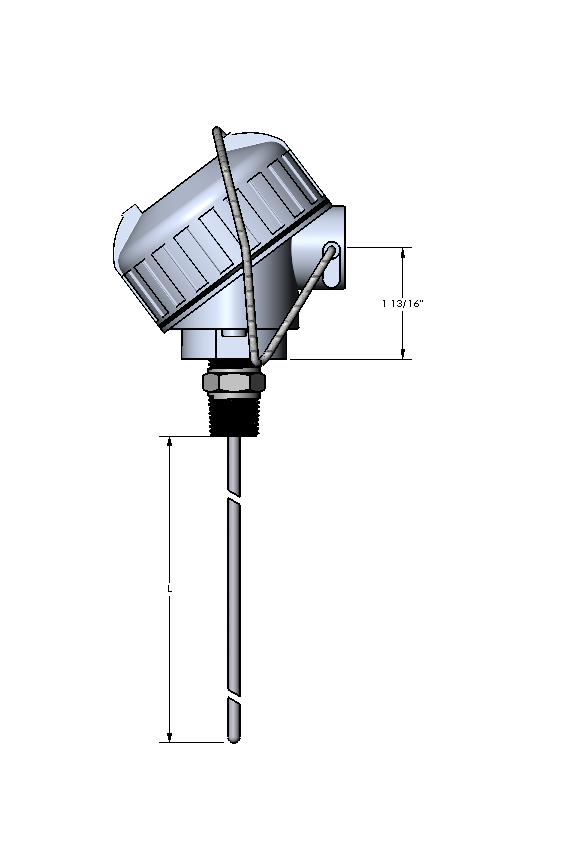

Watlow 3-Wire Rtd w/Cast Alum Connection Head 18"SS Sheath 1/2"NPT
RTD Sensor Style RR Style RTD with Double Fitting
Outside Diameter [in] J - .250 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C A - DIN Class A (+/-0.06%)
Thermowell No Thermowell - Sensor Only
Head Type E - Cast Aluminum
Conduit Connection A - 3/4 inch NPT
Termination Style A - Terminal Block/Strip
Fitting F-Double Threaded, 303SS 1/2 NPT
Mounting Location [in] (A) 18.000
Tolerance [in] ± 0.125
Attachment Method SB - Silver Braze
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No
RTD Sensor Style RR Style RTD with Double Fitting
Outside Diameter [in] J - .250 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C A - DIN Class A (+/-0.06%)
Thermowell No Thermowell - Sensor Only
Head Type E - Cast Aluminum
Conduit Connection A - 3/4 inch NPT
Termination Style A - Terminal Block/Strip
Fitting F-Double Threaded, 303SS 1/2 NPT
Mounting Location [in] (A) 18.000
Tolerance [in] ± 0.125
Attachment Method SB - Silver Braze
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No
Specifications
| Process Connection Type | NPT |
| Stem Length | 18 in (457.2 mm) |
| Measurement Minimum | 0 |
