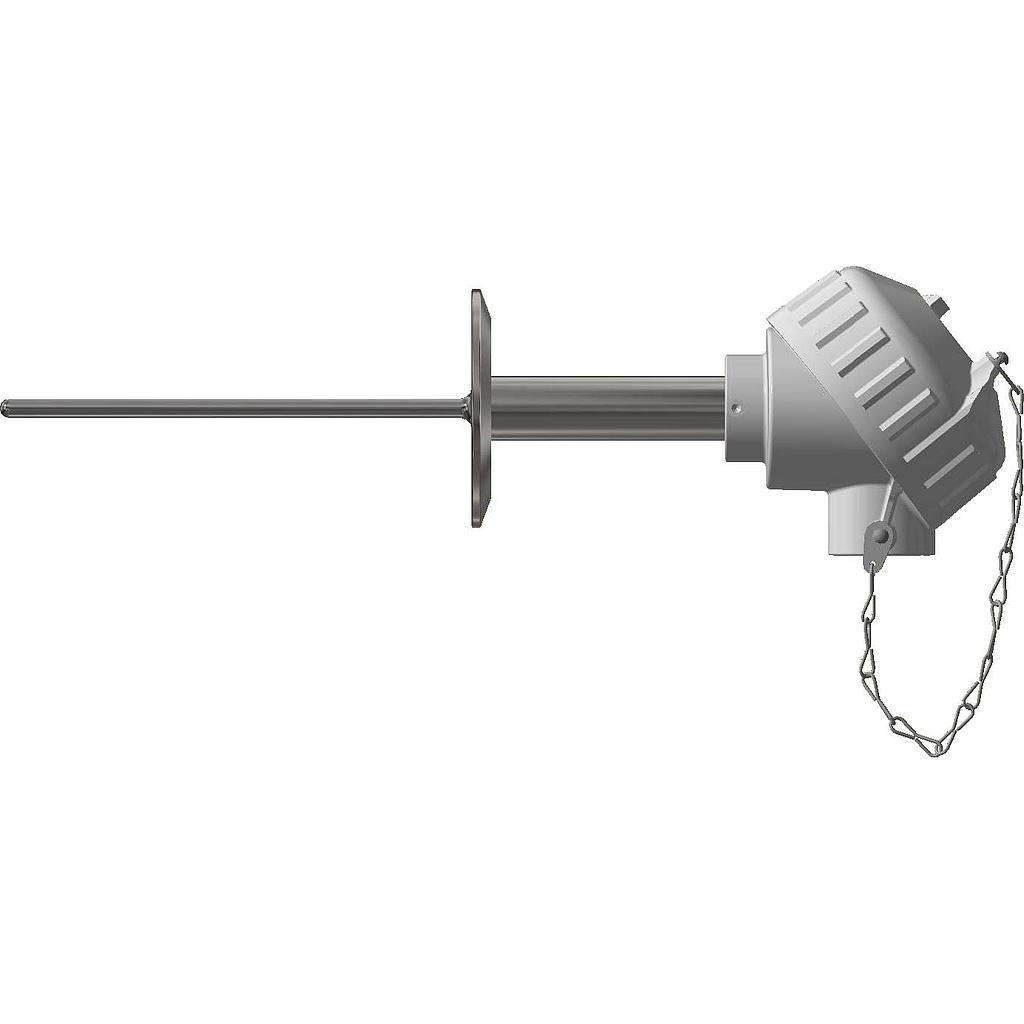

Sanitary Connected 3 Wire RTD, Tri-Clamp
Representative photo. Please check item description for details.

Sanitary Connected 3 Wire RTD, Tri-Clamp

https://www.branom.com/web/image/product.template/177314/image_1920?unique=c26756c
(0 review)

Sanitary Connected Sensor
- Single Element RTD
- 100 ohm Platinum
- Temperature Coefficient 0.00385 Ohms per Degree C
- Tolerance (1/5) Class B
- Temperature Range -30 to 150 Degrees C
- 1/4 Inch Diameter 316 Stainless Steel Sheath
- 3 Wire
- Sanitary Cap for 2 inch tube size
- 16 AMP Cap - Tri-Clamp
- Immersion Length: 3(1/2) Inches
- White Polypropylene Head


$ 256.00 256.0 USD $ 256.00

$ 256.00

Not Available For Sale

  • Measurement Maximum
  • Stem Length
  • Measurement Minimum

This combination does not exist.

Contact Us

Share

Sanitary Connected Sensor
- Single Element RTD
- 100 ohm Platinum
- Temperature Coefficient 0.00385 Ohms per Degree C
- Tolerance (1/5) Class B
- Temperature Range -30 to 150 Degrees C
- 1/4 Inch Diameter 316 Stainless Steel Sheath
- 3 Wire
- Sanitary Cap for 2 inch tube size
- 16 AMP Cap - Tri-Clamp
- Immersion Length: 3(1/2) Inches
- White Polypropylene Head

Specifications

Measurement Maximum 150.0
Stem Length 3.5 in (88.9 mm)
Measurement Minimum -30
