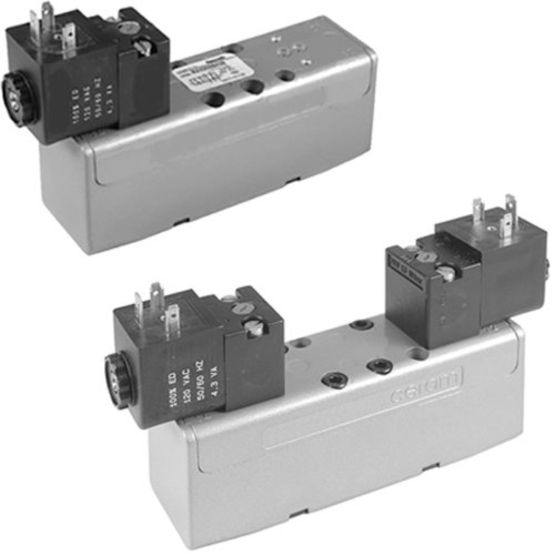

AVENTICS CERAM Series Directional Valve, 30 mm CNOMO, ISO 5599-1, 5/2 Directional Double Solenoid, Manual Override w/Detent
Features
- Activation: Electrically
- Nominal flow Qn: 1100 l/min
- Switching principle: 5/2, double solenoid
- Working pressure min.: 2 bar
- Working pressure max: 10.3 bar
- DC operating voltage: 24 V
- Voltage tolerance DC: -10% / +10%
- Manual override: with detent, without detent
- Electrical connection type: Plug
- Electrical connection size: EN 175301-803, form A
- Actuating control: Double Solenoid
- Sealing principle: Ceramic
- Standards: ISO 5599-1
- Pilot valve width: 30 mm CNOMO
- Frame size: ISO 1
- Valve plug connector: Without valve plug connector
- Connection type: Plate connection
- Blocking principle: Single base plate principle
- Can be assembled into blocks: Can be assembled into blocks
- Control pressure min.: 2 bar
- Control pressure max.: 10.3 bar
- Min. ambient temperature: -15 °C
- Max. ambient temperature: 66 °C
- Min. medium temperature: -15 °C
- Max. medium temperature: 66 °C:
