AVENTICS CERAM Series Directional Valve, 30 mm CNOMO, External Pilot, ISO 5599-1, 5/3 Directional Closed Center, Manual Override w/Detent

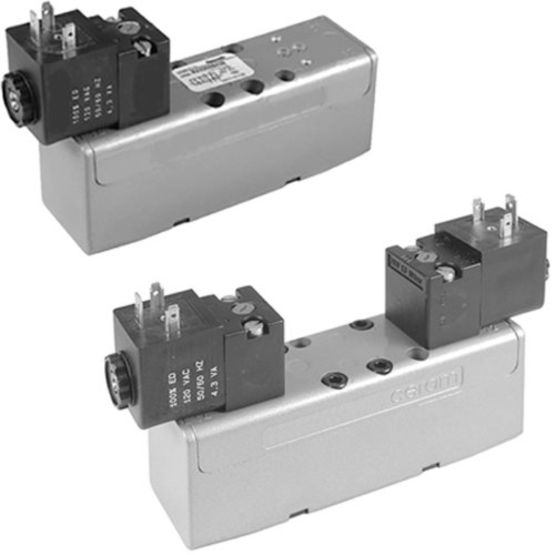

Representative photo. Please check item description for details.

AVENTICS CERAM Series Directional Valve, 30 mm CNOMO, External Pilot, ISO 5599-1, 5/3 Directional Closed Center, Manual Override w/Detent

https://www.branom.com/web/image/product.template/207500/image_1920?unique=c26756c
(0 review)

Features

  • Activation: Electrically
  • Nominal flow Qn: 2400 l/min
  • Switching principle: 5/3, closed center
  • Working pressure min.: 0 bar
  • Working pressure max: 10.3 bar
  • Manual override: with detent, without detent
  • Actuating control: Single Solenoid
  • Sealing principle: Ceramic
  • Pilot: External
  • Standards: ISO 5599-1
  • Pilot valve width: 30 mm CNOMO
  • Frame size: ISO 2
  • basic valve with electrical connector: Basic valve without coil
  • Valve plug connector: Without valve plug connector
  • Connection type: Plate connection
  • Blocking principle: Single base plate principle
  • Can be assembled into blocks: Can be assembled into blocks
  • Control pressure min.: -0.95 bar
  • Control pressure max.: 10.3 bar
  • Min. ambient temperature: -15 °C
  • Max. ambient temperature: 66 °C
  • Min. medium temperature: -15 °C
  • Max. medium temperature: 66 °C
  • Medium: Compressed air
  • Standard compressed air connection: according to ISO 5599-1:

$ 423.01 423.01 USD $ 423.01

$ 423.01

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
