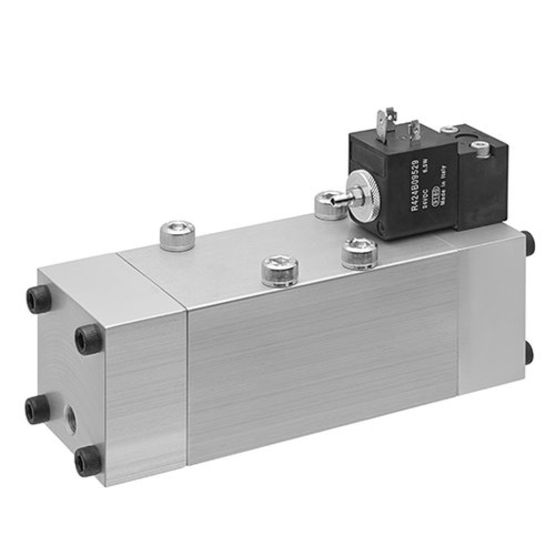

Representative photo. Please check item description for details.
AVENTICS HV30 Series Directional Valve, 110 VAC/VDC, Polyphenylene
The AVENTICS Series HV30 complies with the valve standard ISO 5599-1. Due to the level of flow and robustness, especially on high ambient temperatures, HV30 is the perfect valve for Aluminium applications.
Features
- Activation: Electrically
- Working pressure min.: 2 bar
- Working pressure max: 10 bar
- Operational voltage AC at 50 Hz: 110 V
- Operational voltage AC at 60 Hz: 110 V
- Frame size: ISO 3
- Min. ambient temperature: 10 °C
- Max. ambient temperature: 120 °C
- Min. medium temperature: 10 °C
- Max. medium temperature: 120 °C
- Medium: Compressed air
- Max. particle size: 5 µm
- Oil content of compressed air min.: 0 mg/m³
- Oil content of compressed air max.: 5 mg/m³
- Holding power AC 50 Hz: 5 VA
- Holding power AC 60 Hz: 4.2 VA
- Duty cycle: 100 %
- Connector standard: CNOMO / NFE 49-003-1
- Protection class with connection: IP65
- Weight: 0.18 kg
- Housing material: polyphenylene sulfide
- Seal material: Fluorocaoutchouc:
