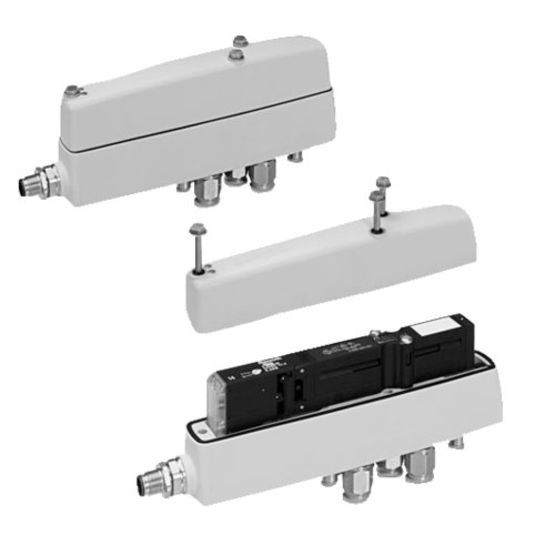

Representative photo. Please check item description for details.
AVENTICS CL03-EV Series Directional Valve, 16 mm, 5/2 Directional, Manual Override w/Detent
The AVENTICS Series CL03-EV spool valves are hygienically designed. They easily resist wet cleaning with aggressive cleaning detergents. The Series complies with protection class IP69K, is suitable for class NSF-H1 lubricants and designed for intensive application in the food and beverage industry.
Features
- Activation: Electrically
- Nominal flow Qn: 700 l/min
- Switching principle: 5/2
- Compressed air connection output: Ø 8
- Working pressure min.: -0.9 bar
- Working pressure max: 10 bar
- DC operating voltage: 24 V
- Voltage tolerance DC: -15% / +20%
- Manual override: with detent
- Actuating control: Double Solenoid
- Sealing principle: Soft Seal
- Pilot: External
- Certificates: UR (Underwriters Laboratories)
- Pilot valve width: 16 mm
- Valve type: Spool valve, positive overlapping
- Connection type: Plate connection
- Blocking principle: Single base plate principle
- suitable for use in food processing: suitable for use in food processing
- Control pressure min.: 3 bar
- Control pressure max.: 10 bar
- Min. ambient temperature: 0 °C
- Max. ambient temperature: 50 °C
- Min. medium temperature: 0 °C
- Max. medium temperature: 50 °C
- Medium: Compressed air:
