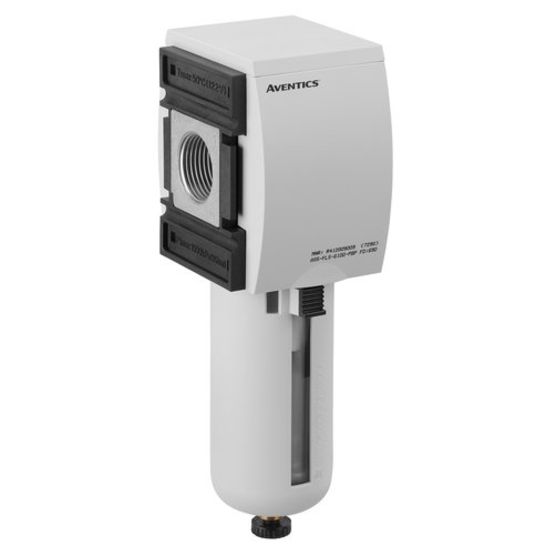

AVENTICS AS5-FLS Series Standard Filter, Die Cast Zinc Reservoir, 1.5 to 16 bar, Fully Automatic, Open w/o Pressure, G 3/4
Features
- Type: Standard filter
- Parts: Filter
- Reservoir: reservoir, metal, with inspection glass
- Port: G 3/4
- Filter porosity: 5 µm
- Nominal flow Qn: 7800 l/min
- Condensate drain: fully automatic, open without pressure
- Working pressure min.: 1.5 bar
- Working pressure max: 16 bar
- Min. ambient temperature: -10 °C
- Max. ambient temperature: 50 °C
- Medium: Compressed air, Neutral gases
- Max. achievable compressed air class acc. to ISO 8573-1:2010: 6 : 7 : -
- Filter reservoir volume: 87 cm³
- Filter element: exchangeable
- Weight: 1.26 kg
- inspection glass: with window
- Mounting orientation: vertical
- Type: Can be assembled into blocks
- Housing material: Polyamide
- Material front plate: Acrylonitrile butadiene styrene
- Seal material: Acrylonitrile butadiene rubber
- Material threaded bushing: Die cast zinc
- Material reservoir: Die cast zinc
- Material filter insert: Polyethylene:
