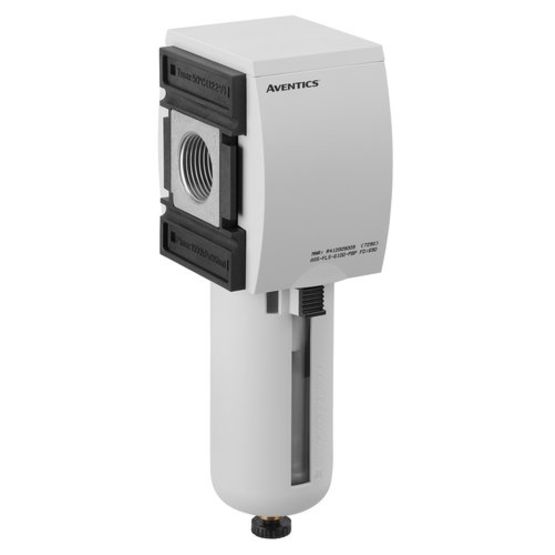

AVENTICS AS5-FLS Series Standard Filter, Polycarbonate Reservoir, 1.5 to 16 bar, Fully Automatic, Open w/o Pressure, G 3/4
Representative photo. Please check item description for details.

AVENTICS AS5-FLS Series Standard Filter, Polycarbonate Reservoir, 1.5 to 16 bar, Fully Automatic, Open w/o Pressure, G 3/4

https://www.branom.com/web/image/product.template/207533/image_1920?unique=c26756c
(0 review)

Features

  • Type: Standard filter
  • Parts: Filter
  • Reservoir: reservoir, polycarbonate, with PA protective guard
  • Port: G 3/4
  • Filter porosity: 5 µm
  • Nominal flow Qn: 7800 l/min
  • Condensate drain: fully automatic, open without pressure
  • Working pressure min.: 1.5 bar
  • Working pressure max: 16 bar
  • Min. ambient temperature: -10 °C
  • Max. ambient temperature: 50 °C
  • Medium: Compressed air, Neutral gases
  • Max. achievable compressed air class acc. to ISO 8573-1:2010: 6 : 7 : -
  • Filter reservoir volume: 87 cm³
  • Filter element: exchangeable
  • Weight: 0.769 kg
  • Mounting orientation: vertical
  • Type: Can be assembled into blocks
  • Housing material: Polyamide
  • Material front plate: Acrylonitrile butadiene styrene
  • Seal material: Acrylonitrile butadiene rubber
  • Material threaded bushing: Die cast zinc
  • Material reservoir: Polycarbonate
  • Material protective guard: Polyamide
  • Material filter insert: Polyethylene:

$ 499.75 499.75 USD $ 499.75

$ 499.75

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
