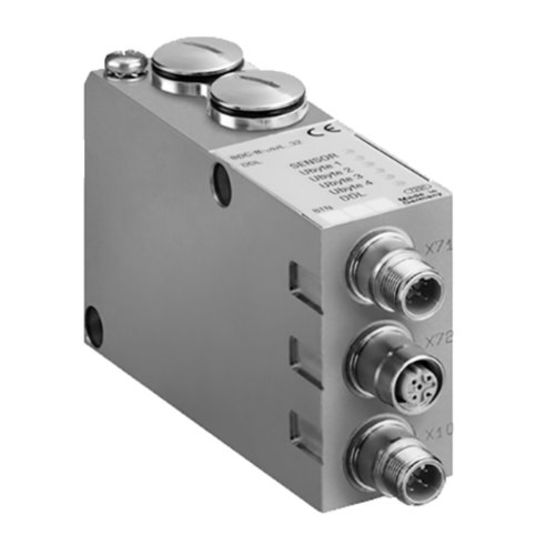

AVENTICS AS-i Series Bus Coupler, Aluminum, AS-i, 24 VDC, 0.08 A, 8 I/O, B-Design
Representative photo. Please check item description for details.

AVENTICS AS-i Series Bus Coupler, Aluminum, AS-i, 24 VDC, 0.08 A, 8 I/O, B-Design

https://www.branom.com/web/image/product.template/207772/image_1920?unique=c26756c
(0 review)

The AVENTICS Series BDC bus couplers can be used with a variety of valve systems within the HF-LG family. If you do not require I/O-modules, BDC is the ideal solution.

Features

  • Version: Bus coupler with driver
  • I/O module version: 8DO-AUX
  • Fieldbus protocol: AS-i
  • Number of I/O connections: 8 outputs
  • E/A capable: connection without I/O
  • Electrical connection size: Black AS-i flat cable
  • Fieldbus design: B-design
  • Min. ambient temperature: 0 °C
  • Max. ambient temperature: 50 °C
  • Number of solenoid coils max.: 8
  • Power consumption electronics: 0.08 A
  • Operating voltage, actuators: 24 V DC
  • Protection class: IP65
  • Max. power consumption per coil: 0.03 mA
  • I/O Code: 8
  • ID Code / ID2 Code: F / E
  • Generic emission standard in accordance with norm: EN 50295
  • Generic immunity standard in accordance with norm: EN 50295
  • Communication port: Yellow AS-i flat cable
  • Weight: 0.14 kg
  • Housing material: Aluminum, Die-cast aluminum:

$ 1,696.11 1696.11 USD $ 1,696.11

$ 1,696.11

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share
