PT41 Series High Pressure, Fixed Range Pressure Transmitter

https://www.branom.com/web/image/product.template/535777/image_1920?unique=c26756c
(0 review)

Features

  • Gauge ranges from 23,000 psig to 145,000 psig
  • Current and voltage outputs available
  • Elgiloy and 17-4PH Stainless Steel wetted parts
  • CE compliant to suppress RFI, EMI and ESD
  • RoHS compliant

WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov


$ 1,660.87 1660.87 USD $ 1,660.87

$ 1,580.84

Not Available For Sale

  • Pressure Range
  • Accuracy
  • Output Signal
  • Process Connection
  • Electrical Connection
  • Transmitters: Housing Material
  • Transmitters: Process Connection Material
  • Transmitters: Measuring Element Material
  • Transmitters: Measuring Element Material
  • Transmitters: IP Rating
  • Transmitters: IP Rating
  • Transmitters: Response Time
  • Transmitters: Adjustment

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Datasheet 2

Share

Features

  • Gauge ranges from 23,000 psig to 145,000 psig
  • Current and voltage outputs available
  • Elgiloy and 17-4PH Stainless Steel wetted parts
  • CE compliant to suppress RFI, EMI and ESD
  • RoHS compliant

WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

Noshok PT41 Series
Pressure Range [23000psig] 0 pisg to 23,000 psig, [30000psig] 0 psig to 30,000 psig, [36000psig] 0 psig to 36,000 psig, [58000psig] 0 psig to 58,000 psig, [72000psig] 0 psig to 72,000 psig, [87000psig] 0 psig to 87,000 psig, [100000psig] 0 psig to 100,000 psig, [115000psig] 0 psig to 115,000 psig, [145000psig] 0 psig to 145,000 psig
Accuracy [1] ±0.5% Full Scale, [2] ±0.25% Full Scale
Output Signal [1] 4 mA to 20 mA, 2-wire, [2] 0 Vdc to 5 Vdc, 30wire, [5] 0 Vdc to 10 Vdc.3-wire
Process Connection [6] 9/16-18 UNF 3B high pressure cone (female), [51] M20 x 1.5 female thread with sealing cone

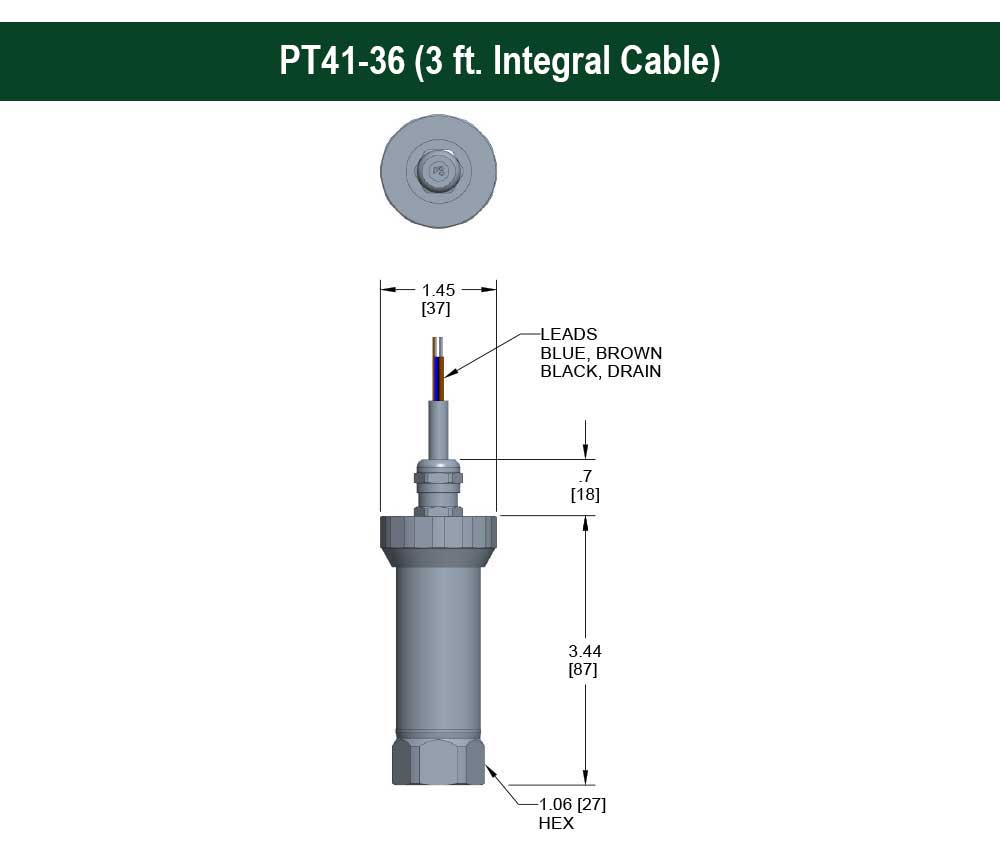

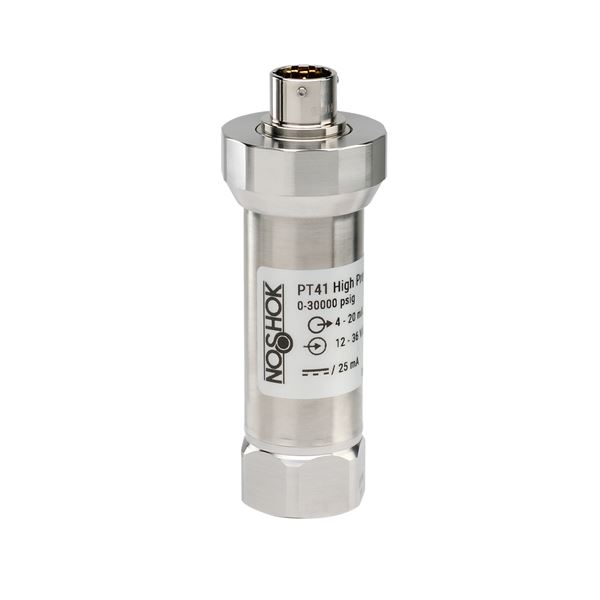

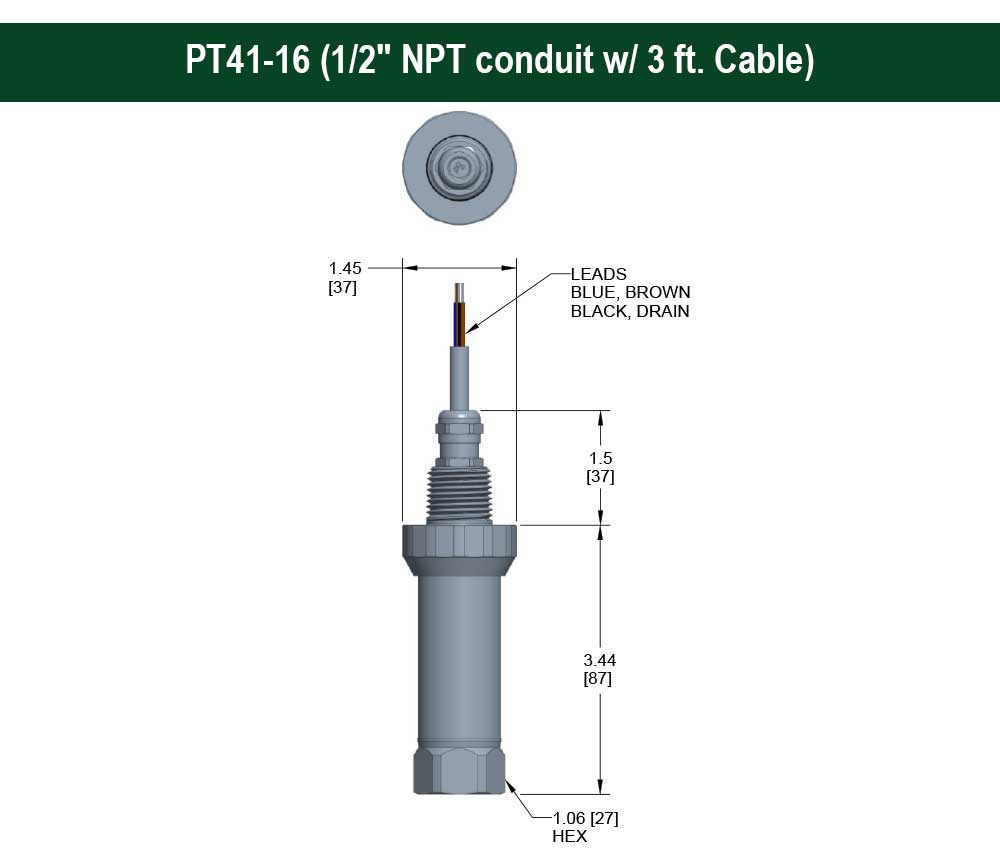

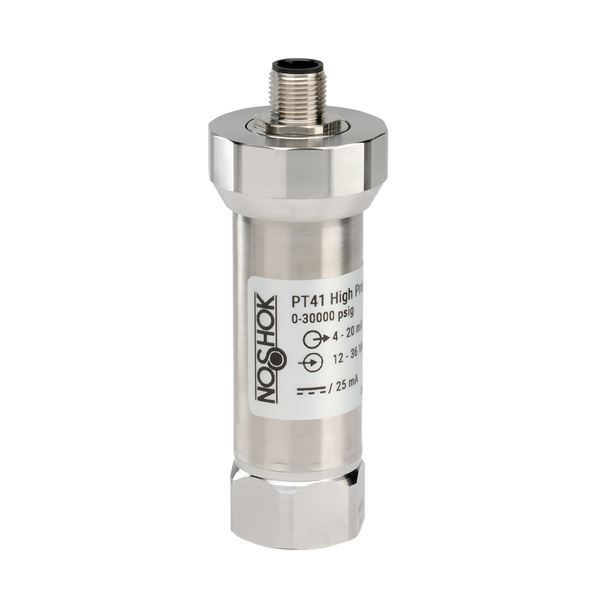

Electrical Connection [3] 6-Pin Bayonet, [8] DIN EN 175301-803 Form A, [16] 1/2 NPT Conduit w/ 3 ft. cable, [14] DIN EN 175301-803 Form A w/ 1/2" NPT female conduit, [18] DIN EN 175301-803 Form A w/ 3 ft. cable, [25] M12 x 1 (4-pin), [36] 3 ft. integral cable
Transmitter Features
Transmitters: Housing Material 316 SS
Transmitters: Process Connection Material 17-4PH SS
Transmitters: Measuring Element Material Elgiloy, 17-4PH SS
Transmitters: IP Rating IP65, IP67
Transmitters: Response Time < 1ms
Transmitters: Adjustment ±10% FS
