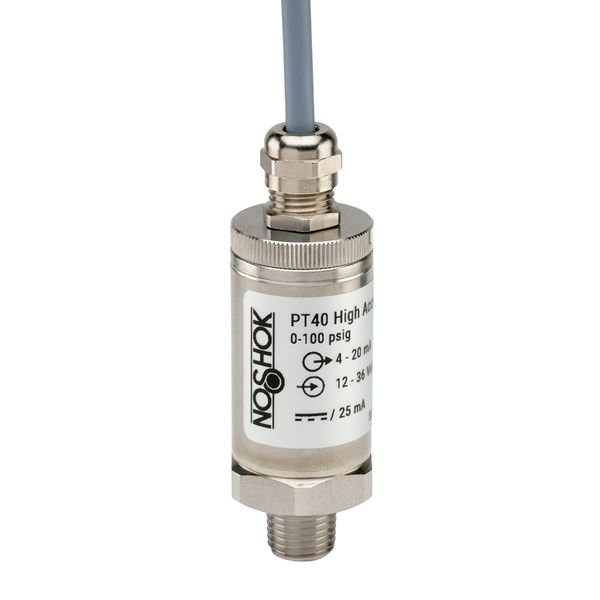

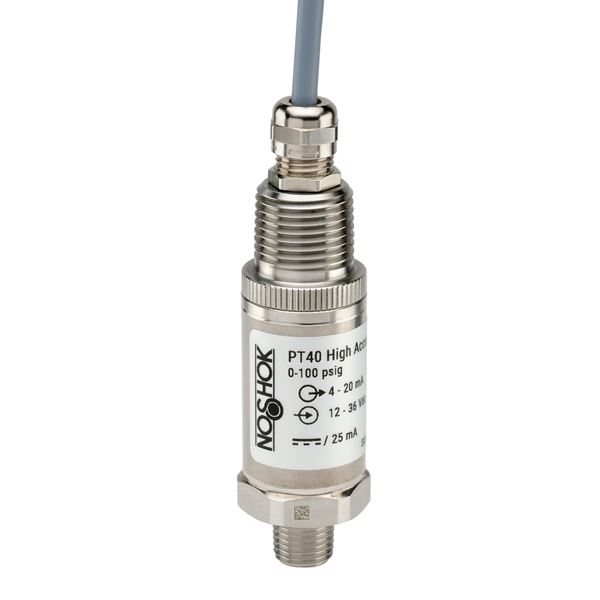

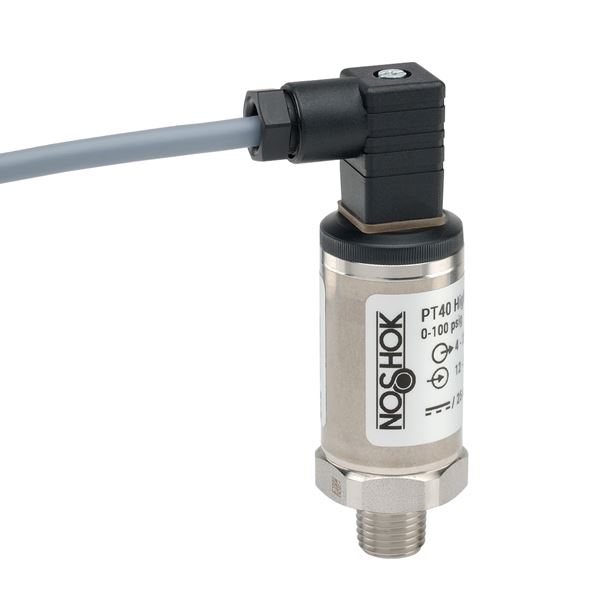

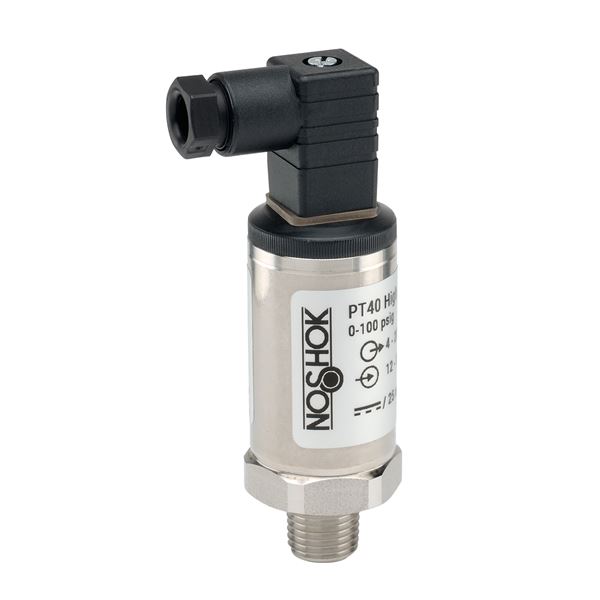

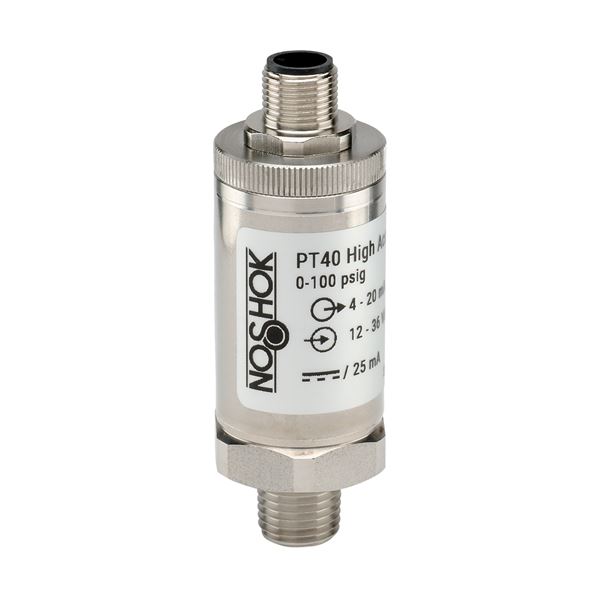

PT40 Series High Accuracy, Fixed Range Pressure Transmitter
Features
- Gauge, compound, absolute and vacuum ranges from 2 psig to 15,000 psig
- Premium accuracy
- Current and voltage outputs available
- 316 and 17-4PH Stainless Steel wetted parts
- CE compliant to suppress RFI, EMI and ESD
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Features
- Gauge, compound, absolute and vacuum ranges from 2 psig to 15,000 psig
- Premium accuracy
- Current and voltage outputs available
- 316 and 17-4PH Stainless Steel wetted parts
- CE compliant to suppress RFI, EMI and ESD
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Alternative Products
Specifications
| Noshok PT40 Series | |
|---|---|
| Unit of Measure | psig, psia |
| Pressure Range | [15psiv] -15 psig to 0 psig, [15psic] -15 psig to 15 psig, [30psic] -15 psig to 30 psig, [60psic] -15 psig to 60 psig, [100psic] -15 psig to 100 psig, [200psic] -15 psig to 200 psig, [300psic] -15 psig to 300 psig, [2psig] 0 psig to 2 psig, [3psig] 0 psig to 3 psig, [5psig] 0 psig to 5 psig, [10psig] 0 psig to 10 psig, [15psig] 0 psig to 15 psig, [30psig] 0 psig to 30 psig, [60psig] 0 psig to 60 psig, [100psig] 0 psig to 100 psig, [150psig] 0 psig to 150 psig, [200psig] 0 psig to 200 psig, [300psig] 0 psig to 300 psig, [500psig] 0 psig to 500 psig, [600psig] 0 psig to 600 psig, [750psig] 0 psig to 750 psig, [1000psig] 0 psig to 1,000 psig, [1500psig] 0 psig to 1,500 psig, [2000psig] 0 psig to 2,000 psig, [3000psig] 0 psig to 3,000 psig, [4000psig] 0 psig to 4,000 psig, [5000psig] 0 psig to 5,000 psig, [6000psig] 0 psig to 6,000 psig, [7500psig] 0 psig to 7,500 psig, [10000psig] 0 psig to 10,000 psig, [15000psig] 0 psia to 15,000 psig, [15psia] 0 psia to 15 psia, [30psia] 0 psia to 30 psia, [60psia] 0 psia to 60 psia, [100psia] 0 psia to 100 psia, [150psia] 0 psia to 150 psia, [200psia] 0 psia to 200 psia, [300psia] 0 psia to 300 psia |
| Accuracy | [1] ±0.25% Full Scale, [2] ±0.125% Full Scale |
| Output Signal | [1] 4 mA to 20 mA, 2-wire, [2] 0 Vdc to 5 Vdc, 3-wire, [3] 1 Vdc to 5 Vdc, 3-wire, [5] 0 Vdc to 10 Vdc, 3-wire |
| Process Connection | [2] 1/4" NPT Male, [8] 1/2" NPT Male, [10] G 1/4 B EN837, [11] G 1/2 B Front flush (for ranges with span ≥30 psi), [13] G 1 B Front flush (for ranges with span <30 psi), [45] 7/16-20 SAE J514 FIG 34B (Non-Adjustable), [83] G 1/2 B EN837 |
| Electrical Connection | [2] 4-pin Bayonet, [3] 6-pin Bayonet, [7] DIN EN 175301-803 Form C, [8] DIN EN 175301-803 Form A, [16] 1/2" NPT Conduit w/ 3 ft. cable, [17] DIN EN 175301-803 Form C w/ 3 ft. cable, [25] M12 x 1 (4-pin), [36] Integral 3 ft. Cable, [70] DIN EN 175301-803 Form C w/o mating connector |
| Optional Threaded Orifice | Without, [ST8] SS Threaded Orifice |
| Transmitter Features | |
|---|---|
| Transmitters: Housing Material | 316 SS |
| Transmitters: Process Connection Material | 316 SS |
| Transmitters: Measuring Element Material | 316 SS, 17-4PH SS |
| Transmitters: IP Rating | IP65, IP67 |
| Transmitters: Service Life | > 100 million load cycles |
| Transmitters: Response Time | < 1ms |
| Transmitters: Adjustment | ±10% FS |
