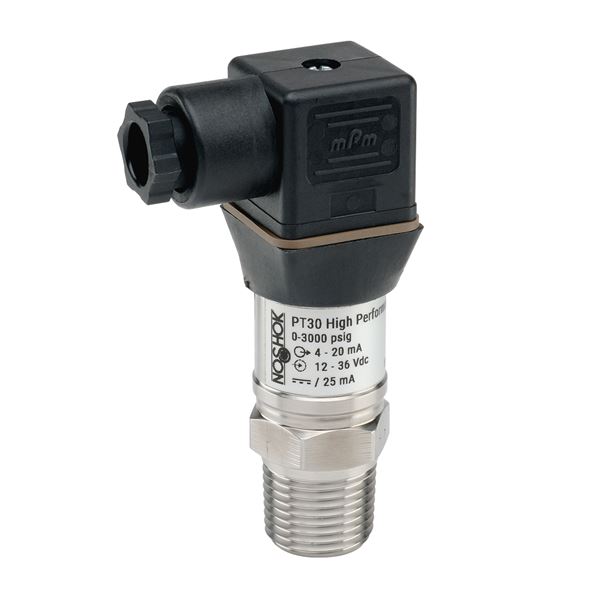

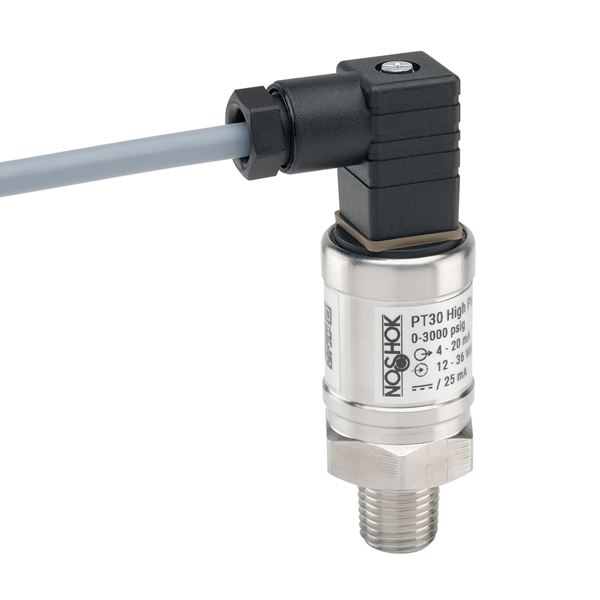

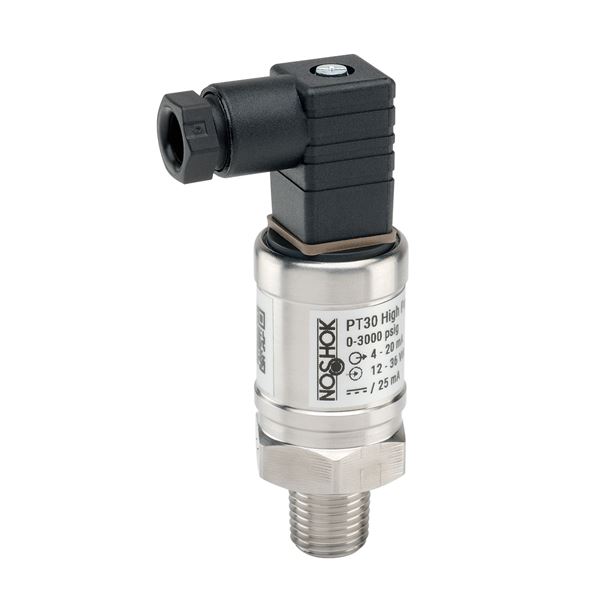

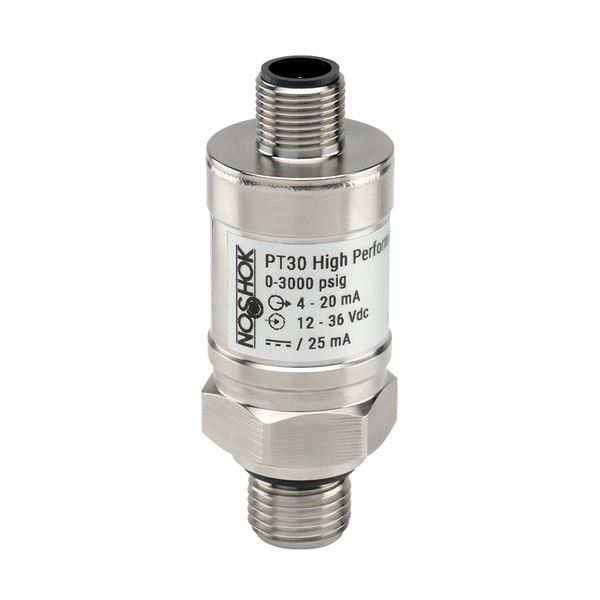

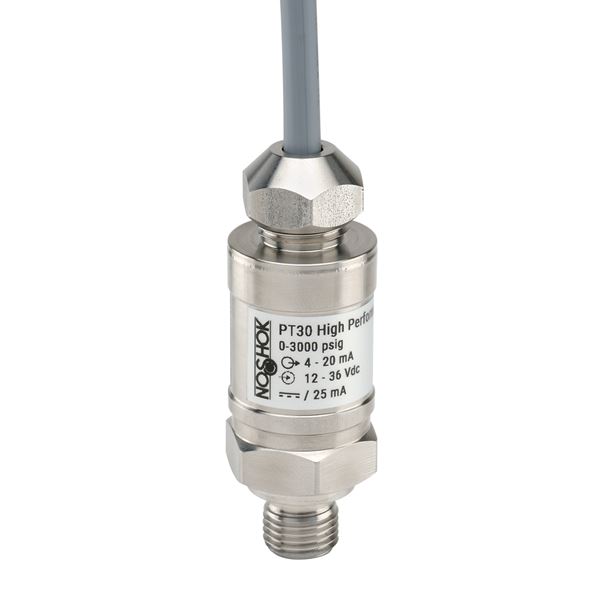

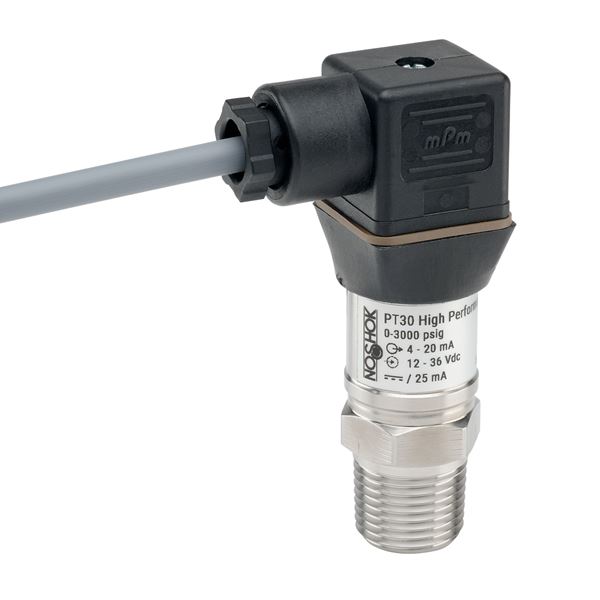

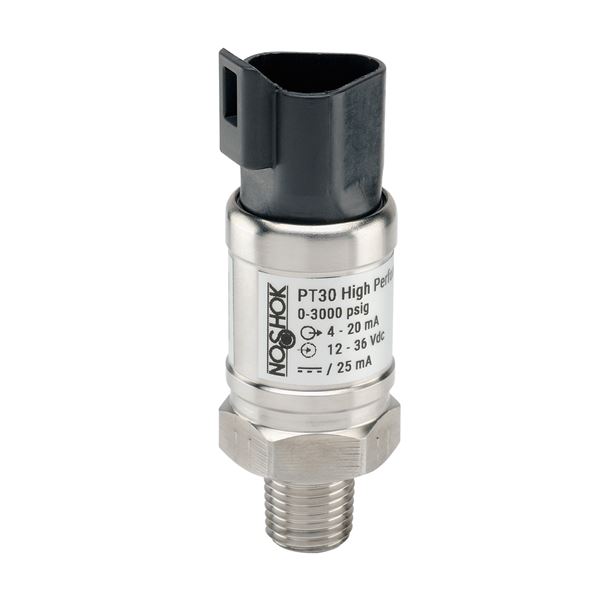

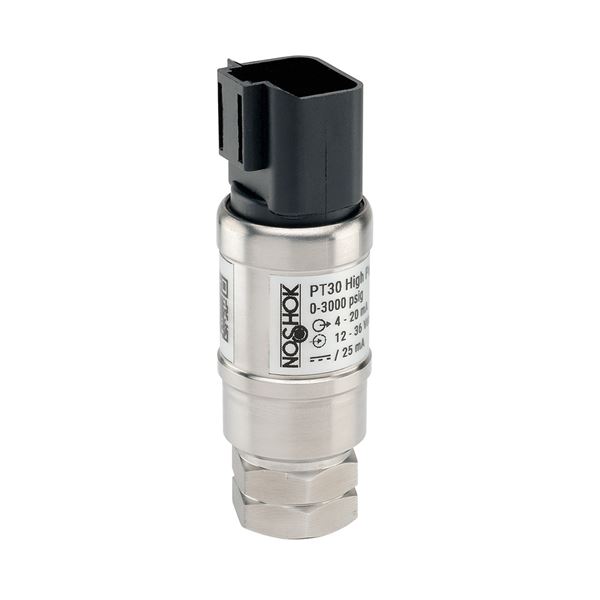

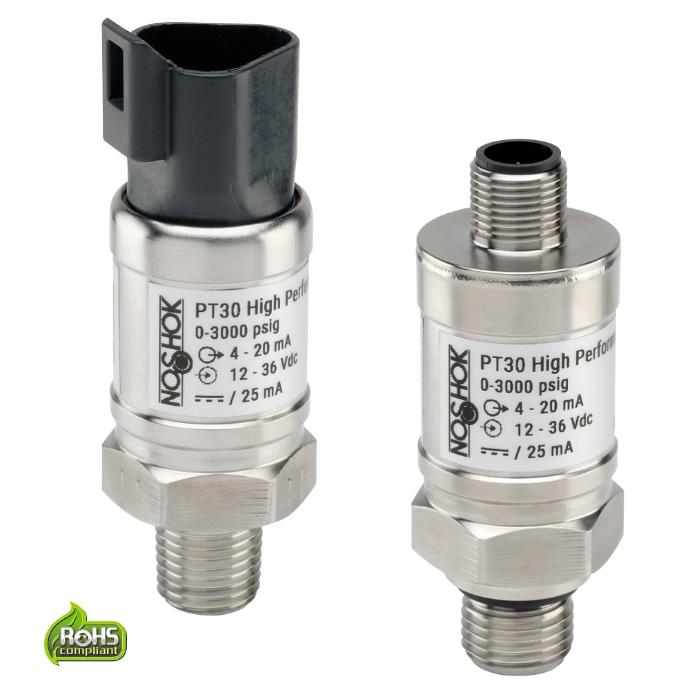

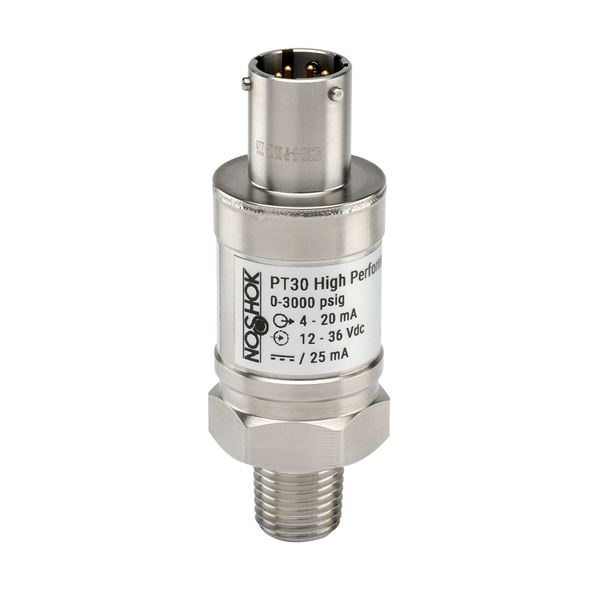

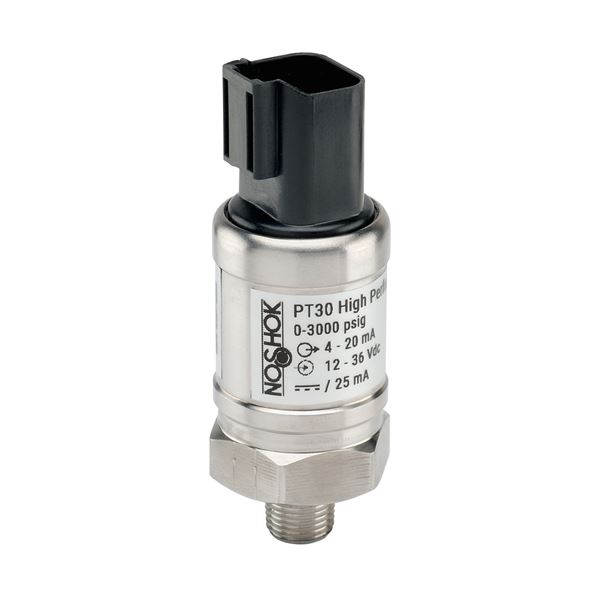

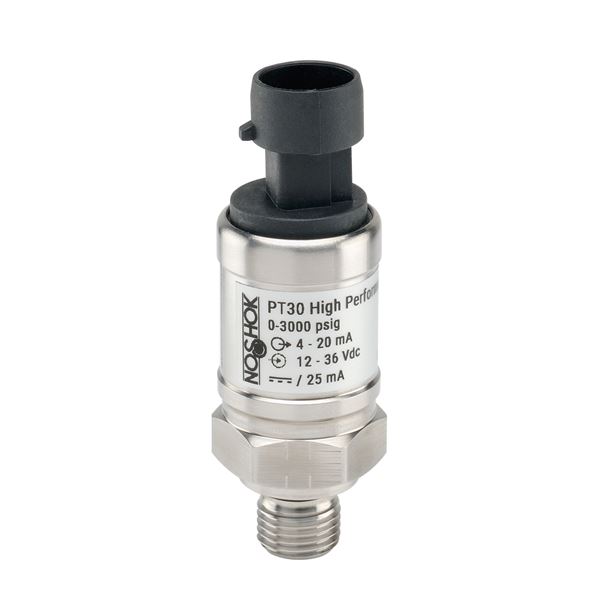

PT30 Series High Performance, Fixed Range Pressure Transmitter

https://www.branom.com/web/image/product.template/535775/image_1920?unique=c26756c
(0 review)

Features

  • Gauge, compound, absolute and vacuum ranges from 2 psig to 15,000 psig
  • Premium accuracy
  • Compact size
  • Current and voltage outputs available
  • 316 Stainless Steel wetted parts
  • RoHS compliant
  • CE compliant to suppress RFI, EMI and ESD
  • cULus pending

WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov


$ 335.82 335.82 USD $ 335.82

$ 295.45

Not Available For Sale

  • Unit of Measure
  • Pressure Range
  • Accuracy
  • Output Signal
  • Process Connection
  • Electrical Connection
  • Optional Threaded Orifice
  • Transmitters: Housing Material
  • Transmitters: Process Connection Material
  • Transmitters: Electrical Connection Material
  • Transmitters: Electrical Connection Material
  • Transmitters: Measuring Element Material
  • Transmitters: IP Rating
  • Transmitters: IP Rating
  • Transmitters: IP Rating
  • Transmitters: Service Life
  • Transmitters: Response Time
  • Transmitters: Proof pressure < 7,500 psi
  • Transmitters: Proof pressure 7500 – 10,000 psi
  • Transmitters: Proof pressure ≥ 10,000 psi
  • Transmitters: Burst pressure < 7,500 psi
  • Transmitters: Burst pressure ≥ 7,500 psi
  • Transmitters: Burst pressure 7,500 – 10,000 psi
  • Transmitters: Burst pressure > 10,000 psi

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Datasheet 2

Share

Features

  • Gauge, compound, absolute and vacuum ranges from 2 psig to 15,000 psig
  • Premium accuracy
  • Compact size
  • Current and voltage outputs available
  • 316 Stainless Steel wetted parts
  • RoHS compliant
  • CE compliant to suppress RFI, EMI and ESD
  • cULus pending

WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

Noshok PT30 Series
Unit of Measure psig, psia
Pressure Range [15psiv] -15 psig to 0 psig, [15psic] -15 psig to 15 psig, [30psic] -15 psig to 30 psig, [60psic] -15 psig to 60 psig, [100psic] -15 psig to 100 psig, [200psic] -15 psig to 200 psig, [300psic] -15 psig to 300 psig, [2psig] 0 psig to 2 psig, [5psig] 0 psig to 5 psig, [10psig] 0 psig to 10 psig, [15psig] 0 psig to 15 psig, [30psig] 0 psig to 30 psig, [60psig] 0 psig to 60 psig, [100psig] 0 psig to 100 psig, [150psig] 0 psig to 150 psig, [200psig] 0 psig to 200 psig, [300psig] 0 psig to 300 psig, [500psig] 0 psig to 500 psig, [600psig] 0 psig to 600 psig, [750psig] 0 psig to 750 psig, [1000psig] 0 psig to 1,000 psig, [1500psig] 0 psig to 1,500 psig, [2000psig] 0 psig to 2,000 psig, [3000psig] 0 psig to 3,000 psig, [4000psig] 0 psig to 4,000 psig, [5000psig] 0 psig to 5,000 psig, [6000psig] 0 psig to 6,000 psig, [7500psig] 0 psig to 7,500 psig, [10000psig] 0 psig to 10,000 psig, [15000psig] 0 psig to 15,000 psig, [15psia] 0 psia to 15 psia, [30psia] 0 psia to 30 psia, [60psia] 0 psia to 60 psia, [100psia] 0 psia to 100 psia, [150psia] 0 psia to 150 psia, [200psia] 0 psia to 200 psia, [300psia] 0 psia to 300 psia
Output Signal [1] 4 mA to 20 mA, 2 wire, [2] 0 Vdc to 5 Vdc, 3 wire, [3] 1 Vdc to 5 Vdc, 3 wire, [5] 0 Vdc to 10 Vdc, 3 wire, [13] 0.5 Vdc to 4.5 Vdc, 3 wire (ratiometric), [31] 0.5 Vdc to 4.5 Vdc, 3 wire (non-ratiometric)
Process Connection [1] 1/8" NPT Male, [2] 1/4" NPT Male, [8] 1/2” NPT Male, [24] 7/16-20 Female Schrader, [46] G 1/4 A Male ISO 1179-2, [50] 7/16-20 Male SAE -4 (J1926-2), [72] 9/16-18 Male SAE -6 (J1926-2)

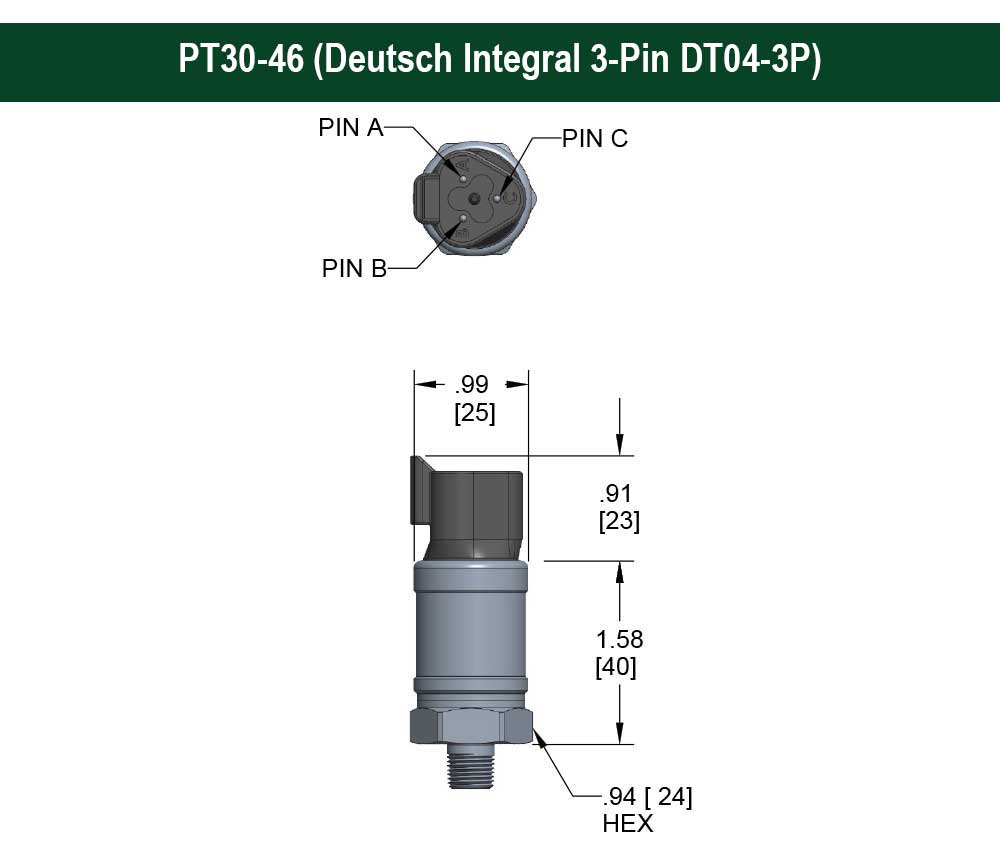

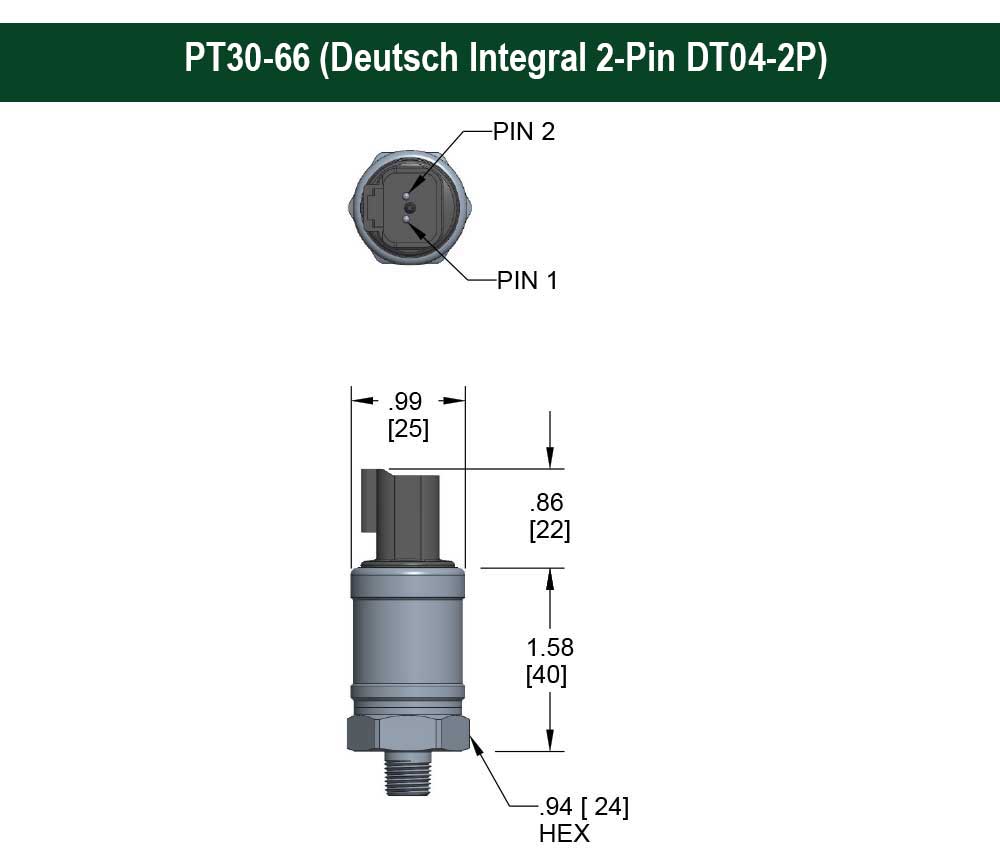

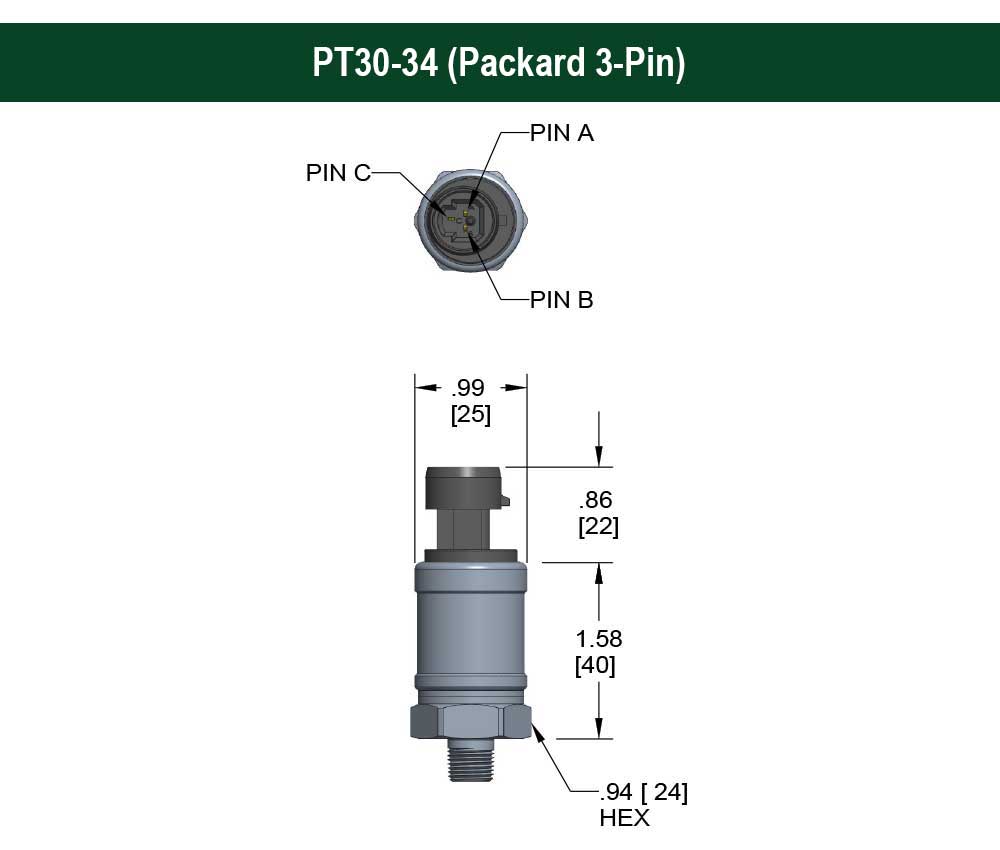

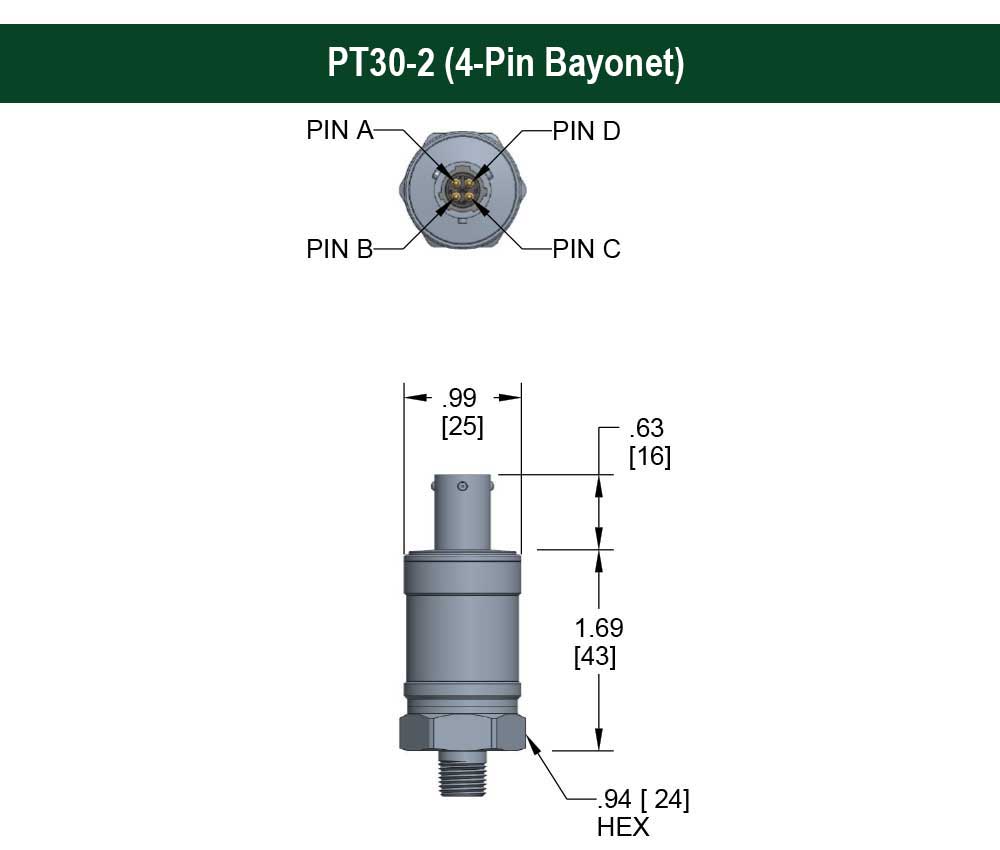

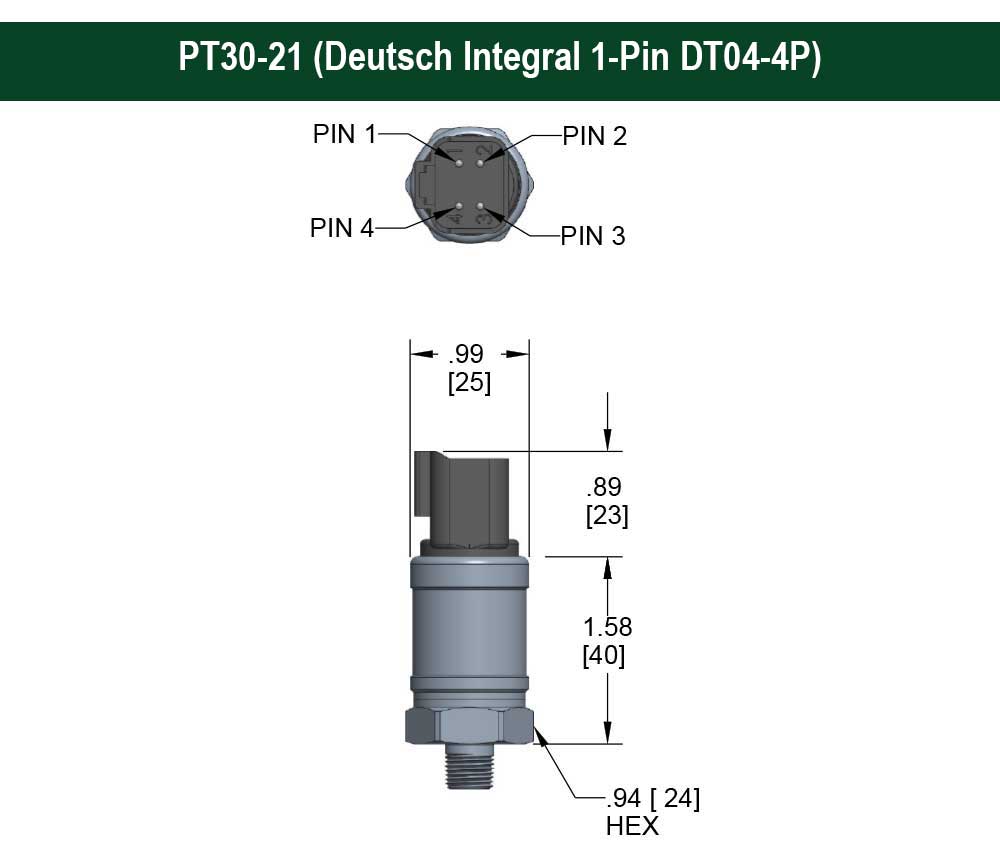

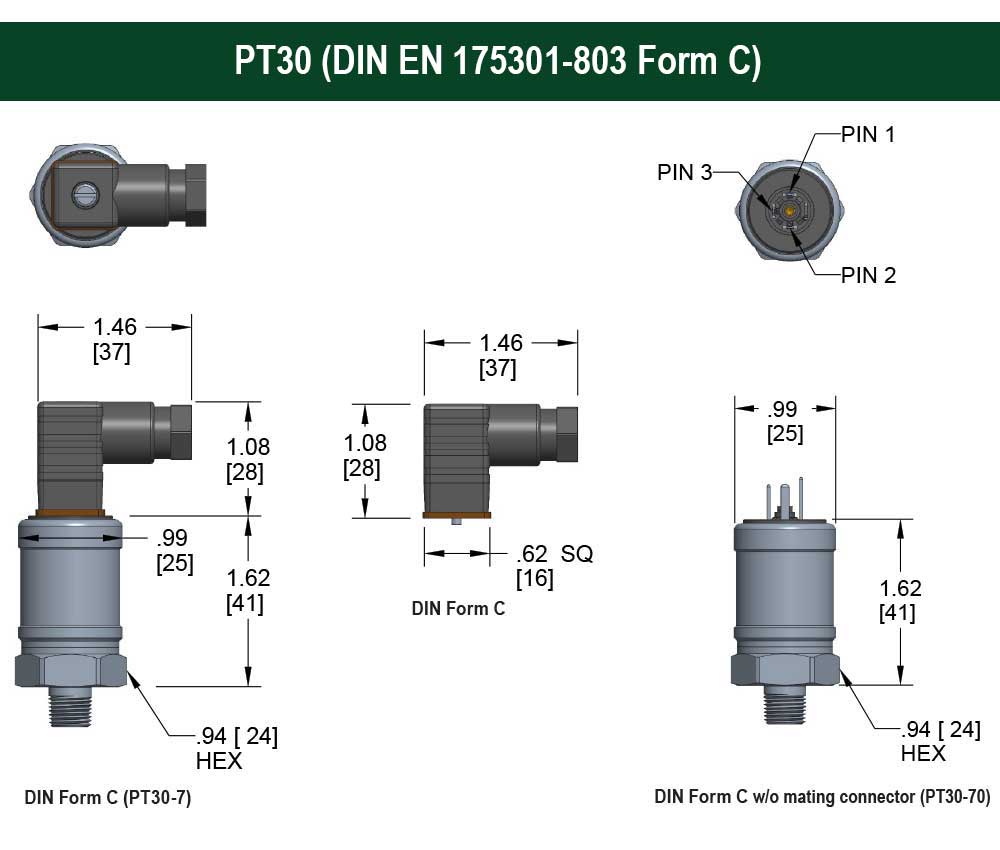

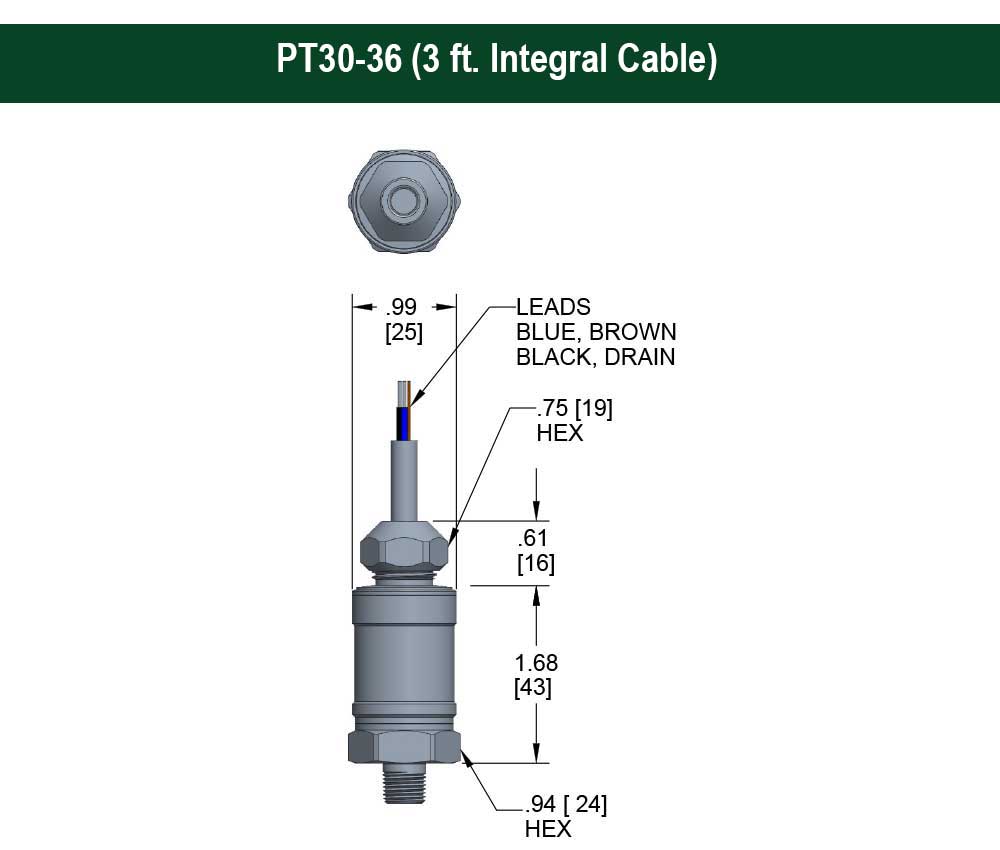

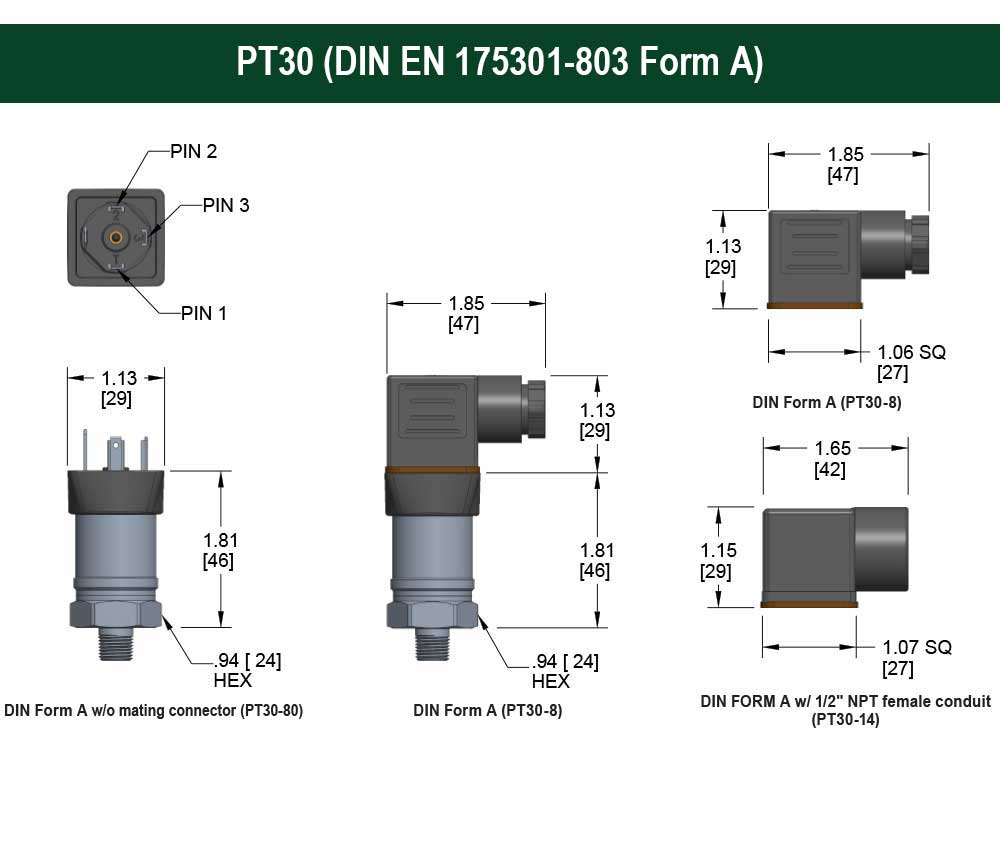

Electrical Connection [2] 4-pin Bayonet, [3] 6-pin Bayonet, [7] DIN EN 175301-803 Form C, [8] DIN EN 175301-803 Form A, [14] DIN EN 175301-803 Form A w/ 1/2 NPT female conduit, [17] DIN EN 175301-803 Form C w/ 3 ft. cable, [18] DIN EN 175301-803 Form A w/ 3 ft. cable, [21] Deutsch Integral 4-Pin (DT04-4P), [25] M12 x 1 (4-pin), [34] Packard 3-Pin, [36] Integral Cable 36", [36-30] Integral Cable 30ft, [46] Deutsch Integral 3-Pin (DT04-3P), [66] Deutsch Integral 2-Pin (DT04-2P), [70] DIN EN 175301-803 Form C w/o mating connector, [80] DIN EN 175301-803 Form A w/o mating connector
Optional Threaded Orifice Without, [ST8] SS Threaded Orifice
Accuracy [1] ±0.25% Full Scale
Transmitter Features
Transmitters: Housing Material 304 SS
Transmitters: Process Connection Material 316 SS
Transmitters: Electrical Connection Material SS, Glass Filled PA
Transmitters: Measuring Element Material 316 SS
Transmitters: IP Rating IP65, IP67, IP68
Transmitters: Service Life > 10 million load cycles
Transmitters: Response Time < 1ms
Transmitters: Proof pressure < 7,500 psi 2x FS
Transmitters: Proof pressure 7500 – 10,000 psi 1.5x FS
Transmitters: Proof pressure ≥ 10,000 psi 1.2x FS
Transmitters: Burst pressure < 7,500 psi 3x FS
Transmitters: Burst pressure ≥ 7,500 psi 2x FS
Transmitters: Burst pressure 7,500 – 10,000 psi 2x FS
Transmitters: Burst pressure > 10,000 psi 1.5x FS
