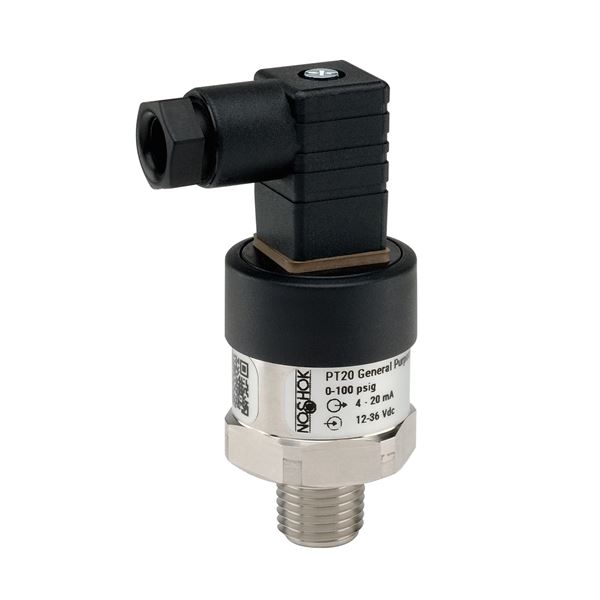

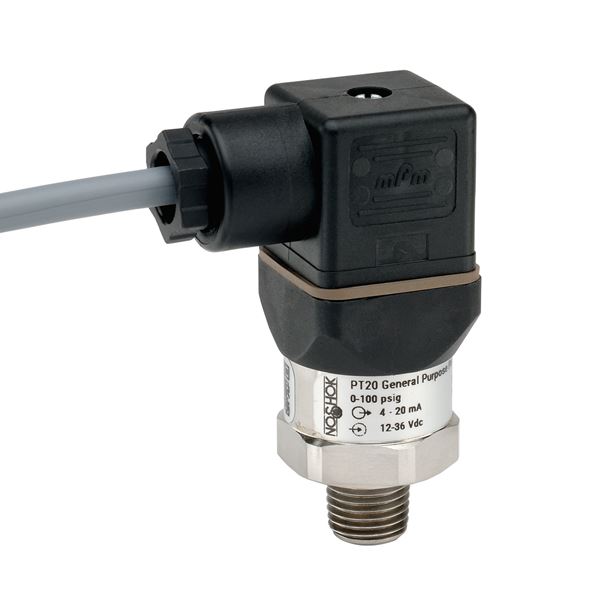

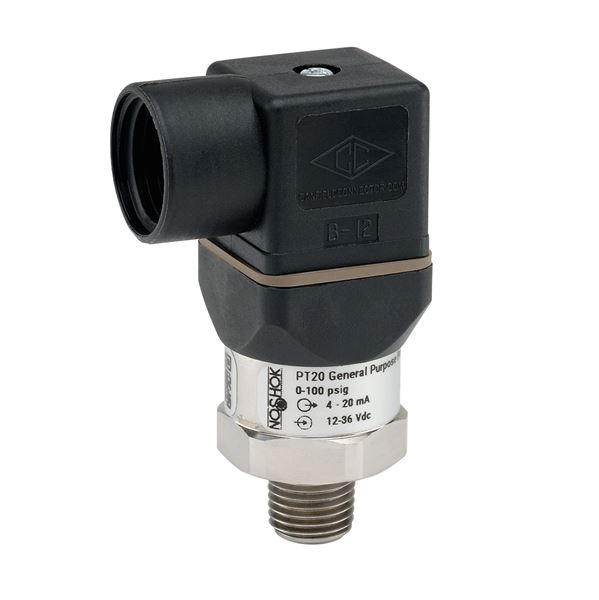

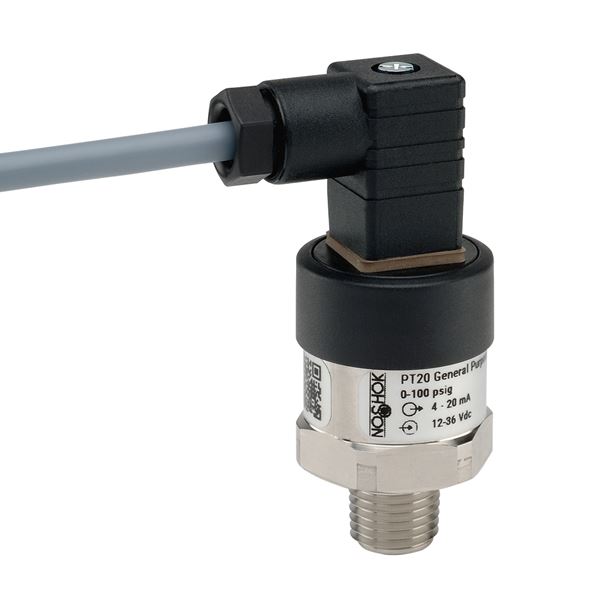

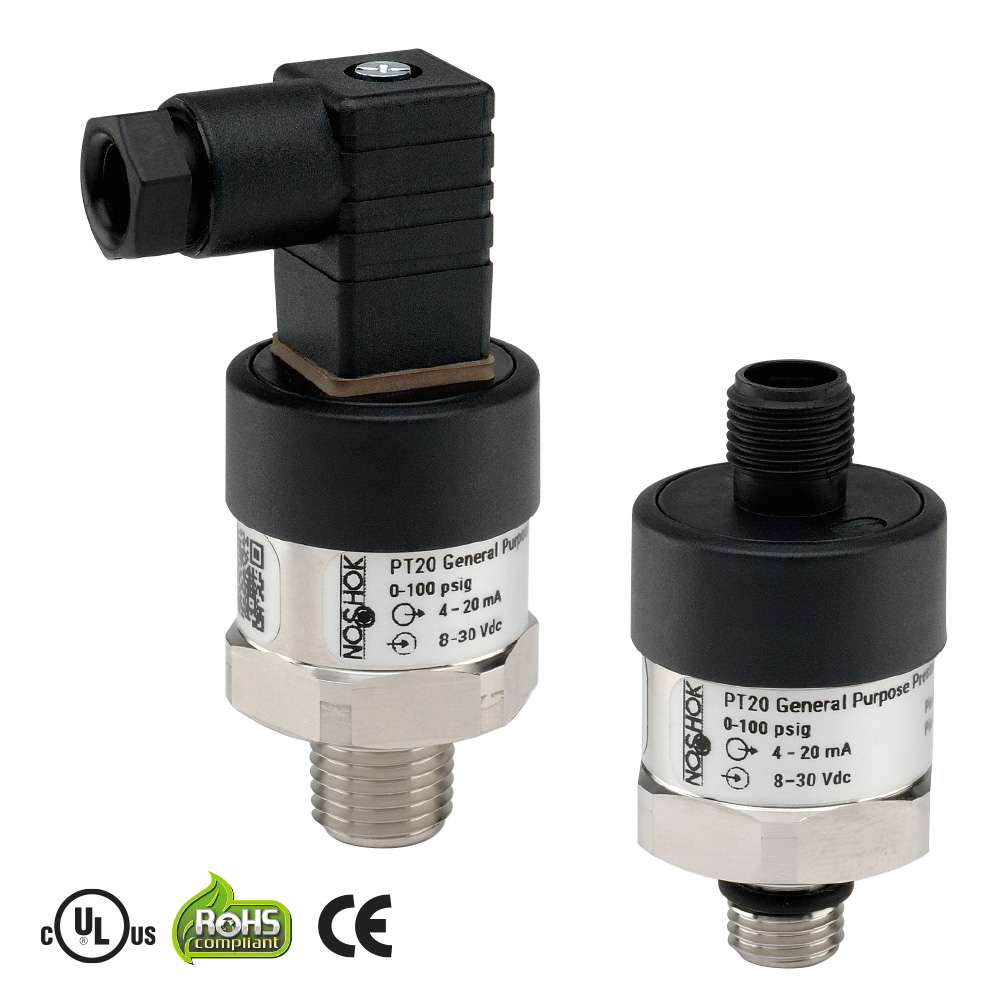

PT20 Series General Purpose, Fixed Range Pressure Transmitter
Features
- Gauge, compound, absolute and vacuum ranges from 1 psig to 10,000 psig
- Current and voltage outputs available
- 316 and 13-8PH Stainless Steel wetted parts
- RoHS compliant
- CE compliant to suppress RFI, EMI and ESD
- cULus compliant
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Features
- Gauge, compound, absolute and vacuum ranges from 1 psig to 10,000 psig
- Current and voltage outputs available
- 316 and 13-8PH Stainless Steel wetted parts
- RoHS compliant
- CE compliant to suppress RFI, EMI and ESD
- cULus compliant
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Alternative Products
Specifications
| Noshok PT20 Series | |
|---|---|
| Optional Calibration | Without, [CC] Certified Calibration |
| Unit of Measure | psig, psia |
| Pressure Range | [15psiv] -15 psig to 0 psig, [15psic] -15 psig to 15 psig, [30psic] -15 psig to 30 psig, [60psic] -15 psig to 60 psig, [100psic] -15 psig to 100 psig, [160 psic] -15 psig to 160 psig, [200 psic] -15 psig to 200 psig, [300 psic] -15 psig to 300 psig, [1psig] 0 psig to 1 psig, [5psig] 0 psig to 5 psig, [15psig] 0 psig to 15 psig, [30psig] 0 psig to 30 psig, [60psig] 0 psig to 60 psig, [100psig] 0 psig to 100 psig, [150psig] 0 psig to 150 psig, [200psig] 0 psig to 200 psig, [300psig] 0 psig to 300 psig, [500psig] 0 psig to 500 psig, [750psig] 0 psig to 750 psig, [1000psig] 0 psig to 1,000 psig, [1500psig] 0 psig to 1,500 psig, [2000psig] 0 psig to 2,000 psig, [3000psig] 0 psig to 3,000 psig, [5000psig] 0 psig to 5,000 psig, [6000psig] 0 psig to 6,000 psig, [7500psig] 0 psig to 7,500 psig, [10000psig] 0 psig to 10,000 psig, [15000psig] 0 psig to 15,000 psig, [15psia] 0 psia to 15 psia, [30psia] 0 psia to 30 psia, [60psia] 0 psia to 60 psia, [100psia] 0 psia to 100 psia, [150psia] 0 psia to 150 psia, [200psia] 0 psia to 200 psia, [300psia] 0 psia to 300 psia |
| Output Signal | [1] 4 mA to 20 mA, 2-wire, [2] 0 Vdc to 5 Vdc, 3-wire, [3] 1 Vdc to 5 Vdc, 3-wire, [5] 0 Vdc to 10 Vdc, 3-wire, [13] 0.5 Vdc to 4.5 Vdc, 3-wire (ratio-metric) |

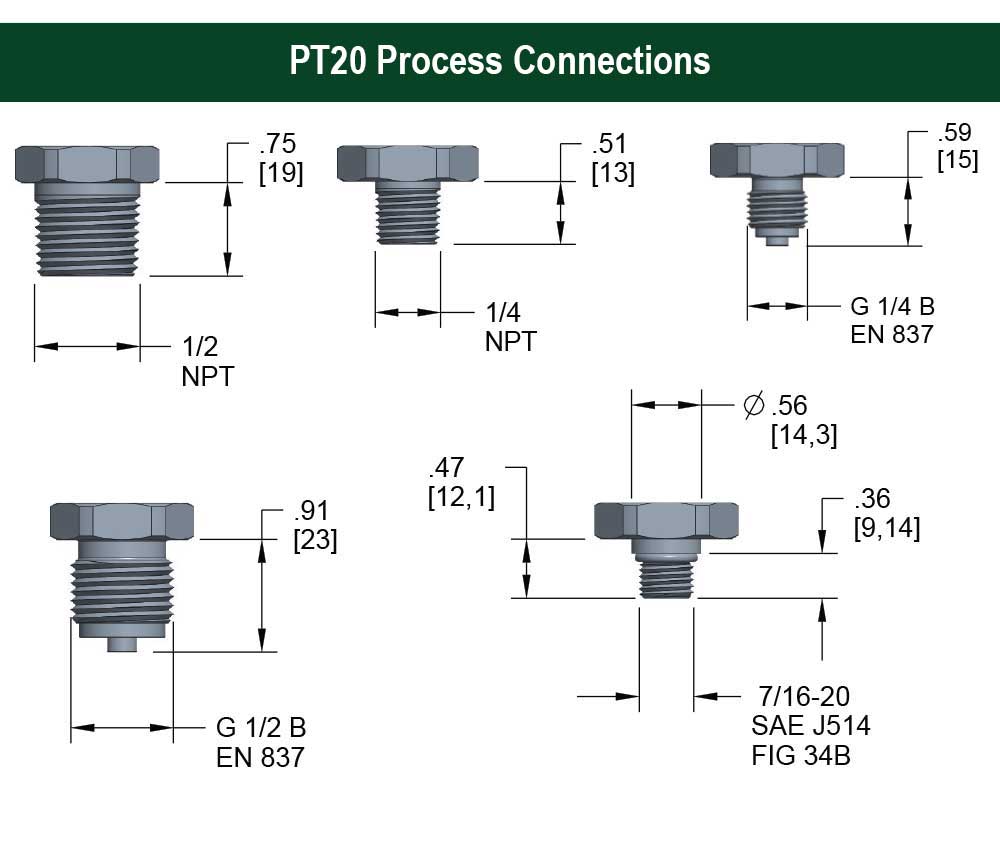

| Process Connection | [1] 1/8" NPT Male, [2] 1/4" NPT Male, [8] 1/2" NPT Male, [10] G 1/4 B, [11] G 1/2 B, [45] 7/16-20 SAE J514 FIG 34B Non-Adjustable |

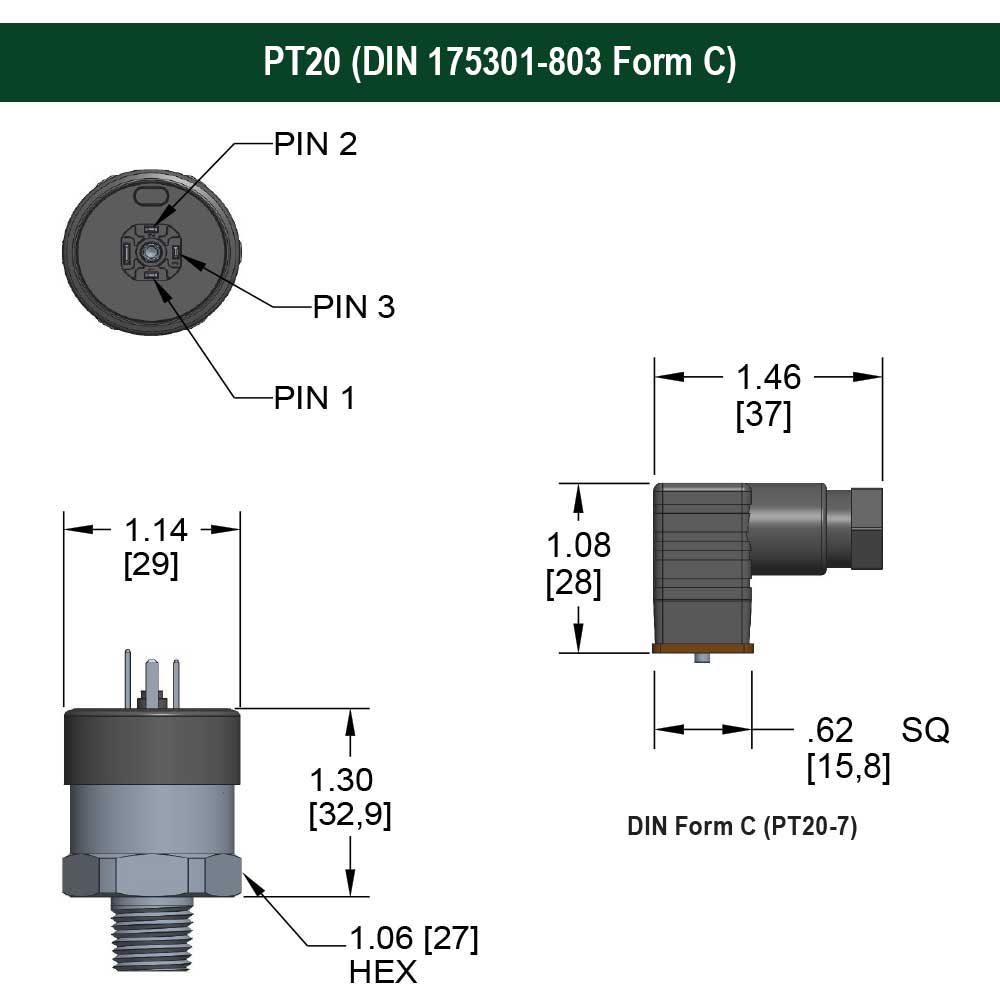

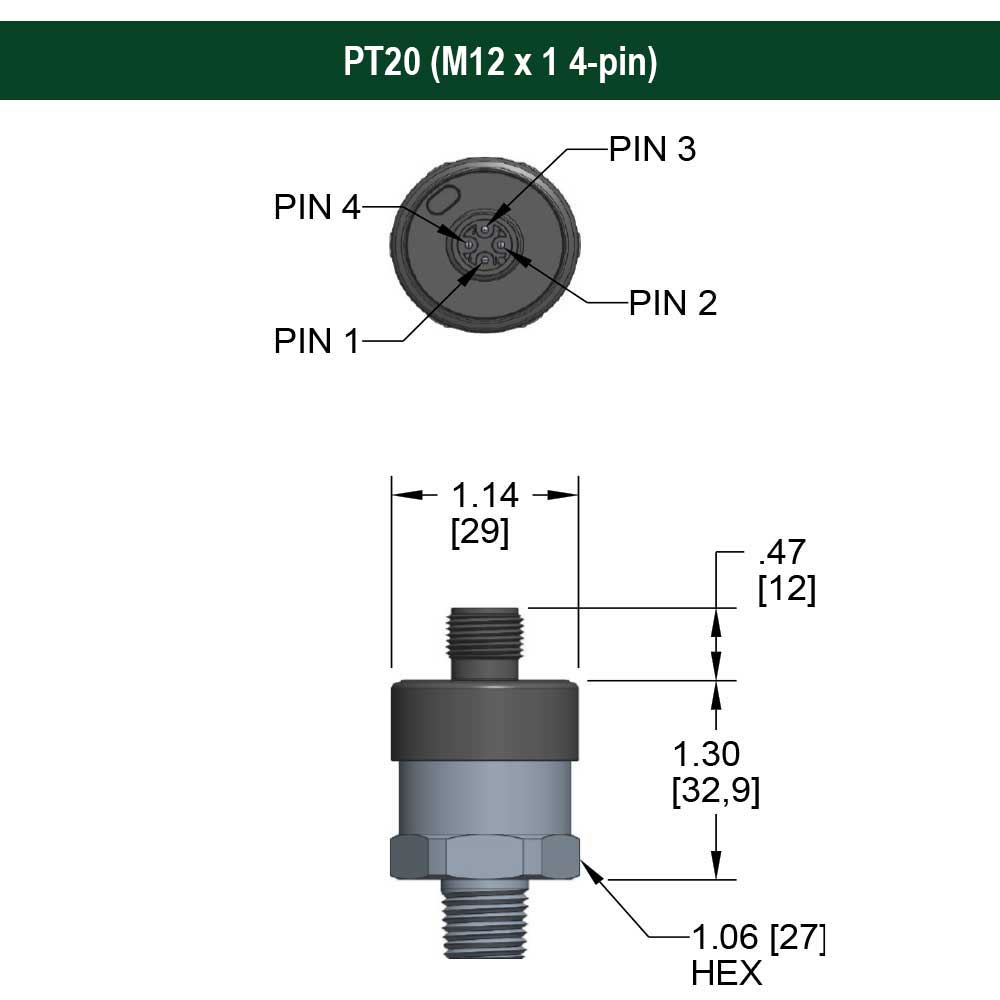

| Electrical Connection | [1] DIN EN 175301-803 Form A w/ 36” Cable, [7] DIN EN 175301-803 Form C, [8] DIN EN 175301-803 Form A, [14] DIN EN 175301-803 Form A w/ 1/2″ NPT female conduit, [17] DIN form C with 3 ft cable, [18] DIN EN 175301-803 Form A w/ 3' cable, [25] M12 x 1 (4-pin) |
| Optional Threaded Orifice | Without, [ST8] SS Threaded Orifice |
| Accuracy | [1] ±0.5% Full Scale |
| Transmitter Features | |
|---|---|
| Transmitters: Housing Material | 316 SS |
| Transmitters: Process Connection Material | 316 SS |
| Transmitters: Electrical Connection Material | PA, PBT |
| Transmitters: Measuring Element Material | 316 SS, 13-8PH SS |
| Transmitters: IP Rating | IP65, IP67 |
| Transmitters: Service Life | > 100 million load cycles |
| Transmitters: Response Time | ≤ 4 ms (between 10% and 90% full scale) |
| Transmitters: Proof pressure < 7,500 psi | 2x FS |
| Transmitters: Proof pressure ≥ 7,500 psi | 1.5x FS |
| Transmitters: Burst pressure < 7,500 psi | 3x FS |
| Transmitters: Burst pressure ≥ 7,500 psi | 2x FS |
