Watlow Ez-Zone Controller PID,1/4"Din,Universal Input, 120/240Ac

https://www.branom.com/web/image/product.template/174267/image_1920?unique=c26756c
(0 review)

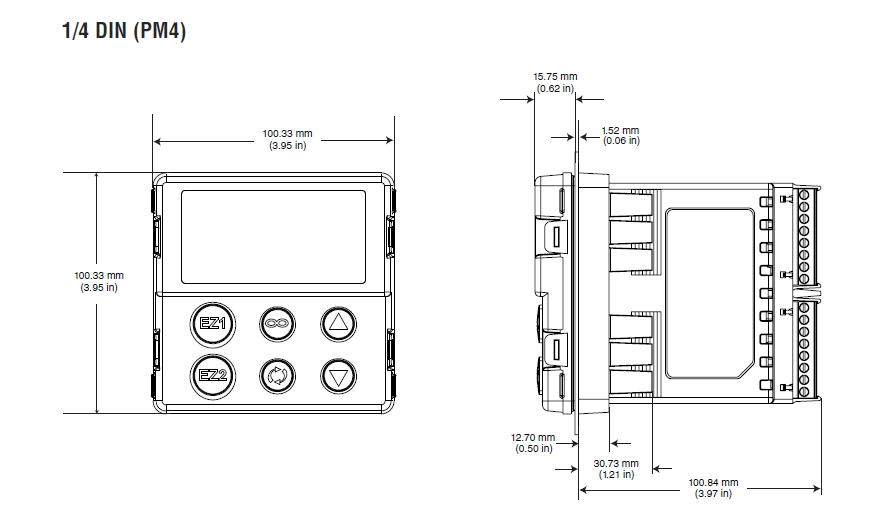

Package Size 4= 1/4 DIN Panel Cutout 92 mm X 92 mm
Primary Function B = PID Cont w/ Univ, Battery RTC, Profile Ramp/Soak
Power Supply 1 = 100 to 240VAC
Output 1 and 2 EK - Out1 = Mech Relay 5A, SPDT : Out2 = SSR 0.5A, SPST-NO
Communications A = None
Auxiliary Control Functions A = None
Output 3 and 4 AA - Out3 = None : Out4 = None
Menu Type A = Factory Default
Custom Options AA = Standard (Watlow & EZ-Zone)
Model Number PM4B1EK-AAAAAAA


  • Measurement Minimum
  • Input Voltage

This combination does not exist.

Contact Us

Share

Package Size 4= 1/4 DIN Panel Cutout 92 mm X 92 mm
Primary Function B = PID Cont w/ Univ, Battery RTC, Profile Ramp/Soak
Power Supply 1 = 100 to 240VAC
Output 1 and 2 EK - Out1 = Mech Relay 5A, SPDT : Out2 = SSR 0.5A, SPST-NO
Communications A = None
Auxiliary Control Functions A = None
Output 3 and 4 AA - Out3 = None : Out4 = None
Menu Type A = Factory Default
Custom Options AA = Standard (Watlow & EZ-Zone)
Model Number PM4B1EK-AAAAAAA

Specifications

Measurement Minimum 0
Input Voltage 100-240 VAC
