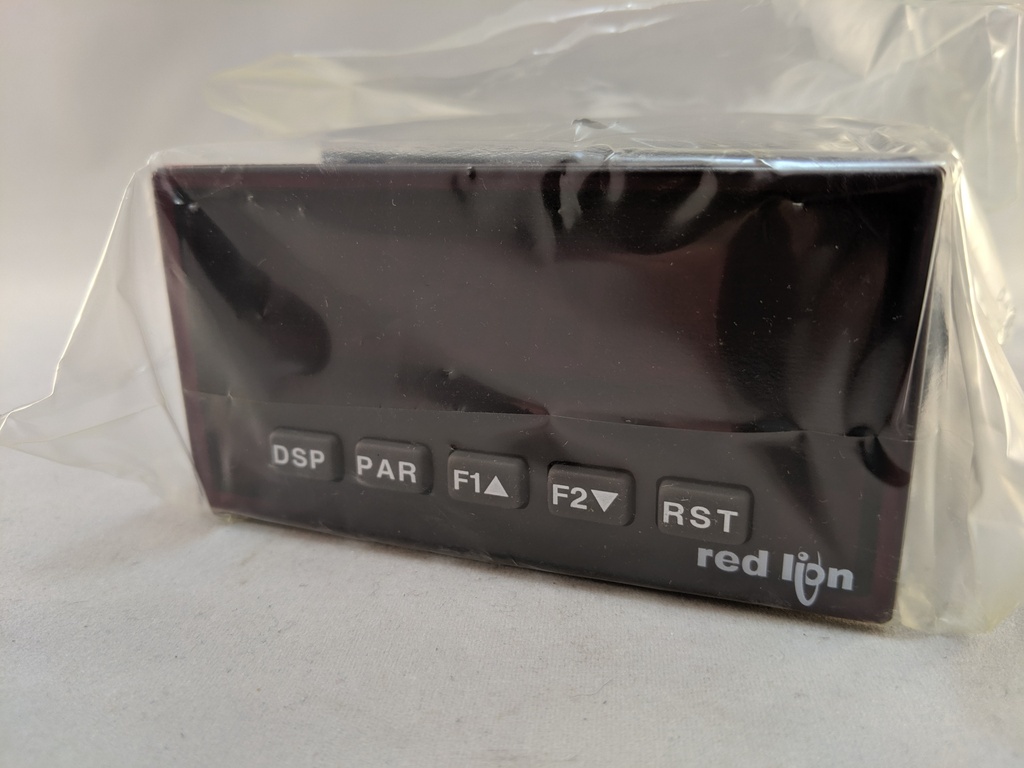

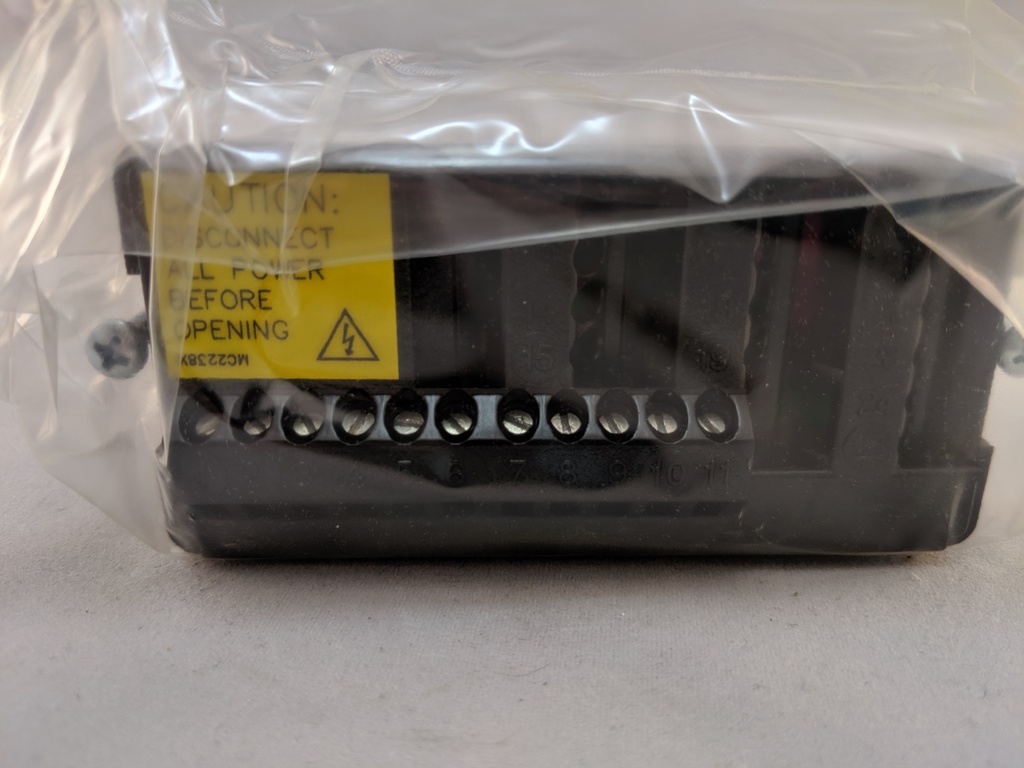

PAX Series Dual Process Input Meter, Red Display, DC Powered
The PAX® panel meter series offers a wide array of features and consists of PAX Lite, PAX and PAX2. From basic machines, simple process control requirements to the ability to visualize multiple parameters at the same time, the PAX panel meter series is the solution for any application. Additionally, the PAX and PAX2 provide field installable options cards to accommodate changes in application and/or communication requirements.
Features
- Dual Process Input
- 1/8 DIN (50 mm x 97 mm)
- 5 Digit, 0.56" (14 mm) LED
- Red, Sunlight Readable Display
- Accepts 2 4-20 mA or 0-10 VDC Input Signals
- Linearization/Square Root Extraction Input Range
- 9 Digit Totalizer (integrator) with batching
- Field Upgradeable Option Cards
- 11 to 36 VDC (24 VDC nominal) Input Power
- NEMA 4X/IP65
