PAX Series, PAX®CDS50 - Dual Triac/Dual SSR Drive Setpoint Output Card

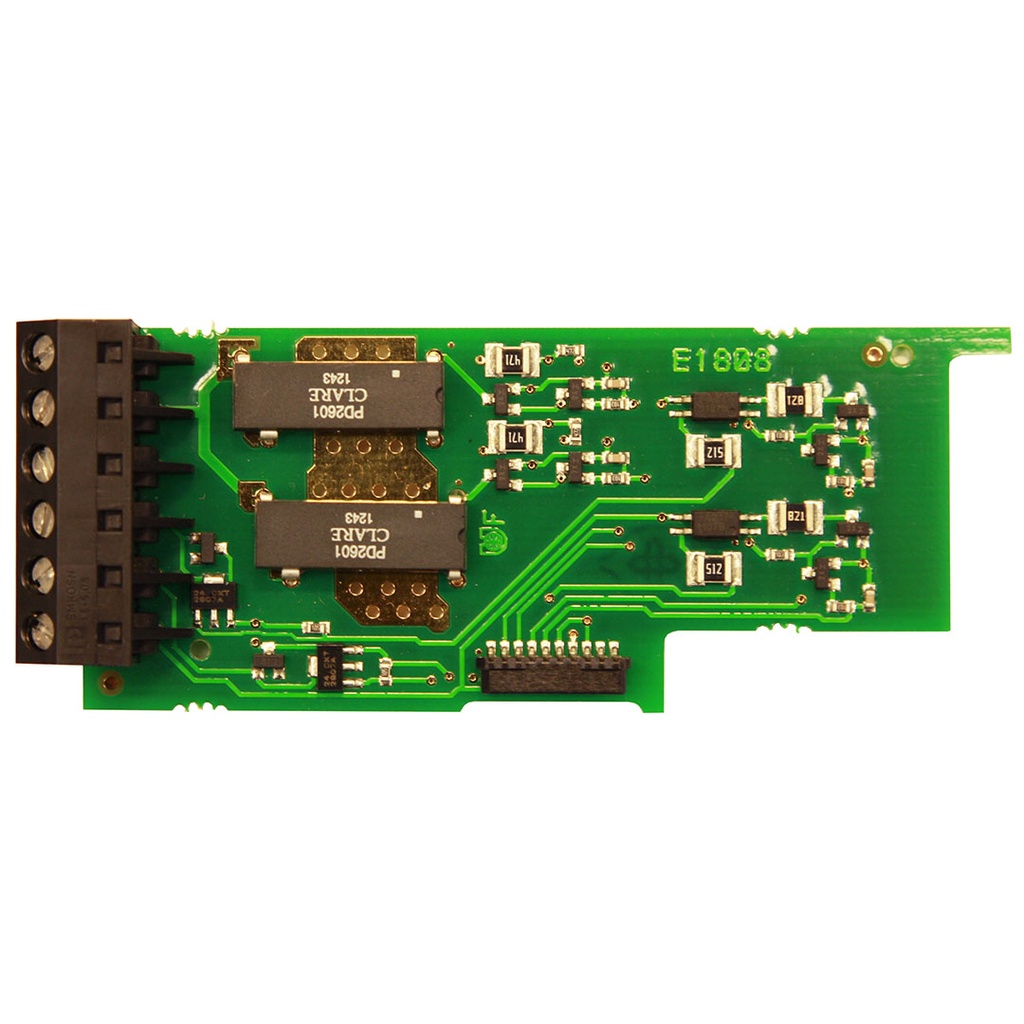

Representative photo. Please check item description for details.

PAX Series, PAX®CDS50 - Dual Triac/Dual SSR Drive Setpoint Output Card

https://www.branom.com/web/image/product.template/181113/image_1920?unique=c26756c
(0 review)

PAX® Setpoint Plug-in Cards Dual Triac/Dual SSR Drive For Use with PAX Units Only Isolated Zero Crossing Detection (Traic) Max Load Current 1A @ 25­°C (Triac) Voltage 260 VAC max, 20 VAC min (Triac) Two Isolated Sourcing PNP Transistors (SSR) Output Voltage 18/24 VDC (unit dependent) +/- 10% (SSR) Output Current 30 mA max total both outputs (SSR)


$ 107.99 107.99 USD $ 107.99

$ 107.99

Not Available For Sale

  • Measurement Maximum
  • Measurement Minimum
  • Output Communication Protocol

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

PAX® Setpoint Plug-in Cards Dual Triac/Dual SSR Drive For Use with PAX Units Only Isolated Zero Crossing Detection (Traic) Max Load Current 1A @ 25­°C (Triac) Voltage 260 VAC max, 20 VAC min (Triac) Two Isolated Sourcing PNP Transistors (SSR) Output Voltage 18/24 VDC (unit dependent) +/- 10% (SSR) Output Current 30 mA max total both outputs (SSR)

Specifications

Measurement Maximum 0
Measurement Minimum 0
Output Communication Protocol Contact Relay
