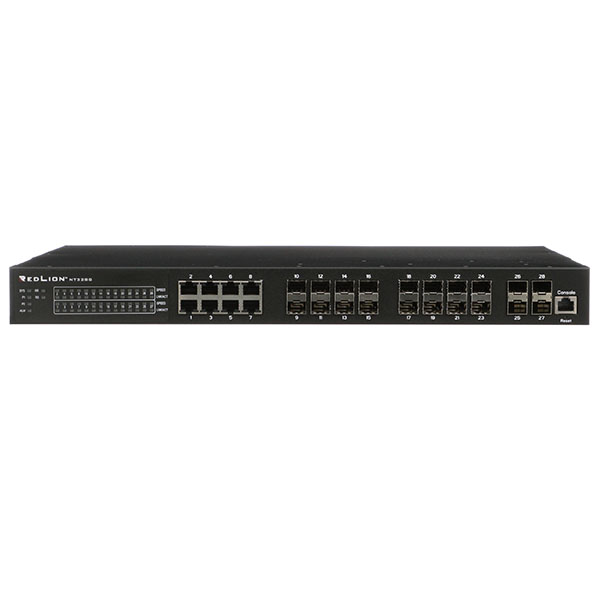

NT-328G Series, 28-Port, NT328 Rackmount Managed Layer 3 Ethernet Switch, 20 SFP ports, Single AC
Red Lion's NT328G industrial Ethernet switches provide Layer 3 network management with enterprise-class features in rugged packaging. Featuring powerful security, built-in redundancy, data control and prioritization functionality, the NT328G advanced managed switches deliver superior performance and industry-leading, hardware-based routing for advanced support of multiservice networks.
Features
Red Lion's NT328G industrial Ethernet switches provide Layer 3 network management with enterprise-class features in rugged packaging. Featuring powerful security, built-in redundancy, data control and prioritization functionality, the NT328G advanced managed switches deliver superior performance and industry-leading, hardware-based routing for advanced support of multiservice networks.
- 28 Port Gigabit Layer 3 Managed Industrial Ethernet Switch
- 8 10/100/1000 Gigabit RJ45 ports, 16 Gigabit SFP ports
- 1000BaseSX/LX Fiber with LC style connectors or 10/100/1000BaseTX Copper with RJ-45 connectors
- Four 10Gig Fiber SFP+ ports with backwards compatible support for Gigabit copper and Gigabit fiber SFP transceivers
- -40 to 75°C Operating Temperature
- Auto Sensing 10/100/1000BaseTX, Duplex and MDIX
- Store-and-forward Technology
- Single Power Input (100-240 VAC)
- 16k MAC Addresses
- 9000 byte Jumbo Frame Support
- Configurable Alarm Contact
- Rugged Industrial IP30 Rackmount Enclosure
MANAGEMENT
- Web Browser Management
- CLI: Console, Telnet, SSH
- RMON (Monitors L1 to L2 Traffic)
- Configuration Backup/Restore
- DHCP Server/Client/Relay Agent with Option 61, Option 82
- IGMP v1, v2, v3
- SNMP v1, v2, v3
- Port Mirroring
- Event Log/Syslog
- Advanced VLAN Operations
- LLDP
NETWORK REDUNDANCY
- Ring Protocol: Proprietary Ring & Chain, < 20ms recovery
- IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s, 802.1Q MSTP
- LACP/LAG: Static and Dynamic Link Aggregation
- Up to 14 Trunks per Switch
- Up to 8 Ports per Trunk
QOS/RATE LIMITING/TRAFFIC CONTROL
- QoS: Traffic Policing, Traffic Shaping, Queue Scheduling
- Policy/Profile-based Access Control List: IP/MAC/TCP/UDP/ToS/DSCP
- CoS/DSCP: SPQ, WRR, SPQ+WRR
- Rate Limiting / Traffic Control: Storm Control
- Multicast/Unicast Filtering
ROUTING
- GVRP
- VRRP v2, v3
- RIP v1, v2
- OSPF
- Static Routing L3 Forwarding
SECURITY
- SNMP v3
- SSH, SSL, HTTPS
- Access Control List
- 802.1X Port Authentication
- 802.1X User Login Authentication
- IP Source Guard (DHCP)
