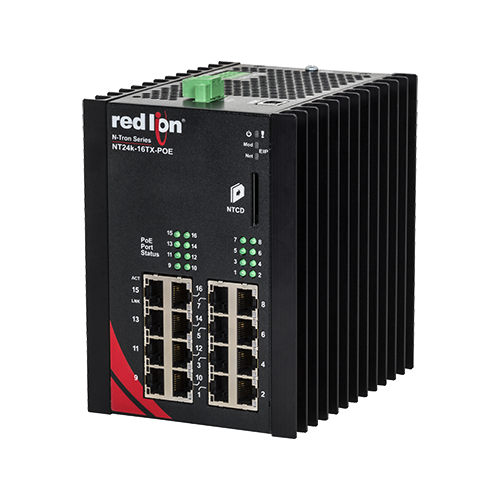

Representative photo. Please check item description for details.
NT24k Series, N-Tron NT24k-16TX-POE Gigabit PoE+ Managed Ethernet Switch PTP Enabled
- 16 Port Gigabit PoE+ Managed Industrial Ethernet Switch
- Sixteen 10/100/1000BaseTX RJ-45 Ports
- All ports support IEEE 802.3af/at PoE+
- 240 Watt PoE budget configurable across all 16 ports, up to 30 Watts per port
- -40°C to 80°C Operating Temperature
- ESD and Surge Protection on all Built-in Ports
- Auto Sensing 10/100/1000BaseTX, Duplex, and MDIX
- Store-and-forward Technology
- Redundant Power Input (22 - 49 VDC)
- Power Boost Circuit to meet PoE Requirements
- Jumbo Frame Support
- 16k MAC Addresses
- Detailed Ring Map and Fault Location Charting
- USB Configuration Port
- Configurable Alarm Contact
- Compact Industrial DIN-Rail Enclosure
- Fully Managed Features:
- SNMP v1, v2, v3 and Web Browser Management
- SSH/SSL/HTTPS
- IEEE 802.1x with RADIUS Remote Server Authentication
- DHCP Server, Option 82 relay, Option 61, IP fallback
- Port Security – MAC address based
- MultiMember NRing™ Technology with ~30ms Healing
- NLink™ Redundant Ring Technology
- NView™ Monitoring Technology
- EtherNet/IP™ CIP Messaging
- 802.1AB-2005 LLDP (Link Layer Discovery Protocol)
- Web configuration
- IGMP Auto Configuration
- 802.1Q tag VLAN and Port VLAN
- 802.1p QoS and Port QoS
- Port Trunking
- Port Mirroring
- SNTP
- IEEE 1588v2 (PTP)
- Event Log/Syslog
- 802.1d, 802.1w, 802.1D RSTP
