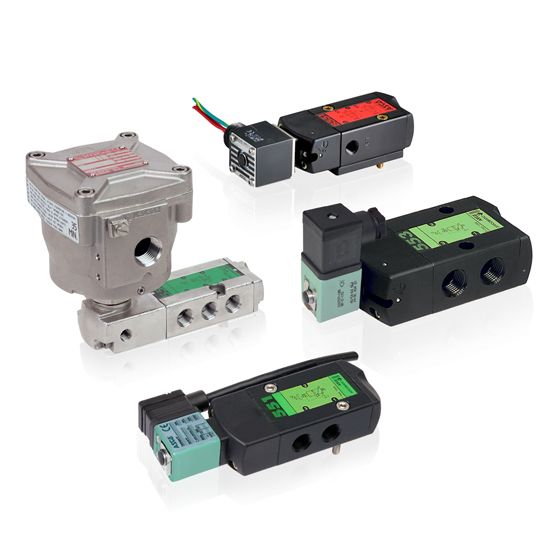

551 Series Solenoid Spool Valve, 1/4" NPT, 24 VDC, 1/4 X 1/4 Aluminum
The ASCO Series 553, also known as 8553, is a line of 1/2" 3-way and 4-way compact solenoid spool valves that are ideal for controlling air or inert gas in challenging environments. The valves ’ unique design combines hard T-seals and flexible O-rings that provide bubble-tight shutoff, dirt resistance, and multi-million cycle reliability. The 551 Series comes in anodized aluminum, brass, and stainless steel bodies with ½-inch NPT and BSP connections. It is suitable for the harsh conditions found in chemicals, refining, food & beverage applications and life science processing.
Features
- Body Material: Stainless Steel
- Pipe/Port Type & Size: NPT 1/4
- Valve Actuation: Solenoid
- Voltage: 24DC
- Coil Class: H
- Coil Number: 298008-002
- Watt Rating: 0.48 W
- Item Status: Active
- Carton Note: 1/4 X 1/4 4NC S.S. 0.48/H DC
- Standards / Regulations: ATEX Zone 1-21, ATEX Zone 2-22, Class I Div 1, Class II Div 1, SIL, Type 1, Type 2, Type 3, Type 3S, Type 4, Type 4X, Type 6, Type 6P, Type 7, Type 9
- Temperature: -60°C to 80°C:
