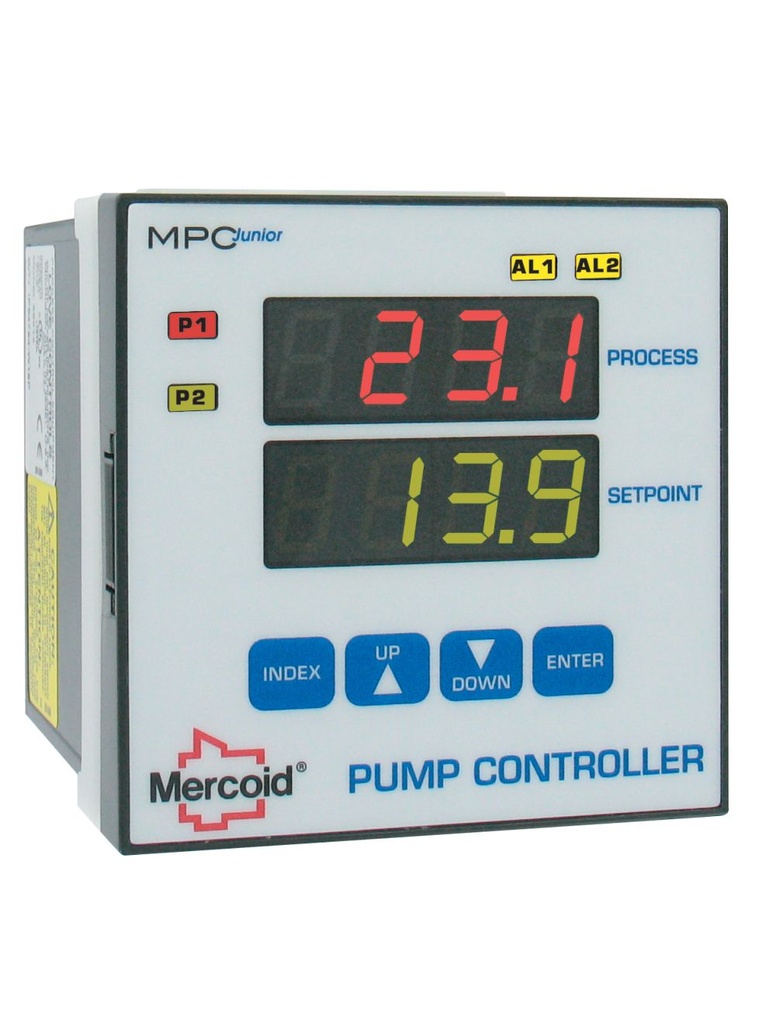

Dwyer MPCJR Pump Controller
Representative photo. Please check item description for details.

Dwyer MPCJR Pump Controller

https://www.branom.com/web/image/product.template/548211/image_1920?unique=c26756c
(0 review)

Inputs:4 (or 0) to 20 mA DC or 2 (or 0) to 10 VDC selectable.
Input Impedance: Current = 10 ohms, Voltage = 5 K ohms.
Output Ratings: Control Relays: SPDT, rated 10 A @ 240 VAC res., 1/4 hp @ 120 VAC, 1/3 hp @ 240 VAC;
Alarm Relays: SPST, 3 A @ 240 VAC res., 1/10 hp @ 120 VAC; Others: 15 VDC @ 20 mA for output one and output two.
Control Type: On/off, reverse (pump out) or direct (pump in) acting.
Power Requirements:100 to 240 VAC nominal, +10%-15%, 50 to 400 Hz, single phase; 132 to 240 VDC nominal, +10%-15%.Power Consumption:7.5 VA maximum.
Accuracy: ±0.25% of span, ±1 least significant digit.
Display: Two 4-digit, 7 segment 0.56" high LEDs.
Display Resolution:1 count.
Memory Backup: Nonvolatile memory (no batteries required).
Serial Communications: Optional RS-232 or RS-485 with Modbus® protocol.
Ambient Operating Temperature/RH:14 to 131°F (-10 to 55°C); 0 to 90% up to 104°F (40°C) non-condensing, 10 to 50% at 131°F (55°C) non-condensing.
Weight:16 oz (454 g).
Front Panel Rating: Meets UL Type 4X (IP66).Loop Power Supply (isolated):24 VDC @ 50 mA, regulated.
Compliance: cULus.
