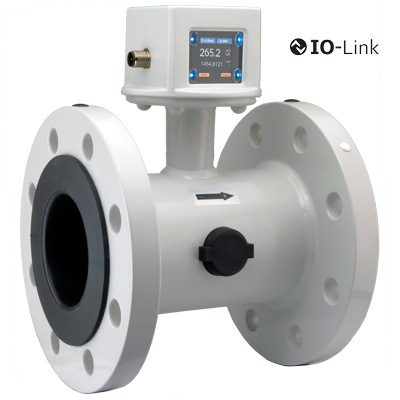

Kobold 2" Electromagnetic Flowmeter
2" Flow Range: 2...277 GPM
Response Time Flow t90 (Alarm Output/Pulse Output): < 250 ms
Requirement: 5x Upstream, 3x Downstream
Pressure Drop (Max. at 3 m/s): 25 mbar
Housing: Powder-coated Aluminum Body,
PMMA Display Screen
Connection: Steel (ASTM A105), Epoxy-coated (Corrosivity Category C4M)
Lining: NBR
Electrodes: Hastelloy® C276
Protection: IP67
Media Temperature: 14…158°F
Ambient Temperature: 14…140°F
Supply Voltage: 19-30 VDC, Internal Power Consumption, Max. 200 mA
Display: TFT Display, 128x128 Pixels, 1.4" Display, Orientation Adjustable in 90°
Display Rate: 0.5...10 s, Adjustable
Pulse Output: Push-Pull, Freely Scalable, Configurable,for Partial and Accumulated Totalizer
Frequency Output: Push-Pull, Freely Scalable, 2 kHz @ Overflow
min @ FS = 50 Hz
max @ FS = 1000 Hz
Alarm Output: NPN, PNP, Push-Pull,
Configurable Max. 30 VDC, Max. 200 mA
Analog Output: Active, 3 wire, 0(4)-20 mA,
Max. Load 500 Ω or 0(2)-10 VDC, (Ri= 500 Ω)
Control Input: Active Signal Uhigh Max. 30 VDC
0 <Low <10 VDC
15 VDC <High <Vs
Batching Function: Batching Output OUT2: Push-Pull, High Active
Control Input OUT1: START/STOP 0,5 s <thigh <4 s
RESET thigh >5 s
Electrical Conn: Plug M12x1, 4-pin
2" Flow Range: 2...277 GPM
Response Time Flow t90 (Alarm Output/Pulse Output): < 250 ms
Requirement: 5x Upstream, 3x Downstream
Pressure Drop (Max. at 3 m/s): 25 mbar
Housing: Powder-coated Aluminum Body,
PMMA Display Screen
Connection: Steel (ASTM A105), Epoxy-coated (Corrosivity Category C4M)
Lining: NBR
Electrodes: Hastelloy® C276
Protection: IP67
Media Temperature: 14…158°F
Ambient Temperature: 14…140°F
Supply Voltage: 19-30 VDC, Internal Power Consumption, Max. 200 mA
Display: TFT Display, 128x128 Pixels, 1.4" Display, Orientation Adjustable in 90°
Display Rate: 0.5...10 s, Adjustable
Pulse Output: Push-Pull, Freely Scalable, Configurable,for Partial and Accumulated Totalizer
Frequency Output: Push-Pull, Freely Scalable, 2 kHz @ Overflow
min @ FS = 50 Hz
max @ FS = 1000 Hz
Alarm Output: NPN, PNP, Push-Pull,
Configurable Max. 30 VDC, Max. 200 mA
Analog Output: Active, 3 wire, 0(4)-20 mA,
Max. Load 500 Ω or 0(2)-10 VDC, (Ri= 500 Ω)
Control Input: Active Signal Uhigh Max. 30 VDC
0 <Low <10 VDC
15 VDC <High <Vs
Batching Function: Batching Output OUT2: Push-Pull, High Active
Control Input OUT1: START/STOP 0,5 s <thigh <4 s
RESET thigh >5 s
Electrical Conn: Plug M12x1, 4-pin
