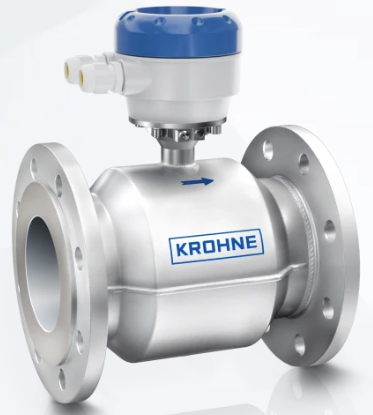

KROHNE Waterflux 3000 Electromagnetic Flow Sensor

https://www.branom.com/web/image/product.template/543418/image_1920?unique=c26756c
(0 review)

The WATERFLUX 3000 is an electromagnetic flow sensor. Combined with the IFC 050, IFC 070, IFC 100, or IFC 300 flow converters it forms the WATERFLUX 3050, WATERFLUX 3100, and WATERFLUX 3300 as well as the WATERFLUX 3070 water meter for all water applications.

Features

  • Unique rectangular sensor design
  • Connection sizes: DN25…600 / 1…24"
  • Liner: Rilsan®

  • Nominal Diameter
  • Nominal Pressure
  • System Design / Cable Connection
  • Converter Model
  • Fixed Electrodes
  • Housing / Flange Material
  • Protection Class
  • Cable Length
  • Calibration
  • Finish

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

The WATERFLUX 3000 is an electromagnetic flow sensor. Combined with the IFC 050, IFC 070, IFC 100, or IFC 300 flow converters it forms the WATERFLUX 3050, WATERFLUX 3100, and WATERFLUX 3300 as well as the WATERFLUX 3070 water meter for all water applications.

Features

  • Unique rectangular sensor design
  • Connection sizes: DN25…600 / 1…24"
  • Liner: Rilsan®

Specifications

Nominal Diameter [VN4644] DN 25 | 1 in, [VN4646] DN 40 | 1-1/2 in, [VN4647] DN 50 | 2 in, [VN4648] DN 65 | 2-1/2 in, [VN464A] DN 80 | 3 in, [VN464B] DN 100 | 4 in, [VN464C] DN 125 | 5 in, [VN464D] DN 150 | 6 in, [VN474E] DN 200 | 8 in, [VN474F] DN 250 | 10 in, [VN474G] DN 300 | 12 in, [VN474H] DN 350 | 14 in, [VN474K] DN 400 | 16 in, [VN474L] DN 450 | 18 in, [VN474M] DN 500 | 20 in, [VN474N] DN 600 | 24 in
Nominal Pressure [A0] 150 lb RF / ASME B 16.5 (1 to 8 in), [A0] 150 lb RF / ASME B 16.5 (10 to 24 in) ( 10" - 24": max. working pressure 145 psi )
System Design / Cable Connection [1] Compact w/Std. neck (Alu. Converter only ) / at Converter, [A] Separate w/Stainless Steel Connection Box / 1/2 in NPT, [B] Separate w/Stainless Steel Connection Box / PF 1/2, [C] Separate w/Stainless Steel Connection Box / M20 x 1.5
Converter Model [30] IFC 100 C | Compact Design, [40] IFC 100 W | Wall Mount, [C0] IFC 300 C | Compact Design, [D0] IFC 300 F | Field Mount, [E0] IFC 300 W | Wall Mount, [F0] IFC 300 R | Rack Mount, [K0] IFC 050 C | Compact Design, [L0] IFC 050 W | Wall Mount
Fixed Electrodes [C1] 304 SS, [B1] Hastelloy C22
Housing / Flange Material [6] Steel / 316L Stainless Steel (1 to 5 in), [7] Steel / 316L Stainless Steel (6 to 8 in), [1] Steel / Carbon Steel (10 in), [2] Steel / 304L Stainless Steel (10 in), [1] Steel / Carbon Steel (12 in), [2] Steel / 304L Stainless Steel (12 in), [A] 304L Stainless Steel / Carbon Steel (12 in), [1] Steel / Carbon Steel (14 in), [2] Steel / 304L Stainless Steel (14 in), [A] 304L Stainless Steel / Carbon Steel (14 in), [1] Steel / Carbon Steel (16 in), [2] Steel / 304L Stainless Steel (16 in), [A] 304L Stainless Steel / Carbon Steel (16 in), [1] Steel / Carbon Steel (18 in), [2] Steel / 304L Stainless Steel (18 in), [A] 304L Stainless Steel / Carbon Steel (18 in), [1] Steel / Carbon Steel (20 in), [2] Steel / 304L Stainless Steel (20 in), [A] 304L Stainless Steel / Carbon Steel (20 in), [1] Steel / Carbon Steel (24 in), [2] Steel / 304L Stainless Steel (24 in), [A] 304L Stainless Steel / Carbon Steel (24 in)
Protection Class [0] IP 66 / 67, [2] IP 68 Factory
Cable Length [00] Compact - None, [00] 15 ft. DS Signal and Coil Power Cables, [01] 30 ft. DS Signal and Coil Power Cables, [02] 45 ft. DS Signal and Coil Power Cables, [03] 60 ft. DS Signal and Coil Power Cables, [04] 75 ft. DS Signal and Coil Power Cables, [05] 90 ft. DS Signal and Coil Power Cables, [06] 120 ft. DS Signal and Coil Power Cables, [07] 150 ft. DS Signal and Coil Power Cables, [08] 300 ft. DS Signal and Coil Power Cables, [00] 15 ft. DS Signal Cable, [01] 30 ft. DS Signal Cable, [02] 45 ft. DS Signal Cable, [03] 60 ft. DS Signal Cable, [04] 75 ft. DS Signal Cable, [05] 90 ft. DS Signal Cable, [06] 120 ft. DS Signal Cable, [07] 150 ft. DS Signal Cable, [08] 300 ft. DS Signal Cable
Calibration [00] Standard, [20] Standard + 316|1.4401 tagplate ( 120 x 46 mm ), [30] Standard + 316|1.4401 tagplate ( 67 x 25 mm ), [80] Water cooling, PTB, [A0] Custody transfer, [C0] CT + 316|1.4401 tagplate ( 120 x 46 mm ), [D0] CT + 316|1.4401 tagplate ( 67 x 25 mm ), [E0] Water Cooling 316 Tagplate (120 x 46 mm), [H0] 3 points with water acc. ISO/IEC 17025 2) (1 to 6 in), [H0] 3 points with water acc. ISO/IEC 17025 2) (8 to 12 in), [H0] 3 points with water acc. ISO/IEC 17025 2) (14 to 24 in)
Finish [00000000] KROHNE standard, [30000000] KROHNE offshore (1 in), [50000000] KROHNE burial coating (1 in), [30000000] KROHNE offshore (1-1/2 in), [50000000] KROHNE burial coating (1-1/2 in), [30000000] KROHNE offshore (2 in), [50000000] KROHNE burial coating (2 in), [30000000] KROHNE offshore (2-1/2 in), [50000000] KROHNE burial coating (2-1/2 in), [30000000] KROHNE offshore (3 in), [50000000] KROHNE burial coating (3 in), [30000000] KROHNE offshore (4 in), [50000000] KROHNE burial coating (4 in), [30000000] KROHNE offshore (5 in), [50000000] KROHNE burial coating (5 in), [30000000] KROHNE offshore (6 in), [50000000] KROHNE burial coating (6 in), [30000000] KROHNE offshore (8 in), [50000000] KROHNE burial coating (8 in), [30000000] KROHNE offshore (10 in), [50000000] KROHNE burial coating (10 in), [30000000] KROHNE offshore (12 in), [50000000] KROHNE burial coating (12 in), [30000000] KROHNE offshore (14 in), [50000000] KROHNE burial coating (14 in), [30000000] KROHNE offshore (16 in), [50000000] KROHNE burial coating (16 in), [30000000] KROHNE offshore (18 in), [50000000] KROHNE burial coating (18 in), [30000000] KROHNE offshore (20 in), [50000000] KROHNE burial coating (20 in), [30000000] KROHNE offshore (24 in), [50000000] KROHNE burial coating (24 in)
