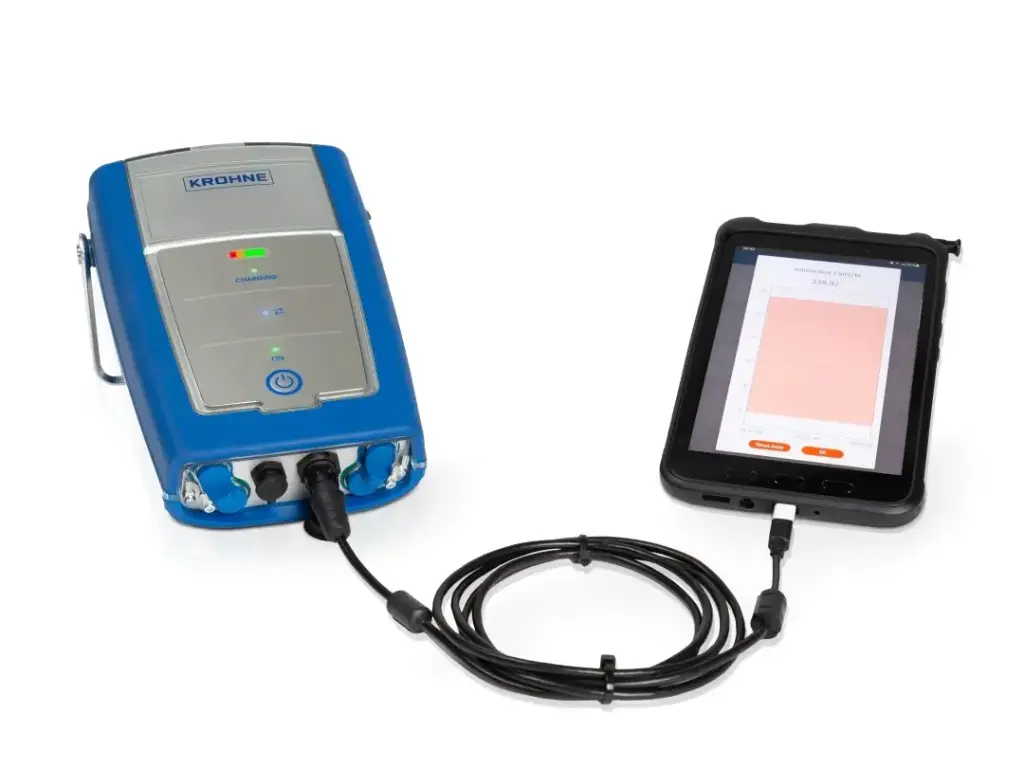

KROHNE UFC 300P-v2 Portable Clamp-On Ultrasonic Flow Converter
The OPTISONIC 6300 P is a portable, battery-powered ultrasonic clamp-on flowmeter for temporary flow measurement of (non-)conductive liquids in virtually all industries. It can be used at virtually any location without interrupting the process or cutting pipes. Due to its flexibility, the flowmeter is equally suited for comparative measurements on stationary measuring equipment (e.g. pumps, flowmeters etc.) or for use as a short-term replacement of faulty devices. The clamp-on flowmeter comes with a measurement option for thermal energy applications as standard.
The OPTISONIC 6300 P combines robust, easy-to-mount clamp-on sensor rails with a battery-powered signal converter for 1 or 2 path measurement. The portable converter comes with full measurement functionality and an integrated data logger. All measurement data can be monitored and analysed via a smart handheld or mobile device using the OPTISONIC 6300 P mobile app. The Android app is free and makes it easy to set up and commission the clamp-on flowmeter. A user-friendly installation wizard guides the user through the configuration process. A USB cable or secure wireless Bluetooth® connection transfers data between the smart device and signal converter. All data is saved on the mobile device and can be evaluated.
The OPTISONIC 6300 P is a portable, battery-powered ultrasonic clamp-on flowmeter for temporary flow measurement of (non-)conductive liquids in virtually all industries. It can be used at virtually any location without interrupting the process or cutting pipes. Due to its flexibility, the flowmeter is equally suited for comparative measurements on stationary measuring equipment (e.g. pumps, flowmeters etc.) or for use as a short-term replacement of faulty devices. The clamp-on flowmeter comes with a measurement option for thermal energy applications as standard.
The OPTISONIC 6300 P combines robust, easy-to-mount clamp-on sensor rails with a battery-powered signal converter for 1 or 2 path measurement. The portable converter comes with full measurement functionality and an integrated data logger. All measurement data can be monitored and analysed via a smart handheld or mobile device using the OPTISONIC 6300 P mobile app. The Android app is free and makes it easy to set up and commission the clamp-on flowmeter. A user-friendly installation wizard guides the user through the configuration process. A USB cable or secure wireless Bluetooth® connection transfers data between the smart device and signal converter. All data is saved on the mobile device and can be evaluated.
Specifications
| Type | [VNG44G] Battery Powered Converter w/ Hardcase (Flight Case Trolley), [VNG44P] Battery Powered Converter w/ Softcase, [VNG44T] Spare Converter |
| Cable Connection | [000] Standard for Optisonic 6000P Sensors, [700] Incl. 2 Adapters for Connection w/ Optisonic 6000 Stationary Sensors, [F00] Incl. 4 Adapters for Connection w/ Optisonic 6000 Stationary Sensors |
| Communication Mode | [B10] Communication w/ Smart Device via Bluetooth or USB Cable, [010] Communication w/ Smart Device via USB Cable Only |
| Quick Start Guide | [3] English, [0] without |
| Optional Pipe Thickness Gauge | [0] without, [1] Danatronics EHC-03 |
| Destination | [U] USA, [C] Canada, [0] Standard/Europe |
| Optional I/O Box w/ Accessories | [0] without, [1] I/O Box w/o Temperature Measurements, [2] I/O Box incl. 2x Temperature Transmitters, [3] I/O Box incl. 2x Temperature Transmitters & 2x Clamp-On Temperature Sensors |
| Cables | [1] USB Cable, [3] USB Cable & 12V Car Charging Cable |
| Tablet | [0] without, [1] Samsung Tab Active 3 |
| Measurement Type | Single Path Measurement, Dual Path Measurement |
| Pipe Size Range | DN15-250 | 1/2"-10" Range, DN200-1500 | 8"-60" Range, DN200-4000 | 8"-160" Range, DN15-4000 | 1/2"-160" Range, DN15-1500 | 1/2"-60" Range |
| Mounting Material | [AA] (x1) Aluminum Rail + (x2) 1m Metal Straps, [BA] (x2) Aluminum Rail + (x4) 0.5m Nylon Straps + (x4) 5m Nylon Straps, [CA] (x2) Aluminum Rail + (x4) 0.5m Nylon Straps + (x4) 13m Nylon Straps, [FA] (x2) Aluminum Rail + (x4) 1m Metal Straps + (x4) 0.5m Nylon Straps + (x4) 5m Nylon Straps + (x4) 13m Nylon Straps, [GA] (x2) Aluminum Rail + (x4) 1m Metal Straps + (x4) 0.5m Nylon Straps + (x4) 5m Nylon Straps, [HA] (x2) Aluminum Rail + (x4) 0.5m Nylon Straps + (x4) 5m Nylon Straps + (x4) 13m Nylon Straps, [AB] (x2) Aluminum Rail + (x4) 1m Metal Straps, [BB] (x4) Aluminum Rail + (x8) 0.5m Nylon Straps + (x8) 5m Nylon Straps, [CB] (x4) Aluminum Rail + (x8) 0.5m Nylon Straps + (x8) 13m Nylon Straps, [FB] (x4) Aluminum Rail + (x8) 1m Metal Straps + (x8) 0.5m Nylon Straps + (x8) 5m Nylon Straps + (x8) 13m Nylon Straps, [GB] (x4) Aluminum Rail + (x8) 1m Metal Straps + (x8) 0.5m Nylon Straps + (x8) 5m Nylon Straps, [HB] (x4) Aluminum Rail + (x8) 0.5m Nylon Straps + (x8) 5m Nylon Straps + (x8) 13m Nylon Straps, [00] without |
| Cable Extension | [0] without, [A] 7m for 1 set, [B] 7m for 2 sets |
| Magnetic Rail Mounting | [A0] One Rail, [B0] Two Rails, [C0] Four Rails, [00] without |
| Power Supply | [A] 100-240VAC | 50/60Hz |
| Ex-Approval | [0] Non-Ex |
| Communication | [100] Basic I/O |
| Connection Box | [0] without |
| Tagplate | [0] Tag Information on Foiled Nameplate |
