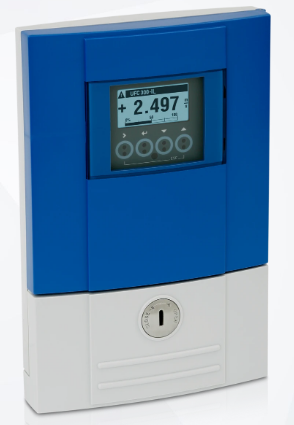

Representative photo. Please check item description for details.
Specifications
| Type | [VNG04N] UFC 300 W, Wall Mount Housing, [VNG04H] UFC 300 F, Field Mount Housing, [VNG04T] UFC 300 Spare Converter Insert - Requires Serial Number: ____________ |
| Power Supply | [1] 12-24 VDC, [4] 19-29 V DC/AC, [A] 85-250 VAC, 50/60 Hz |
| Ex-Approval | [0] without - non Ex, [4] Class 1 DIV 1 (US), [B] Class 1 DIV 1 (Canada), [1] ATEX Ex Zone 1 (Terminal Compartment "d"), [2] ATEX Ex Zone 1 (Terminal Compartment "e"), [F] IECEx Zone 1 (Terminal Compartment "d"), [G] IECEx Zone 1 (Terminal Compartment "e") |
| Cable Connection | [43] 3x 1/2" NPT, [63] 3x M20 x 1.5, [Y3] without |
| Converter Housing | [10] Polyamide, [10] Die-Cast Aluminum, [20] 1.4408|316 Stainless Steel, [Y0] without |
| Communication | [1] Basic IO (4-20 mA / HART + pulse / frequency + status + control), [2] Ex-i IO: Current Output Active + Pulse Output / Control Input Passive, [3] Ex-i IO: Current Output Passive + Pulse Output / Control Input Passive, [4] Current Output Active + Pulse Output Active, [6] Current Output Active + Pulse Output Passive, [7] Current Output Active + Pulse Output Namur, [8] Current Output Passive + Pulse Output Active, [B] Current Output Passive + Pulse Output Passive, [C] Current Output Passive + Pulse Output Namur, [D] Fieldbus IO: Profibus PA, [E] Fieldbus IO: Foundation Fieldbus, [F] Fieldbus IO: Profibus DP, [G] IO: RS485 Modbus |
| First IO Module | [0] No Module Possible, [8] Without IO Module, [1] Ex-i IO: Current Output Active + Pulse Output / Control Input Passive, [2] Ex-i IO: Current Output Passive + Pulse Output / Control Input Passive, [A] Current Output - Active, [B] Current Output - Passive, [C] Pulse Output - Active / High Current, [E] Pulse Output - Passive / High Current, [F] Pulse Output - Passive / Namur, [G] Control Input - Active / High Current, [H] Control Input - Active / Namur, [K] Control Input - Passive / High Current, [P] Current Input - Active, [R] Current Input - Passive |
| Second IO Module | [0] No Module Possible, [8] Without IO Module, [A] Current Output - Active, [B] Current Output - Passive, [C] Pulse Output - Active / High Current, [E] Pulse Output - Passive / High Current, [F] Pulse Output - Passive / Namur, [G] Control Input - Active / High Current, [H] Control Input - Active / Namur, [K] Control Input - Passive / High Current, [P] Current Input - Active, [R] Current Input - Passive |
| Sensor Configuration | [0] Single Path - S/M/L with Cable Splitter Box (Single Signal Cable), [1] Dual Path/Pipe & X-Mode Configurations (Dual signal cables), [1] Single Path - L - Directly Connected (without Cable Splitter Box) |
| Tagplate | [030000000000] without, Tag Info on Foiled Nameplate, [230000000000] 316SS (120x46mm), [330000000000] 316SS (67x25mm) |
| Custody Transfer | [0] without |
| Process Diagnostics | [0] Standard |
