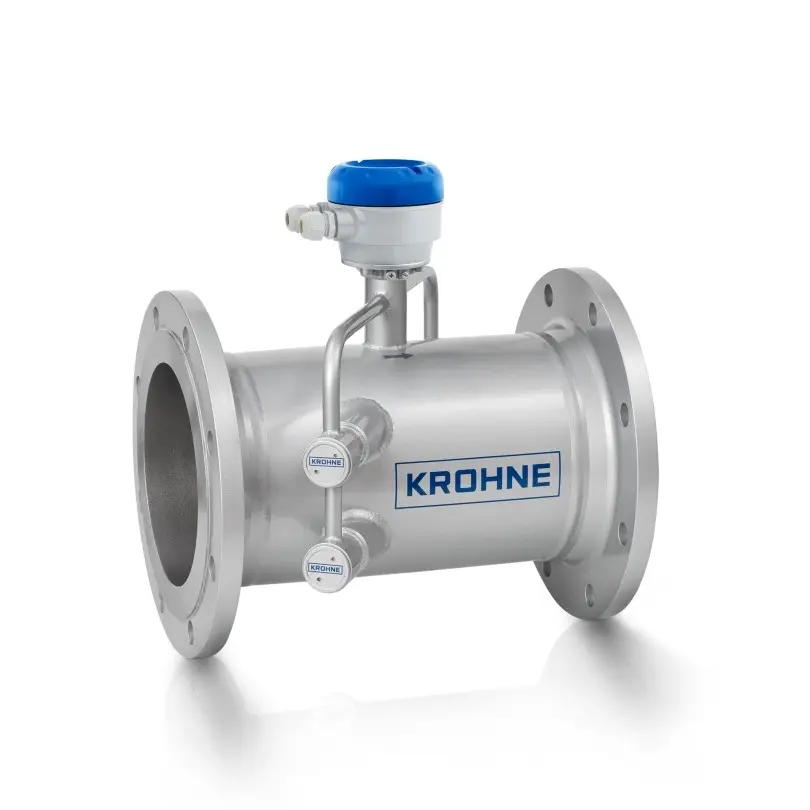

KROHNE Optisonic 7000 Ultrasonic Gas Flow Meter
The OPTISONIC 7300 is a universal 2-path ultrasonic gas flowmeter for process and utility gas measurements in oil and gas refineries or the chemical or petrochemical industries. It is also suitable for non-custody transfer natural gas applications or applications with (compressed) air, mixed or flue gases (up to +180°C / +356°F). Using the transit time differential measuring principle, the OPTISONIC 7300 delivers high performance over a wide flow range (up to DN600 / 24", turndown ratio: 100:1). Its patented titanium transducers are perfectly focused, equalizing process fluctuations and avoiding acoustic feedback.
The measured volume flow can always be calculated to standard conditions using the input of temperature and pressure sensors, which can be directly connected to the device. Following the initial calibration, the device provides accurate measuring results (±1% error of measured value). The OPTISONIC 7300 does not have the limitations associated with turbine or other traditional gas flowmeters like periodical recalibrations, maintenance, pressure loss and a limited flow range. The flowmeter comes with various digital communication options.
The OPTISONIC 7300 is a universal 2-path ultrasonic gas flowmeter for process and utility gas measurements in oil and gas refineries or the chemical or petrochemical industries. It is also suitable for non-custody transfer natural gas applications or applications with (compressed) air, mixed or flue gases (up to +180°C / +356°F). Using the transit time differential measuring principle, the OPTISONIC 7300 delivers high performance over a wide flow range (up to DN600 / 24", turndown ratio: 100:1). Its patented titanium transducers are perfectly focused, equalizing process fluctuations and avoiding acoustic feedback.
The measured volume flow can always be calculated to standard conditions using the input of temperature and pressure sensors, which can be directly connected to the device. Following the initial calibration, the device provides accurate measuring results (±1% error of measured value). The OPTISONIC 7300 does not have the limitations associated with turbine or other traditional gas flowmeters like periodical recalibrations, maintenance, pressure loss and a limited flow range. The flowmeter comes with various digital communication options.
Specifications
| Nominal Diameter | [VN7747] DN 50 | 2", [VN7748] DN 65 | 2-1/2", [VN774A] DN 80 | 3", [VN774B] DN 100 | 4", [VN774C] DN 125 | 5", [VN774D] DN 150 | 6", [VN774E] DN 200 | 8", [VN774F] DN 250 | 10", [VN774G] DN 300 | 12", [VN774H] DN 350 | 14", [VN774K] DN 400 | 16", [VN774L] DN 450 | 18", [VN774M] DN 500 | 20", [VN774N] DN 600 | 24" |
| Nominal Pressure | [A] 150lb RF ASME B 16.5, [B] 300lb RF ASME B 16.5, [D] 600lb RF ASME B 16.5, [E] 900lb RF ASME B 16.5 |
| Ex-Approvals | [0] without, [4] Class 1 DIV 1 - Dual Seal (US), [5] Class 1 DIV 2 (US), [B] Class 1 DIV 1 - Dual Seal (Canada), [C] Class 1 DIV 2 (Canada), [1] ATEX Zone 1, [F] IECEx Zone 1 |
| Design | [1] Compact Converter, [2] Compact Converter w/ Heavy Duty Neck for SS Converters, [A] Remote Converter w/ Stainless Steel Connection Box - 1/2" NPT, [C] Remote Converter w/ Stainless Steel Connection Box - M20 x 1.5 |
| Converter | [T] GFC 300C - Compact/Integral Mount Converter, [U] GFC 300F - Field Mount Converter, [0] without |
| Tube/Flange Material | [C] 2" - Steel - 150lb, [B] 2" - 316L Stainless Steel - 150lb, [C] 2-1/2" - Steel - 150lb, [B] 2-1/2" - 316L Stainless Steel - 150lb, [C] 3" - Steel - 150lb, [B] 3" - 316L Stainless Steel - 150lb, [C] 4" - Steel - 150lb, [B] 4" - 316L Stainless Steel - 150lb, [C] 5" - Steel - 150lb, [B] 5" - 316L Stainless Steel - 150lb, [C] 6" - Steel - 150lb, [B] 6" - 316L Stainless Steel - 150lb, [C] 8" - Steel - 150lb, [B] 8" - 316L Stainless Steel - 150lb, [C] 10" - Steel - 150lb, [B] 10" - 316L Stainless Steel - 150lb, [C] 12" - Steel - 150lb, [B] 12" - 316L Stainless Steel - 150lb, [C] 14" - Steel - 150lb, [B] 14" - 316L Stainless Steel - 150lb, [C] 16" - Steel - 150lb, [B] 16" - 316L Stainless Steel - 150lb, [C] 18" - Steel - 150lb, [B] 18" - 316L Stainless Steel - 150lb, [C] 20" - Steel - 150lb, [B] 20" - 316L Stainless Steel - 150lb, [C] 24" - Steel - 150lb, [B] 24" - 316L Stainless Steel - 150lb, [C] 2" - Steel - 300lb, [B] 2" - 316L Stainless Steel - 300lb, [C] 2-1/2" - Steel - 300lb, [B] 2-1/2" - 316L Stainless Steel - 300lb, [C] 3" - Steel - 300lb, [B] 3" - 316L Stainless Steel - 300lb, [C] 4" - Steel - 300lb, [B] 4" - 316L Stainless Steel - 300lb, [C] 5" - Steel - 300lb, [B] 5" - 316L Stainless Steel - 300lb, [C] 6" - Steel - 300lb, [B] 6" - 316L Stainless Steel - 300lb, [C] 8" - Steel - 300lb, [B] 8" - 316L Stainless Steel - 300lb, [C] 10" - Steel - 300lb, [B] 10" - 316L Stainless Steel - 300lb, [C] 12" - Steel - 300lb, [B] 12" - 316L Stainless Steel - 300lb, [C] 14" - Steel - 300lb, [B] 14" - 316L Stainless Steel - 300lb, [C] 16" - Steel - 300lb, [B] 16" - 316L Stainless Steel - 300lb, [C] 18" - Steel - 300lb, [B] 18" - 316L Stainless Steel - 300lb, [C] 20" - Steel - 300lb, [B] 20" - 316L Stainless Steel - 300lb, [C] 24" - Steel - 300lb, [B] 24" - 316L Stainless Steel - 300lb, [C] 2" - Steel - 600lb, [B] 2" - 316L Stainless Steel - 600lb, [C] 2-1/2" - Steel - 600lb, [B] 2-1/2" - 316L Stainless Steel - 600lb, [C] 3" - Steel - 600lb, [B] 3" - 316L Stainless Steel - 600lb, [C] 4" - Steel - 600lb, [B] 4" - 316L Stainless Steel - 600lb, [C] 5" - Steel - 600lb, [B] 5" - 316L Stainless Steel - 600lb, [C] 6" - Steel - 600lb, [B] 6" - 316L Stainless Steel - 600lb, [C] 8" - Steel - 600lb, [B] 8" - 316L Stainless Steel - 600lb, [C] 10" - Steel - 600lb, [B] 10" - 316L Stainless Steel - 600lb, [C] 12" - Steel - 600lb, [B] 12" - 316L Stainless Steel - 600lb, [C] 14" - Steel - 600lb, [B] 14" - 316L Stainless Steel - 600lb, [C] 16" - Steel - 600lb, [B] 16" - 316L Stainless Steel - 600lb, [C] 18" - Steel - 600lb, [B] 18" - 316L Stainless Steel - 600lb, [C] 20" - Steel - 600lb, [B] 20" - 316L Stainless Steel - 600lb, [C] 24" - Steel - 600lb, [B] 24" - 316L Stainless Steel - 600lb, [C] 2" - Steel - 900lb, [B] 2" - 316L Stainless Steel - 900lb, [C] 2-1/2" - Steel - 900lb, [B] 2-1/2" - 316L Stainless Steel - 900lb, [C] 3" - Steel - 900lb, [B] 3" - 316L Stainless Steel - 900lb, [C] 4" - Steel - 900lb, [B] 4" - 316L Stainless Steel - 900lb, [C] 5" - Steel - 900lb, [B] 5" - 316L Stainless Steel - 900lb, [C] 6" - Steel - 900lb, [B] 6" - 316L Stainless Steel - 900lb, [C] 8" - Steel - 900lb, [B] 8" - 316L Stainless Steel - 900lb, [C] 10" - Steel - 900lb, [B] 10" - 316L Stainless Steel - 900lb, [C] 12" - Steel - 900lb, [B] 12" - 316L Stainless Steel - 900lb, [C] 14" - Steel - 900lb, [B] 14" - 316L Stainless Steel - 900lb, [C] 16" - Steel - 900lb, [B] 16" - 316L Stainless Steel - 900lb |
| Cable Length | [0] Compact - none, [0] 5m | 15ft - Single Signal Cable, [1] 10m | 30ft - Single Signal Cable, [2] 15m | 45ft - Single Signal Cable, [3] 20m | 60ft - Single Signal Cable, [4] 25m | 75ft - Single Signal Cable, [5] 30m | 90ft - Single Signal Cable, [0] 5m | 15ft - Dual Signal Cable, [1] 10m | 30ft - Dual Signal Cable, [2] 15m | 45ft - Dual Signal Cable, [3] 20m | 60ft - Dual Signal Cable, [4] 25m | 75ft - Dual Signal Cable, [5] 30m | 90ft - Dual Signal Cable |
| Calibration | [000] Standard, dry calibration acc. ISO 17089-2, [200] 2" Meter Calibration with air, atm. pressure, at VSL/Euroloop - 5 points, [200] 2-1/2" Meter Calibration with air, atm. pressure, at VSL/Euroloop - 5 points, [200] 3" Meter Calibration with air, atm. pressure, at VSL/Euroloop - 5 points, [200] 4" Meter Calibration with air, atm. pressure, at VSL/Euroloop - 5 points, [200] 5" Meter Calibration with air, atm. pressure, at VSL/Euroloop - 5 points, [200] 6" Meter Calibration with air, atm. pressure, at VSL/Euroloop - 5 points, [200] 8" Meter Calibration with air, atm. pressure, at VSL/Euroloop - 5 points, [200] 10" Meter Calibration with air, atm. pressure, at VSL/Euroloop - 5 points, [200] 12" Meter Calibration with air, atm. pressure, at VSL/Euroloop - 5 points, [200] 14" Meter Calibration with air, atm. pressure, at VSL/Euroloop - 5 points, [200] 16" Meter Calibration with air, atm. pressure, at VSL/Euroloop - 5 points, [200] 18" Meter Calibration with air, atm. pressure, at VSL/Euroloop - 5 points, [200] 20" Meter Calibration with air, atm. pressure, at VSL/Euroloop - 5 points, [200] 24" Meter Calibration with air, atm. pressure, at VSL/Euroloop - 5 points |
| Finish | [1] Standard, Grey, [3] Offshore, Grey - 2", [3] Offshore, Grey - 2-1/2", [3] Offshore, Grey - 3", [3] Offshore, Grey - 4", [3] Offshore, Grey - 5", [3] Offshore, Grey - 6", [3] Offshore, Grey - 8", [3] Offshore, Grey - 10", [3] Offshore, Grey - 12", [3] Offshore, Grey - 14", [3] Offshore, Grey - 16", [3] Offshore, Grey - 18", [3] Offshore, Grey - 20", [3] Offshore, Grey - 24" |
| Sensor Frequency | [000] 330 kHz, [100] 150 kHz |
| Tagplate | [030] without - Tag Info on Foiled Nameplate, [230] 316|1.4401 tagplate ( 120 x 46 mm ), [330] 316|1.4401 tagplate ( 67 x 25 mm ) |
| Transducer Gasket Material | [0] FPM|FKM, [1] PFPM|FFKM - Single Path, [1] PFPM|FFKM - Dual Path |
| Transducer Material | [000000] Titanium Grade 29, [400000] Inconel - Single Path, [400000] Inconel - Dual Path |
| Protection Class | [0] IP66/67 |
