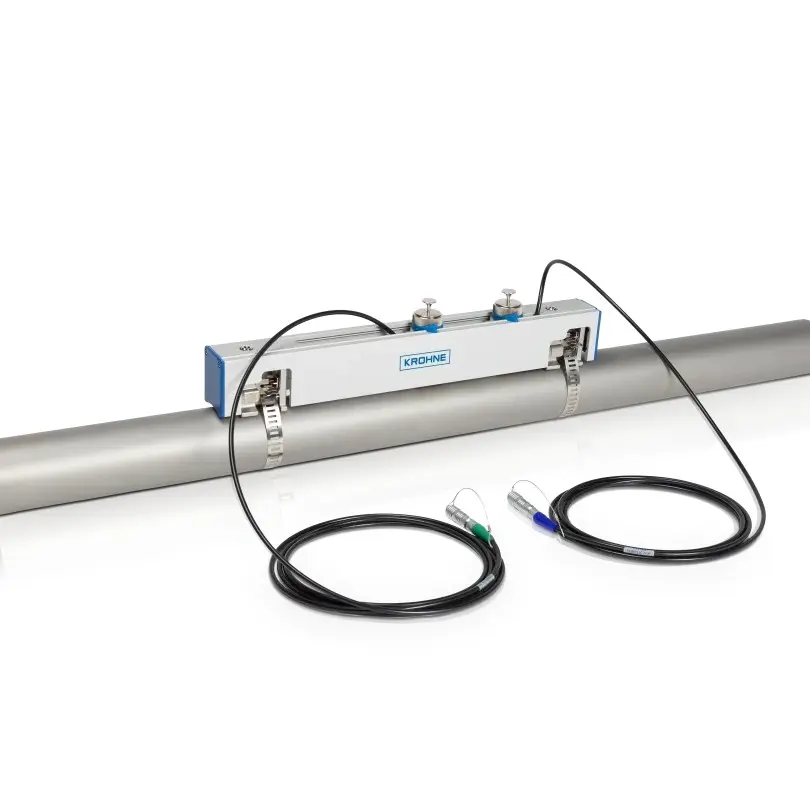

KROHNE Optisonic 6000P-v2 Portable Clamp-On Ultrasonic Flow Transducer
The OPTISONIC 6300 P is a portable, battery-powered ultrasonic clamp-on flowmeter for temporary flow measurement of (non-)conductive liquids in virtually all industries. It can be used at virtually any location without interrupting the process or cutting pipes. Due to its flexibility, the flowmeter is equally suited for comparative measurements on stationary measuring equipment (e.g. pumps, flowmeters etc.) or for use as a short-term replacement of faulty devices. The clamp-on flowmeter comes with a measurement option for thermal energy applications as standard.
The OPTISONIC 6300 P combines robust, easy-to-mount clamp-on sensor rails with a battery-powered signal converter for 1 or 2 path measurement. The portable converter comes with full measurement functionality and an integrated data logger. All measurement data can be monitored and analysed via a smart handheld or mobile device using the OPTISONIC 6300 P mobile app. The Android app is free and makes it easy to set up and commission the clamp-on flowmeter. A user-friendly installation wizard guides the user through the configuration process. A USB cable or secure wireless Bluetooth® connection transfers data between the smart device and signal converter. All data is saved on the mobile device and can be evaluated.
The OPTISONIC 6300 P is a portable, battery-powered ultrasonic clamp-on flowmeter for temporary flow measurement of (non-)conductive liquids in virtually all industries. It can be used at virtually any location without interrupting the process or cutting pipes. Due to its flexibility, the flowmeter is equally suited for comparative measurements on stationary measuring equipment (e.g. pumps, flowmeters etc.) or for use as a short-term replacement of faulty devices. The clamp-on flowmeter comes with a measurement option for thermal energy applications as standard.
The OPTISONIC 6300 P combines robust, easy-to-mount clamp-on sensor rails with a battery-powered signal converter for 1 or 2 path measurement. The portable converter comes with full measurement functionality and an integrated data logger. All measurement data can be monitored and analysed via a smart handheld or mobile device using the OPTISONIC 6300 P mobile app. The Android app is free and makes it easy to set up and commission the clamp-on flowmeter. A user-friendly installation wizard guides the user through the configuration process. A USB cable or secure wireless Bluetooth® connection transfers data between the smart device and signal converter. All data is saved on the mobile device and can be evaluated.
Specifications
| Measurement Range | [VNE143] Small - DN 15…150 | 1/2"…6", [VNE148] Medium - DN 50…1500 | 2"…60", [VNE14E] Large - DN 200…4000 | 8"…160" |
| Transducer Frequency | [5] 500kHz, [6] 1MHz, [7] 2MHz |
| Converter | [D] UFC 300P-v2, [0] without (Transducer Set Only) |
| Calibration | [0001] Standard, Including Calibration of Transducer Pair, [3001] 3 Point Verification on DN 100 | 4" Tube, [7001] 3 Point Verification on DN 1000 | 40" Tube |
| Destination | [U00] USA, [C00] Canada, [000] Standard/Europe |
| Ex-Approval | [0] Non-Ex |
| Cable Connection | [7] Connector Standard for UFC300P Converter |
| Rail Material | [0] without (Provided with Converter) |
| Cable Length | [0] 3m | 9ft |
| Protection Class | [0000] IP66/67 |
| Tagplate | [0] Tag Information on Foiled Nameplate |
| Quick Start Guide | [000010] Supplied with Converter |
