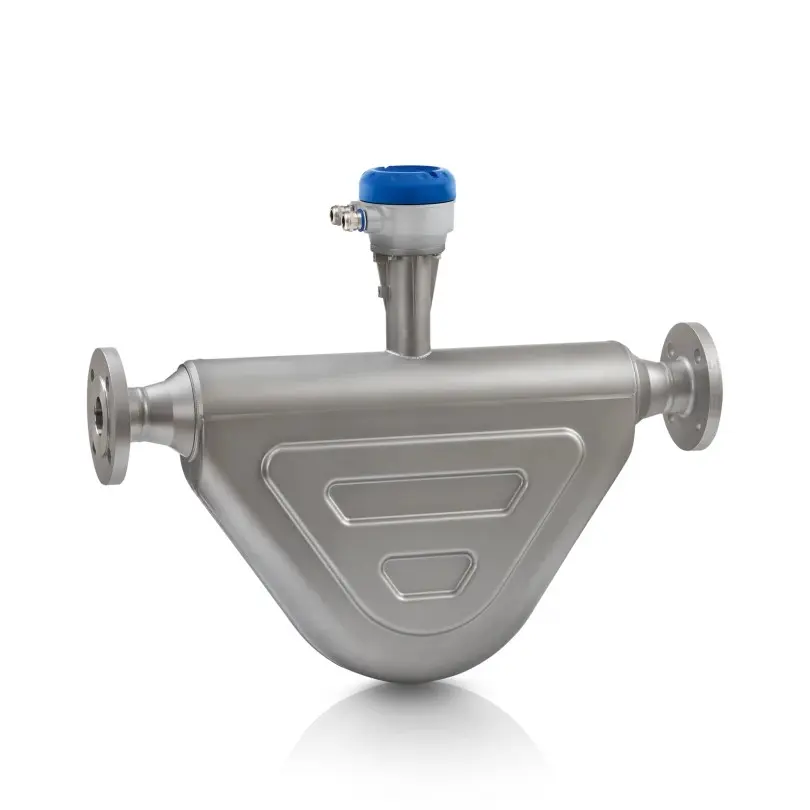

KROHNE Optimass 6000-Size 10; Twin Bent-Tube Coriolis Flow Sensor
The OPTIMASS 6400 is the standard high performance Coriolis mass flowmeter for the process industry. The twin bent tube meter offers superior performance and high accuracy in virtually any application: From process control in (petro)chemical applications to concentration measurements in the food and beverage industry to custody transfer filling and transport measurements in the oil and gas industry. Its high-end options also make the OPTIMASS 6400 the optimum device for cryogenic media like Liquefied Natural Gas (LNG) with temperatures down to -200°C / -328°F as well as applications involving high operating temperatures (up to 400°C / 752°F) or pressures (up to 200 barg / 2900 psig).
The OPTIMASS 6400 features Entrained Gas Management (EGMTM) for liquid applications and thus maintains operation even with entrained gas of up to 100%. The meter has various approvals for hazardous areas and is also suitable for use in Safety Instrumented Systems (SIL 2/3). It comes with extensive diagnostic functions (NE 107) and various digital communication options. Via the OPTICHECK Flow Mobile app all device settings can be managed on-site via a secure Bluetooth® connection. In this way, a variety of commissioning tasks, e.g. zero calibration or configuration of diagnostics, can be done wirelessly.
The OPTIMASS 6400 is the standard high performance Coriolis mass flowmeter for the process industry. The twin bent tube meter offers superior performance and high accuracy in virtually any application: From process control in (petro)chemical applications to concentration measurements in the food and beverage industry to custody transfer filling and transport measurements in the oil and gas industry. Its high-end options also make the OPTIMASS 6400 the optimum device for cryogenic media like Liquefied Natural Gas (LNG) with temperatures down to -200°C / -328°F as well as applications involving high operating temperatures (up to 400°C / 752°F) or pressures (up to 200 barg / 2900 psig).
The OPTIMASS 6400 features Entrained Gas Management (EGMTM) for liquid applications and thus maintains operation even with entrained gas of up to 100%. The meter has various approvals for hazardous areas and is also suitable for use in Safety Instrumented Systems (SIL 2/3). It comes with extensive diagnostic functions (NE 107) and various digital communication options. Via the OPTICHECK Flow Mobile app all device settings can be managed on-site via a secure Bluetooth® connection. In this way, a variety of commissioning tasks, e.g. zero calibration or configuration of diagnostics, can be done wirelessly.
Alternative Products
Specifications
| Tube Material | [VE724S] 316 / 316 L Dual certified Stainless Steel, [VE724H] Hastelloy C22 |
| Surface Finish | [0] Standard, [2] Surface finish Ra 0.8 μm incl. Certificate |
| Process Connection | [KD] 1/2" ASME 150lb, [KE] 1/2" ASME 300lb, [KF] 1/2" ASME 600lb, [K1] 1/2" ASME 900lb, [K2] 1/2" ASME 1500lb, [KR] 1/2" Tri-Clamp, [LR] 3/4" Tri-Clamp |
| Sealing Face | [0] Standard, [E] RTJ acc. ASME B16.5 |
| Design | [0] Short Stem (-196°C to +150°C), [K] Extended Stem (-196°C to +400°C) |
| Options | [0] without, [1] Standard/High Temp Insulation Casing, [2] Cryogenic/Low Temp Insulation Casing, [5] Liquid/Steam Heating Jacket - 1/2" ASME 150lb, [A] Purge Fittings 1/2" NPTF |
| Hazardous Area Approvals | [0] without, [A] cFMus GP (USA), [B] cFMus OL (Canada), [T] cFMus (USA), [U] cFMus (Canada) / Dual Seal for Liquids, [V] cFMus (Canada) / Dual Seal for Gases |
| Sanitary & Design Approvals | [0] without, [2] 3A, [M] NACE according to MRO103 / ISO 17945, [N] NACE according to MRO175 / ISO 15156 |
| Configuration | [0] Compact/Integral Mount Converter, [1] Remote Converter with Aluminum Junction Box, [2] Remote Converter with Stainless Steel Junction Box |
| Calibration | [0] 3 Point Mass Flow Calibration, [1] 5 Point Mass Flow Calibration, [2] 5 Point Mass Flow Calibration Bi-Directional + ISO/IEC 17025 Certificate, [3] 3 Point Volume Flow Calibration (acc. ISO 10790), [4] 5 Point Volume Flow Calibration (acc. ISO 10790), [5] 5 Point Volume Flow Calibration Bi-Directional (acc. ISO 10790) + ISO/IEC 17025 Certificate, [A] 3 point Mass Flow Calibration + Density Calibration with Water at 3 Temps + Certificate, [B] 5 point Mass Flow Calibration + Density Calibration with Water at 3 Temps + Certificate, [D] 5 Point Mass Flow Calibration + ISO/IEC 17025 Calibration Certificate, [E] 5 Point Volume Flow Calibration (acc. ISO 10790) + ISO/IEC 17025 Calibration Certificate, [R] 5 Point Mass Flow 0.05% Calibration + ISO/IEC 17025 Certificate, [S] 5 Point Mass Flow 0.05% Calibration with Volume acc. ISO 10790 + ISO/IEC 17025 Certificate |
| Process Requirements | [0] Standard, [1] Degreasing of Wetted Parts + Certificate (Mandatory for Oxygen Measurements), [C] Cryogenic ( -196°C to 40°C), [D] Cryogenic ( -196°C to 40°C) + Degreasing of Wetted Parts + Certificate, [T] High Temperature ( -50°C to 400°C) |
| Extended Options | [00] without - Liquids, [10] without - Non-Hazardous Gases Below 10 Bar, [Z0] acc. OIML R117-1 for Liquids Other Than Water, [P0] acc. OIML R137-1 for Fuel Gases (Including Burst Disk), [G0] Burst Disk for Gas Applications |
| Converter Type | [6] MFC 400 Compact Mount, [7] MFC 400 Field Mount, [3] MFC 400-v1 Compact Mount, [4] MFC 400-v1 Field Mount |
| Destination | [0] without, [C] Canada, [U] USA |
| Functional Safety | [0] without, [S] SIL |
