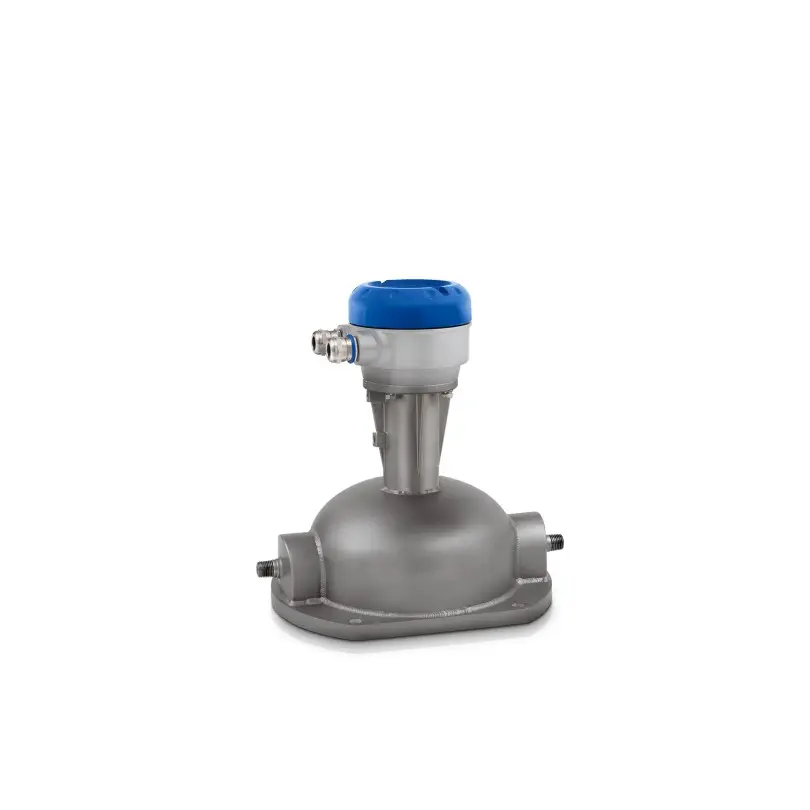

KROHNE Optimass 3000-Size 04; Single Z-Tube Low-Flow Coriolis Flow Sensor
The OPTIMASS 3400 is a cost-effective Coriolis mass flowmeter for accurate flow measurement of liquids and gases in a variety of demanding low flow and dosing applications (from 0.3 kg/h or 0.01 lb/min upwards). The OPTIMASS 3400 features Entrained Gas Management (EGMTM) for liquid applications and thus maintains operation even with entrained gas of up to 100%.
The OPTIMASS 3400 features a single Z-tube design which guarantees a low pressure drop across the meter. The device is available with NPT connections, a range of flange connections as well as standard hygienic connections. Like with all other KROHNE Coriolis mass flowmeters there are no installation restrictions as the OPTIMASS 3400 is not affected by crosstalk/line vibrations and can thus be installed in series or in parallel. The Coriolis meter is approved for use in hazardous areas. It offers various diagnostic functions (NE 107) and digital communication options. Via the OPTICHECK Flow Mobile app all device settings can be managed on-site via a secure Bluetooth® connection. In this way, a variety of commissioning tasks, e.g. zero calibration or configuration of diagnostics, can be done wirelessly.
The OPTIMASS 3400 is a cost-effective Coriolis mass flowmeter for accurate flow measurement of liquids and gases in a variety of demanding low flow and dosing applications (from 0.3 kg/h or 0.01 lb/min upwards). The OPTIMASS 3400 features Entrained Gas Management (EGMTM) for liquid applications and thus maintains operation even with entrained gas of up to 100%.
The OPTIMASS 3400 features a single Z-tube design which guarantees a low pressure drop across the meter. The device is available with NPT connections, a range of flange connections as well as standard hygienic connections. Like with all other KROHNE Coriolis mass flowmeters there are no installation restrictions as the OPTIMASS 3400 is not affected by crosstalk/line vibrations and can thus be installed in series or in parallel. The Coriolis meter is approved for use in hazardous areas. It offers various diagnostic functions (NE 107) and digital communication options. Via the OPTICHECK Flow Mobile app all device settings can be managed on-site via a secure Bluetooth® connection. In this way, a variety of commissioning tasks, e.g. zero calibration or configuration of diagnostics, can be done wirelessly.
Alternative Products
Specifications
| Tube Material | [VE044S] 316L Stainless Steel, [VE044H] Hastelloy C22 |
| Connection Size | [HK] 1/4" MNPT, [KD] 1/2" ASME 150lb, [KE] 1/2" ASME 300lb, [KR] 1/2" Tri-Clamp (ASME BPE/Triclover) |
| Sealing Face | [0] Standard, [E] RTJ Acc. ASME 16.5 |
| Operating Pressure | [A] ≤ 30 bar (30 Bar Secondary Housing), [C] > 30 bar (30 Bar Secondary Housing incl. Burst Disc) |
| Options | [0] without, [2] Liquid/steam heating jacket 1/4" FNPT, [3] Purge fittings 1/4" FNPT |
| Hazardous Area Approvals | [0] without, [A] cFMus GP (USA), [B] cFMus OL (Canada), [T] cFMus (USA), [U] cFMus (Canada) / Dual Seal for Liquids, [V] cFMus (Canada) / Dual Seal for Gases |
| Configuration | [0] Compact/Integral Mount Converter, [1] Remote Converter with Aluminum Junction Box, [2] Remote Converter with Stainless Steel Junction Box, [D] Direct Digital Comms (DDC) via Modbus with Aluminum Junction Box, [E] Direct Digital Comms (DDC) via Modbus with Stainless Steel Junction Box |
| Calibration | [0] 3 Point Mass Flow Calibration, [1] 5 Point Mass Flow Calibration, [3] 3 Point Volume Flow Calibration (acc. ISO 10790), [4] 5 Point Volume Flow Calibration (acc. ISO 10790) |
| Cleaning/Degreasing | [0] without, [1] Degreasing of Wetted Parts + Certificate (Mandatory for Oxygen Measurements) |
| Converter Type | [6] MFC 400 Compact Mount, [7] MFC 400 Field Mount, [3] MFC 400-v1 Compact Mount, [4] MFC 400-v1 Field Mount, [1] MFC 010C |
| Destination | [0] without, [U] USA, [C] Canada |
| Surface Finish | [0] Standard |
| Hygienic/Sanitary Approvals | [0] without |
| Extended Options | [00] without |
| SIL | [0] without |
