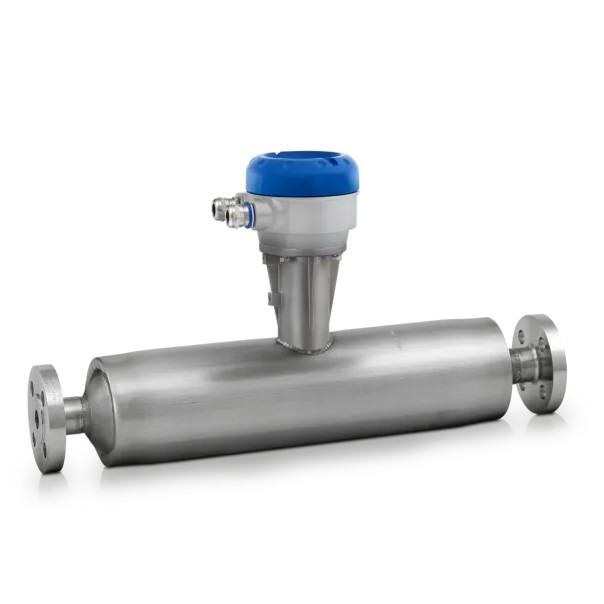

KROHNE Optimass 1000 S25 Twin Straight-Tube Coriolis Flow Sensor
The OPTIMASS 1400 is a cost-effective twin straight tube Coriolis mass flowmeter for a wide range of standard applications with gases and liquids (up to 170,000 kg/h or 6,235 lb/min). The meter features Entrained Gas Management (EGMTM) for liquid applications and thus maintains operation even with entrained gas of up to 100%.
The OPTIMASS 1400 features an optimised flow splitter for minimum pressure loss and can be drained and cleaned easily. Next to flange process connections it supports a wide range of standard hygienic connections for food and beverage applications. Like with all other KROHNE Coriolis mass flowmeters there are no installation restrictions as the OPTIMASS 1400 is not affected by crosstalk/line vibrations and can thus be installed in series or in parallel. It is also approved for use in hazardous areas. The Coriolis mass flowmeter provides enhanced diagnostics (NE 107) and comes with various digital communication options. Via the OPTICHECK Flow Mobile app all device settings can be managed on-site via a secure Bluetooth® connection. In this way, a variety of commissioning tasks, e.g. zero calibration or configuration of diagnostics, can be done wirelessly.
The OPTIMASS 1400 is a cost-effective twin straight tube Coriolis mass flowmeter for a wide range of standard applications with gases and liquids (up to 170,000 kg/h or 6,235 lb/min). The meter features Entrained Gas Management (EGMTM) for liquid applications and thus maintains operation even with entrained gas of up to 100%.
The OPTIMASS 1400 features an optimised flow splitter for minimum pressure loss and can be drained and cleaned easily. Next to flange process connections it supports a wide range of standard hygienic connections for food and beverage applications. Like with all other KROHNE Coriolis mass flowmeters there are no installation restrictions as the OPTIMASS 1400 is not affected by crosstalk/line vibrations and can thus be installed in series or in parallel. It is also approved for use in hazardous areas. The Coriolis mass flowmeter provides enhanced diagnostics (NE 107) and comes with various digital communication options. Via the OPTICHECK Flow Mobile app all device settings can be managed on-site via a secure Bluetooth® connection. In this way, a variety of commissioning tasks, e.g. zero calibration or configuration of diagnostics, can be done wirelessly.
Alternative Products
Specifications
| Surface Finish | [0] Standard, [2] Wetted Ra <0.8 μm + polish of all externals (electropolished) |
| Process Connection | [ND] 1-1/2" ASME 150lb, [NE] 1-1/2" ASME 300lb, [NF] 1-1/2" ASME 600lb, [MD] 1" ASME 150lb, [ME] 1" ASME 300lb, [MF] 1" ASME 600lb, [PD] 2" ASME 150lb, [NR] 1-1/2" Tri-Clamp (ASME BPE dimensions/Triclover), [NX] 1-1/2" Tri-Clamp (ASME BPE - CRN Approved) |
| Sealing Face | [0] Standard, [E] RTJ Acc ASME B16.5 |
| Secondary Containment | [G] All Externals SS 304 / 304L - Non-Certified Secondary Pressure Containment, [H] All Externals SS 316 / 316L - Non-Certified Secondary Pressure Containment, [0] All Externals SS 304 / 304L - PED Approved Secondary Containment 63bar, [A] All Externals SS 316 / 316L - PED Approved Secondary Containment 63bar, [B] All Externals SS 316 / 316L - PED Approved Secondary Containment 100bar |
| Options | [0] without, [1] Liquid/Steam Heating Jacket - Ermeto 12, [2] Liquid/Steam Heating Jacket - 1/2" NPTF, [3] Purge Fittings - 1/2" NPTF |
| Hazardous Area Approvals | [0] without, [A] cFMus GP (USA), [T] cFMus (USA), [B] cFMus OL (Canada), [U] cFMus (Canada) / Dual Seal for Liquids, [V] cFMus (Canada) / Dual Seal for Gases |
| Hygenic Approvals | [0] without, [2] 3A, [N] NACE acc. to MR0175/ISO 15156 |
| Configuration | [0] Compact/Integral Mount Converter, [1] Remote Converter w/ Aluminum Junction Box, [2] Remote Converter w/ Stainless Steel Junction Box, [D] Direct Digital Comms (DDC) via Modbus w/ Aluminum Junction Box, [E] Direct Digital Comms (DDC) via Modbus w/ Stainless Steel Junction Box |
| Calibration | [0] Standard 3 Point Mass Flow Calibration, [1] 5 Point Mass Flow Calibration, [3] 3 Point Volume Flow Calibration (acc. ISO 10790), [4] 5 Point Volume Flow Calibration (acc. ISO 10790), [A] 3 point Mass Flow Calibration + Density Calibration with Water at 3 Temps + Certificate, [B] 5 point Mass Flow Calibration + Density Calibration with Water at 3 Temps + Certificate, [D] 5 Point Mass Flow Calibration + ISO/IEC 17025 Calibration Certificate, [E] 5 Point Volume Flow Calibration (acc. ISO 10790) + ISO/IEC 17025 Calibration Certificate |
| Degreasing | [0] without, [1] Desgreasing Wetted Parts + Cert. (Required for O2 Applications) |
| Extended Options | [00] without, [Y0] USA NTEP, [F0] Measurement Canada, [01] Made in USA |
| Converter Type | [6] MFC400 Compact Mount, [7] MFC400 Field Mount, [3] MFC400-v1 (VE53) Compact Mount, [4] MFC400-v1 (VE53) Field Mount, [1] MFC010C |
| Destination | [0] without, [U] USA, [C] Canada |
| Tube Material | [VE844S] Stainless Steel UNS S31803 |
| Functional Safety | [0] without |
