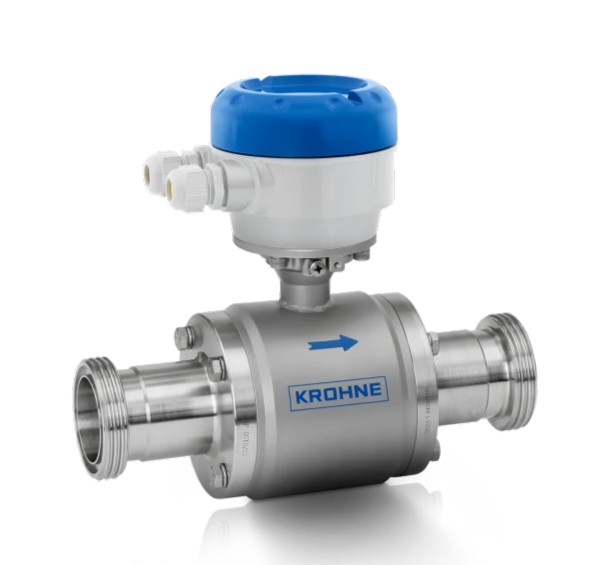

The OPTIFLUX 6000 is an electromagnetic flow sensor for hygienic applications.
Specifications
| Nominal Diameter | [VN2241] DN 2.5 | 1/10", [VN2242] DN 4 | 1/8", [VN2243] DN 6 | 1/4", [VN2245] DN 10 | 3/8", [VN2246] DN 15 | 1/2", [VN2248] DN 25 | 1", [VN224B] DN 40 | 1-1/2", [VN224C] DN 50 | 2", [VN224D] DN 65 | 2-1/2", [VN224E] DN 80 | 3", [VN224F] DN 100 | 4", [VN224G] DN 125 | 5", [VN224H] DN 150 | 6" |
| Process Connection | [P] DN 2.5 | 1/10" Tri-Clamp Connection, [P] DN 4 | 1/8" Tri-Clamp Connection, [P] DN 6 | 1/4" Tri-Clamp Connection, [P] DN 10 | 3/8" Tri-Clamp Connection, [P] DN 15 | 1/2" Tri-Clamp Connection, [P] DN 25 | 1" Tri-Clamp Connection, [P] DN 40 | 1-1/2" Tri-Clamp Connection, [P] DN 50 | 2" Tri-Clamp Connection, [P] DN 65 | 2-1/2" Tri-Clamp Connection, [P] DN 80 | 3" Tri-Clamp Connection, [P] DN 100 | 4" Tri-Clamp Connection, [P] DN 125 | 5" Tri-Clamp Connection, [P] DN 150 | 6" Tri-Clamp Connection, [T] ISO 2037 - Weld-End Connection |
| System Design | [1] Compact Converter, [2] Heavy Duty Neck for SS Compact Converter, [4] Remote Converter w/ Aluminum Connection Box - 1/2" NPT, [6] Remote Converter w/ Aluminum Connection Box - M20 x 1.5, [A] Remote Converter w/ Stainless Steel Connection Box - 1/2" NPT, [C] Remote Converter w/ Stainless Steel Connection Box - M20 x 1.5 |
| Converter Model | [30] IFC 100 C (Compact), [30] 1/10" to 1/4" | IFC 100 C (Compact), [40] IFC 100 W (Wall Mount), [40] 1/10" to 1/4" | IFC 100 W (Wall Mount), [C0] IFC 300 C (Compact), [D0] IFC 300 F (Field Mount), [E0] IFC 300 W (Wall Mount), [F0] IFC 300 R (Rack Mount), [K0] IFC 050 C (Compact), [L0] IFC 050 W (Wall Mount) |
| Sealing | [0] L-Profile O-Ring EPDM, [D] L-Profile O-Ring Silicone |
| Electrodes | [B] Hastelloy C22, [6] Titanium, [A] St. Steel 1.4404|316L, [1] St. steel DIN 1.4571|316 Ti, [3] Hastelloy C4, [4] Hastelloy B2, [5] Tantalum, [7] Platinum (Wetted Parts) |
| Protection Class | [0] IP66/67, [0] IP66/67/69, [2] IP68 Factory |
| Cable Length | [00] Compact - None, [00] 5m | 15 ft DS Signal + LIYCY Coil Power Cable, [01] 10m | 30 ft DS Signal + LIYCY Coil Power Cable, [02] 15m | 45 ft DS Signal + LIYCY Coil Power Cable, [03] 20m | 60 ft DS Signal + LIYCY Coil Power Cable, [04] 25m | 75 ft DS Signal + LIYCY Coil Power Cable, [05] 30m | 90 ft DS Signal + LIYCY Coil Power Cable, [06] 40m | 120 ft DS Signal + LIYCY Coil Power Cable, [07] 50m | 150 ft DS Signal + LIYCY Coil Power Cable, [08] 100m | 300 ft DS Signal + LIYCY Coil Power Cable, [00] 5m | 15 ft DS Signal Cable, [01] 10m | 30 ft DS Signal Cable, [02] 15m | 45 ft DS Signal Cable, [03] 20m | 60 ft DS Signal Cable, [04] 25m | 75 ft DS Signal Cable, [05] 30m | 90 ft DS Signal Cable, [06] 40m | 120 ft DS Signal Cable, [07] 50m | 150 ft DS Signal Cable, [08] 100m | 300 ft DS Signal Cable |
| Calibration/Tags | [00000000] Standard, [20000000] Standard + 316|1.4401 Tagplate (120 x 46mm), [30000000] Standard + 316|1.4401 Tagplate (67 x 25mm), [A0000000] Custody Transfer, [C0000000] Custody Transfer + 316|1.4401 Tagplate (120 x 46mm), [D0000000] Custody Transfer + 316|1.4401 Tagplate (67 x 25mm), [H0000000] 3 points with water acc. ISO/IEC 17025 2, [R0000000] Extended Calibration, [S0000000] Extended Calibration + 316|1.4401 Tagplate (120 x 46mm), [T0000000] Extended Calibration + 316|1.4401 Tagplate (67 x 25mm) |
| Ex Approvals | [0] non-Ex |
