KROHNE Optiflux 5000SW Advanced, Ceramic Electromagnetic Flow Sensor - Sandwich-Style

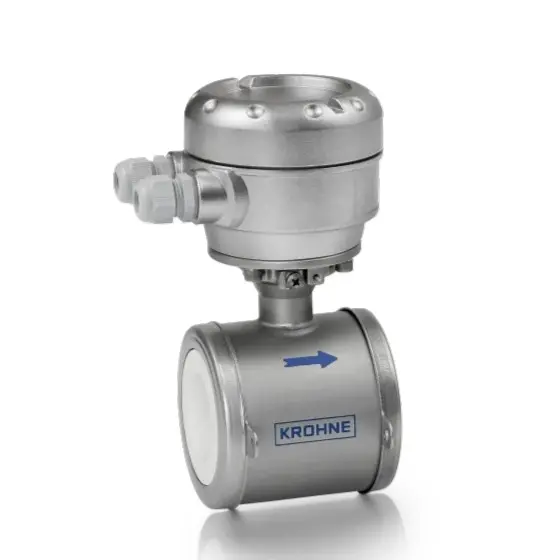

Representative photo. Please check item description for details.

KROHNE Optiflux 5000SW Advanced, Ceramic Electromagnetic Flow Sensor - Sandwich-Style

https://www.branom.com/web/image/product.template/553542/image_1920?unique=c26756c
(0 review)

The OPTIFLUX 5000 is one of the most accurate flowmeters available in the market today. This is the result of a special tube design with conical parts, optimizing the flow profile. Leading metrological institutes use the OPTIFLUX 5000 as their master meter in combination with the high-end signal converter IFC 300.

By implementing oxide ceramics, KROHNE is using a technically superior material for electromagnetic flowmeters (EMF) and pressure measuring devices that is permanently resistant to corrosive and abrasive media. Additionally, ceramic is immune to temperature shocks and absolutely safe against gas discharge and leaks – all in all a unique combination for high-performance applications in all industrial sectors.


  • Nominal Diameter
  • Nominal Pressure
  • Ex-Approvals
  • System Design
  • Converter Model
  • Mounting Material
  • Grounding Rings (x2) / Sealing Material
  • Electrodes
  • Protection Class
  • Cable Length
  • Calibration

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

The OPTIFLUX 5000 is one of the most accurate flowmeters available in the market today. This is the result of a special tube design with conical parts, optimizing the flow profile. Leading metrological institutes use the OPTIFLUX 5000 as their master meter in combination with the high-end signal converter IFC 300.

By implementing oxide ceramics, KROHNE is using a technically superior material for electromagnetic flowmeters (EMF) and pressure measuring devices that is permanently resistant to corrosive and abrasive media. Additionally, ceramic is immune to temperature shocks and absolutely safe against gas discharge and leaks – all in all a unique combination for high-performance applications in all industrial sectors.

Specifications

Nominal Diameter [VN1841] DN 2.5 | 1/10" (For DN 15 | 1/2" Flanges), [VN1842] DN 4 | 1/8" (For DN 15 | 1/2" Flanges), [VN1843] DN 6 | 1/4" (For DN 15 | 1/2" Flanges), [VN1845] DN 10 | 3/8" (For DN 15 | 1/2" Flanges), [VN1846] DN 15 | 1/2", [VN1848] DN 25 | 1", [VN184B] DN 40 | 1-1/2", [VN184C] DN 50 | 2", [VN184E] DN 80 | 3", [VN184F] DN 100 | 4"
Nominal Pressure [A] 150 lb ASME B 16.5, [B] 300 lb ASME B 16.5, [B] 300 lb ASME B 16.5
Ex-Approvals [0] non-Ex, [5] FM Class 1 DIV 2, [A] cCSAus OL, [C] CSA Class 1 DIV 2
System Design [1] Compact Converter, [4] Remote Converter w/ Aluminum Connection Box - 1/2" NPT, [6] Remote Converter w/ Aluminum Connection Box - M20 x 1.5, [A] Remote Converter w/ Stainless Steel Connection Box - 1/2" NPT, [C] Remote Converter w/ Stainless Steel Connection Box - M20 x 1.5
Converter Model [C] IFC 300C - Compact Mount, [D] IFC 300F - Field Mount, [E] IFC 300W - Wall Mount, [F] IFC 300R - Rack Mount, [3] IFC 100C - Compact Mount, [4] IFC 100W - Wall Mount
Mounting Material [3] Rubber Sleeves, [1] Class 150 Steel, Galv. / Rubber Sleeves (DN 2.5...25 | 1/10...1"), [2] Class 150 St.Steel A2 / Rubber Sleeves (DN 2.5...25 | 1/10...1"), [1] Class 150 Steel, Galv. / Rubber Sleeves (DN 40 | 1-1/2"), [2] Class 150 St.Steel A2 / Rubber Sleeves (DN 40 | 1-1/2"), [1] Class 150 Steel, Galv. / Rubber Sleeves (DN 50 | 2"), [2] Class 150 St.Steel A2 / Rubber Sleeves (DN 50 | 2"), [1] Class 150 Steel, Galv. / Rubber Sleeves (DN 80 | 3"), [2] Class 150 St.Steel A2 / Rubber Sleeves (DN 80 | 3"), [1] Class 150 Steel, Galv. / Rubber Sleeves (DN 100 | 4"), [2] Class 150 St.Steel A2 / Rubber Sleeves (DN 100 | 4"), [1] Class 300 Steel, Galv. / Rubber Sleeves (DN 2.5...25 | 1/10...1"), [2] Class 300 St.Steel A2 / Rubber Sleeves (DN 2.5...25 | 1/10...1"), [1] Class 300 Steel, Galv. / Rubber Sleeves (DN 40 | 1-1/2"), [2] Class 300 St.Steel A2 / Rubber Sleeves (DN 40 | 1-1/2"), [1] Class 300 Steel, Galv. / Rubber Sleeves (DN 50 | 2"), [2] Class 300 St.Steel A2 / Rubber Sleeves (DN 50 | 2"), [1] Class 300 Steel, Galv. / Rubber Sleeves (DN 80 | 3"), [2] Class 300 St.Steel A2 / Rubber Sleeves (DN 80 | 3"), [1] Class 300 Steel, Galv. / Rubber Sleeves (DN 100 | 4"), [2] Class 300 St.Steel A2 / Rubber Sleeves (DN 100 | 4")
Grounding Rings (x2) / Sealing Material [3] St. steel DIN 1.4404|316 L / O-Ring FPM|FKM, [T] St. steel DIN 1.4404|316 L / O-Ring EPDM, [7] Hastelloy C22 / O-Ring FPM|FKM, [8] Hastelloy C22 / O-Ring EPDM, [D] Hastelloy C22 / O-Ring PFPM|FFKM, [6] Titanium / O-Ring EPDM, [B] Titanium / O-Ring PFPM|FFKM, [C] Tantalum / Seal PTFE|PF29, [F] without / Gasket Filled PTFE, [E] without / Gasket Graphite, [G] 1" St. steel DIN 1.4404|316 L / Gasket Filled PTFE, [R] 1" St. steel DIN 1.4404|316 L / Gasket Graphite, [H] 1" Hastelloy C22 / Gasket Filled PTFE, [S] 1" Hastelloy C22 / Gasket Graphite, [P] 1" Tantalum / Seal PTFE|PF29, [G] 1-1/2" St. steel DIN 1.4404|316 L / Gasket Filled PTFE, [R] 1-1/2" St. steel DIN 1.4404|316 L / Gasket Graphite, [H] 1-1/2" Hastelloy C22 / Gasket Filled PTFE, [S] 1-1/2" Hastelloy C22 / Gasket Graphite, [P] 1-1/2" Tantalum / Seal PTFE|PF29, [G] 2" St. steel DIN 1.4404|316 L / Gasket Filled PTFE, [R] 2" St. steel DIN 1.4404|316 L / Gasket Graphite, [H] 2" Hastelloy C22 / Gasket Filled PTFE, [S] 2" Hastelloy C22 / Gasket Graphite, [P] 2" Tantalum / Seal PTFE|PF29, [G] 3" St. steel DIN 1.4404|316 L / Gasket Filled PTFE, [R] 3" St. steel DIN 1.4404|316 L / Gasket Graphite, [H] 3" Hastelloy C22 / Gasket Filled PTFE, [S] 3" Hastelloy C22 / Gasket Graphite, [P] 3" Tantalum / Seal PTFE|PF29, [G] 4" St. steel DIN 1.4404|316 L / Gasket Filled PTFE, [R] 4" St. steel DIN 1.4404|316 L / Gasket Graphite, [H] 4" Hastelloy C22 / Gasket Filled PTFE, [S] 4" Hastelloy C22 / Gasket Graphite, [P] 4" Tantalum / Seal PTFE|PF29
Electrodes [0] Cermet - Platinum, [7] Cermet - Platinum, [0] Platinum
Protection Class [0] IP66/67, [2] IP68 Factory
Cable Length [00] Compact - None, [00] 5m|15ft DS Signal + LIYCY Coil Power Cable, [01] 10m|30ft DS Signal + LIYCY Coil Power Cable, [02] 15m|45ft DS Signal + LIYCY Coil Power Cable, [03] 20m|60ft DS Signal + LIYCY Coil Power Cable, [04] 25m|75ft DS Signal + LIYCY Coil Power Cable, [05] 30m|90ft DS Signal + LIYCY Coil Power Cable, [06] 40m|120ft DS Signal + LIYCY Coil Power Cable, [07] 50m|150ft DS Signal + LIYCY Coil Power Cable, [08] 100m|300ft DS Signal + LIYCY Coil Power Cable, [00] 5m|15ft DS Signal, [01] 10m|30ft DS Signal, [02] 15m|45ft DS Signal, [03] 20m|60ft DS Signal, [04] 25m|75ft DS Signal, [05] 30m|90ft DS Signal, [06] 40m|120ft DS Signal, [07] 50m|150ft DS Signal, [08] 100m|300ft DS Signal
Calibration [00000000] Standard, [20000000] Standard + 316|1.4401 Tagplate (120 x 46mm), [30000000] Standard + 316|1.4401 Tagplate (67 x 25mm), [A0000000] Custody Transfer, [C0000000] Custody Transfer + 316|1.4401 Tagplate (120 x 46mm), [D0000000] Custody Transfer + 316|1.4401 Tagplate (67 x 25mm), [H0000000] 3 points with Water acc. ISO/IEC 17025 2
